AX-Series Motion Controller Instructions Manual Chapter 2
92

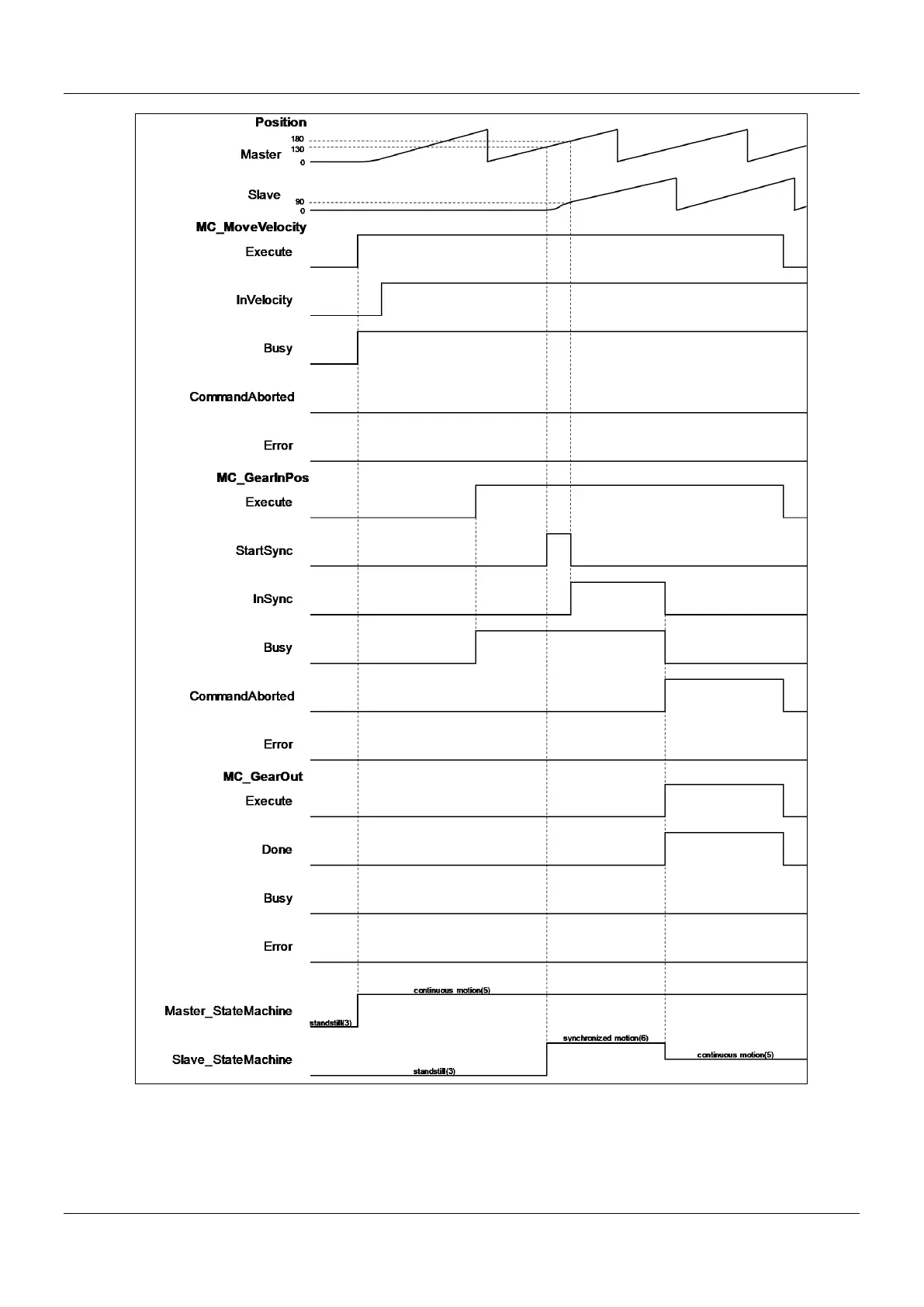

 When Execute of MC_MoveVelocity turns to True, the master axis starts to move.
 When Execute of MC_GearInPos turns to True, it’s waiting for master axis to reach StartSync position.
 When StartSync position is reached, OutputsStartSync of MC_GearInPos turns to True. At the same time, a motion
curve is planned for slave axis to move, which the axis will enter Synchronized Motion state.

Delta AX Series Specifications

General

Input Voltage	24 VDC
Expansion Modules	Up to 8 modules
Series	AX
Operating Temperature	0°C to 55°C
CPU	32-bit
Communication Ports	RS-232, RS-485, Ethernet
Type	Programmable Logic Controller (PLC)
Programming Language	Ladder Diagram
I/O Capacity	Up to 256 I/O points
