OperationModel 2500 78

7 Gently push down the shafts one at a time until the paddle blade touches the the intrinsic

disc.

8 Lock each shaft collar using 5/64 inch hex wrench. Do not over-tighten the set screws on

the shaft collars and avoid putting any weight on the drive head when performing this

step.

9 Fully raise the drive head and turn the Easy Drive Lift knob to lock position. Position the

height setting to Paddle with the Quick Height Adjustment block. See figure below for

reference.

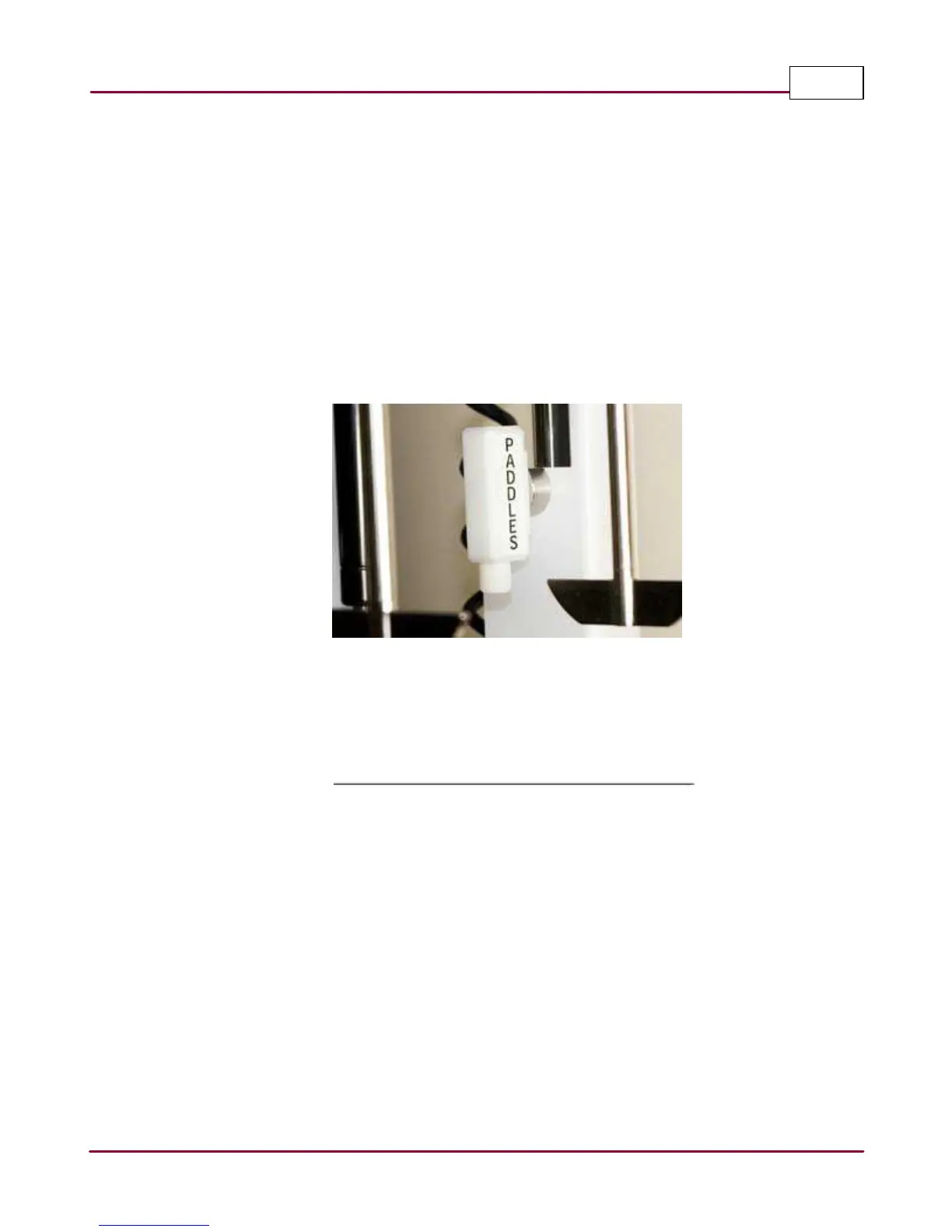

Height adjustment block position for intrinsic

10 Lower the drive head and turn the knob to lock position. The distance between the

intrinsic disc and the paddle is set and maintained during the test.
