Overview
18 Instructions for use Carina SW 3.2n

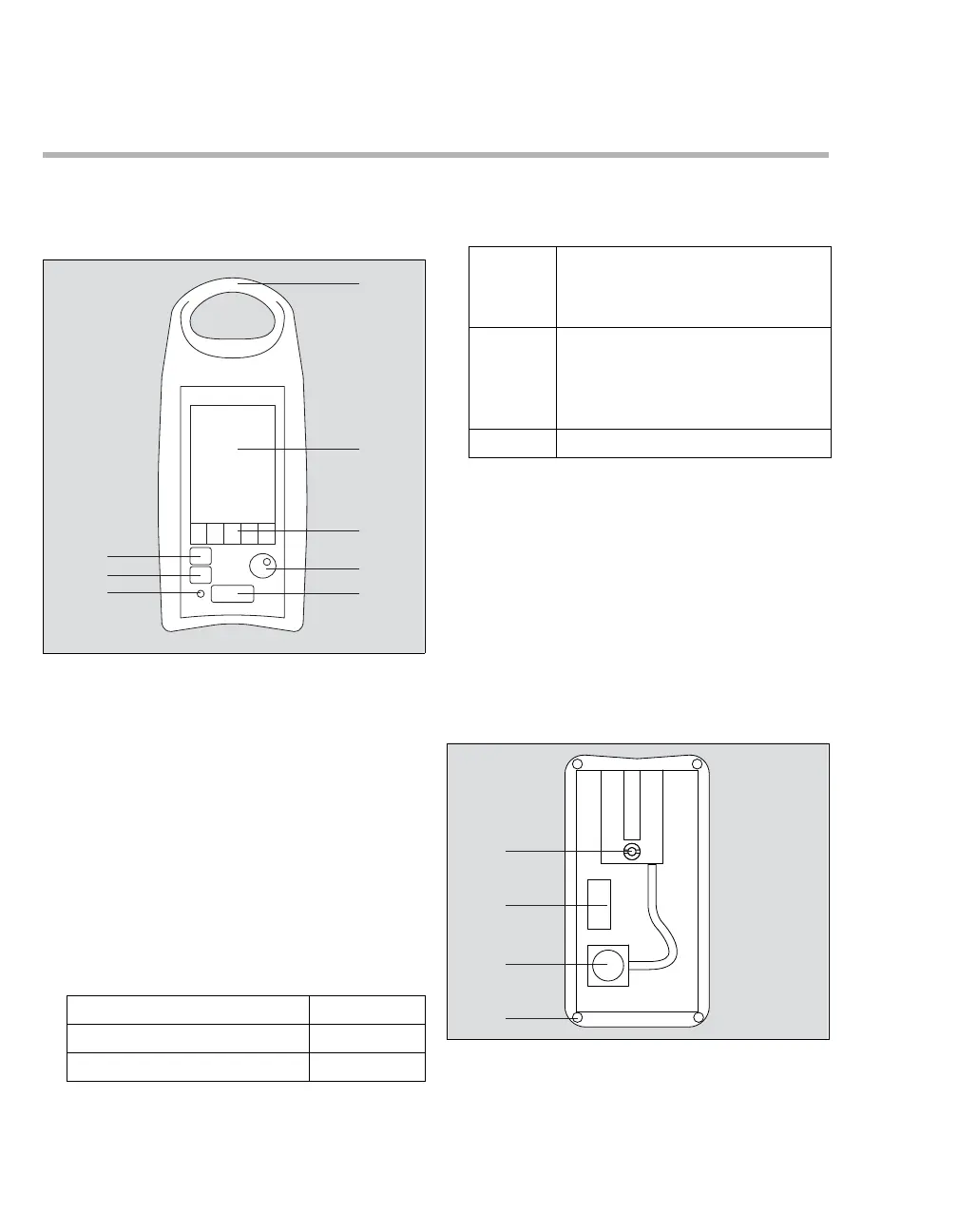

Carina basic device
Top
A Handle
B Screen for displaying application-specific infor-
mation for ventilation
C Keys for selecting functions and ventilation pa-
rameters
D Rotary knob for setting and confirming functions
and parameters
E Audio paused 2 min. key
– To suppress the acoustic alarm signal for a
maximum of 2 minutes
– To suppress alarm generation by the nurse
call for a maximum of 2 minutes
– To indicate the alarm priority (alarm LED)
F LED for displaying the power supply
G Start/Standby key for switching between
standby and ventilation
H Select Menu key for opening the menus:
– Ventilation settings
– Alarms
– Measured values
– Configuration
– Locking
Bottom
I Switch for selecting breathing circuit with
leakage valve or breathing circuit with expira-
tory valve, protected by sliding cover
000
Alarm LED flashes red Warning
Alarm LED flashes yellow Caution
Alarm LED lights yellow Note
LED is
green
External power supply (mains or
external battery)
The internal battery is charged.
LED
flashes
green
External power supply (mains or
external battery)
The internal battery is being
charged.
LED off Internal battery
001
