Dräger Carina

Assembly and preparation
36 Instructions for use Carina SW 3.2n

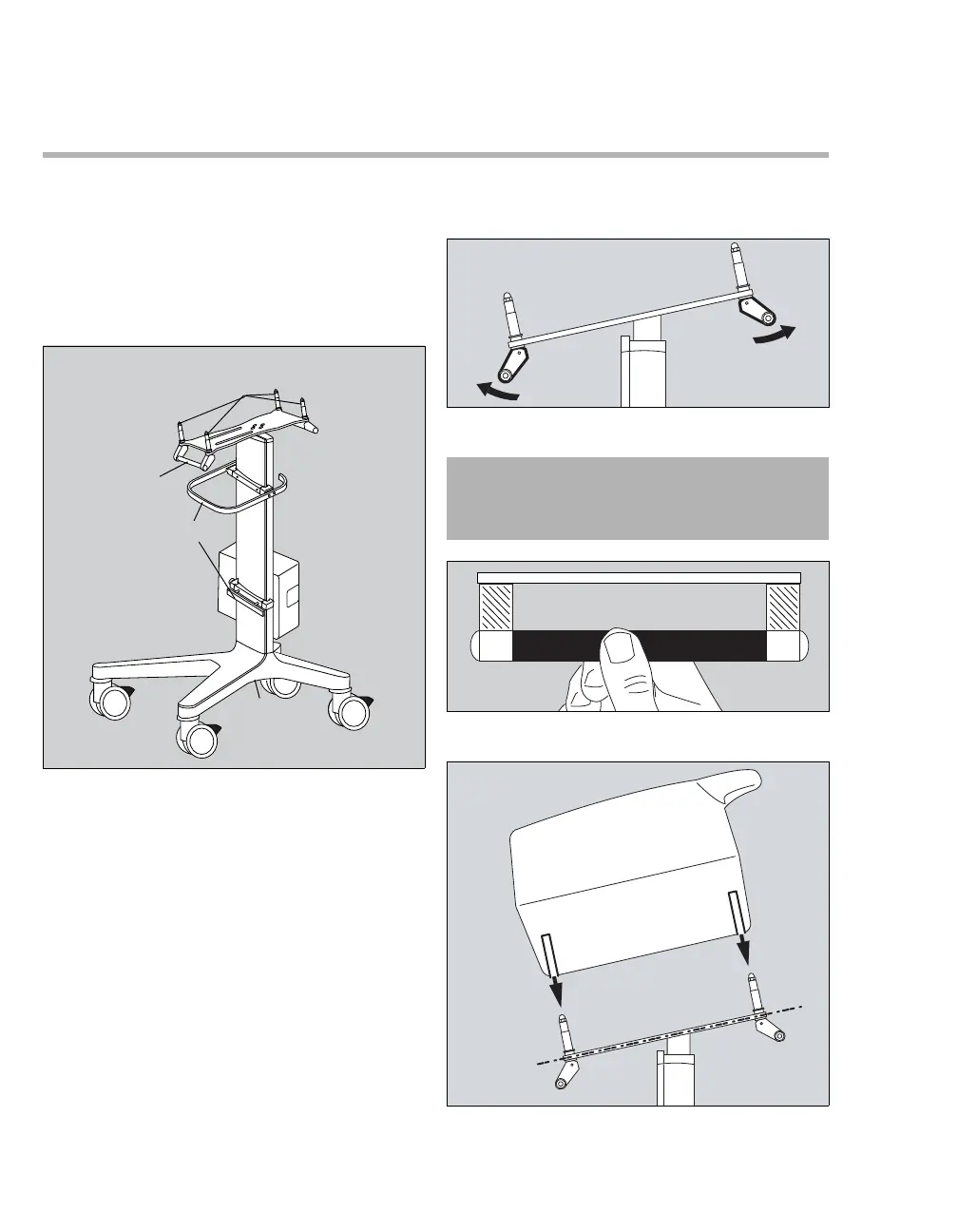

Carina with trolley
Use the Dräger trolley 1 (63 cm) or trolley 1 (78 cm)
only.
Checking the trolley's readiness for op-
eration before using it
1 The red locking lever of the column holder (A) is
locked.
2 Accessories such as the standard rail handle
(B) or universal holder with standard rail (B) are
firmly attached.
3 The locking levers of the Carina holder (C) are
closed.
4 The rubber components (D) of the device holder
are in good condition.
Positioning the device on the trolley
1 Open both locking levers (A).
2 Red areas (B) must be visible.
077
A
B
C
D
085
WARNING
Risk of jamming fingers
Touch the locking levers on the handle only.
005006
A
A
BB
C
D
D
E
E
F
