Overview
J Rating plate
K No function
L 4 holes for positioning the device on the trolley

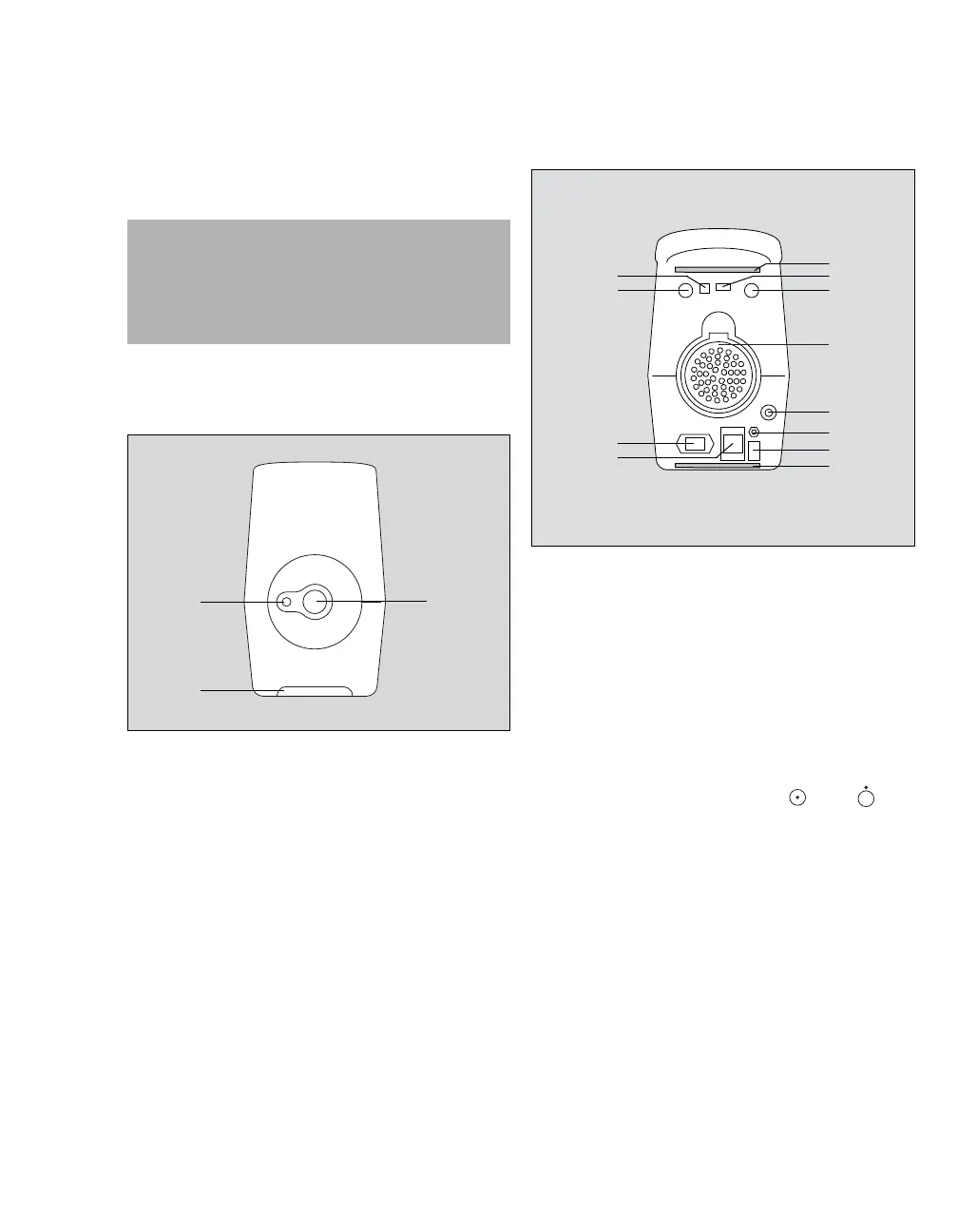

Patient connection panel (front)
A Inspiratory port (connection for breathing hose)
B Emergency air inlet and oxygen overflow
C Connection for pilot line (for breathing circuit
with expiratory valve)
Rear
D Ventilation slots
E RS232 COM port for data transfer (MEDIBUS,
MEDIBUS.X)
F No function
G Inlet filter (HEPA filter)
H HPO port for O
2 compressed gas hose
I LPO port for low pressure for connecting an ox-
ygen source, e.g., O2 concentrator
J Power switch for switching on or off
K Ventilation slots
L Connection for external battery (no longer fitted
from 2017 onwards)
M Connection for power cable
N No function
O Connection for nurse call
CAUTION
Risk of malfunctions
Only service personnel may perform the change
between a breathing circuit with leakage valve
and a breathing circuit with expiratory valve.
