Dräger Carina

Instructions for use Carina SW 3.2n 25
Overview

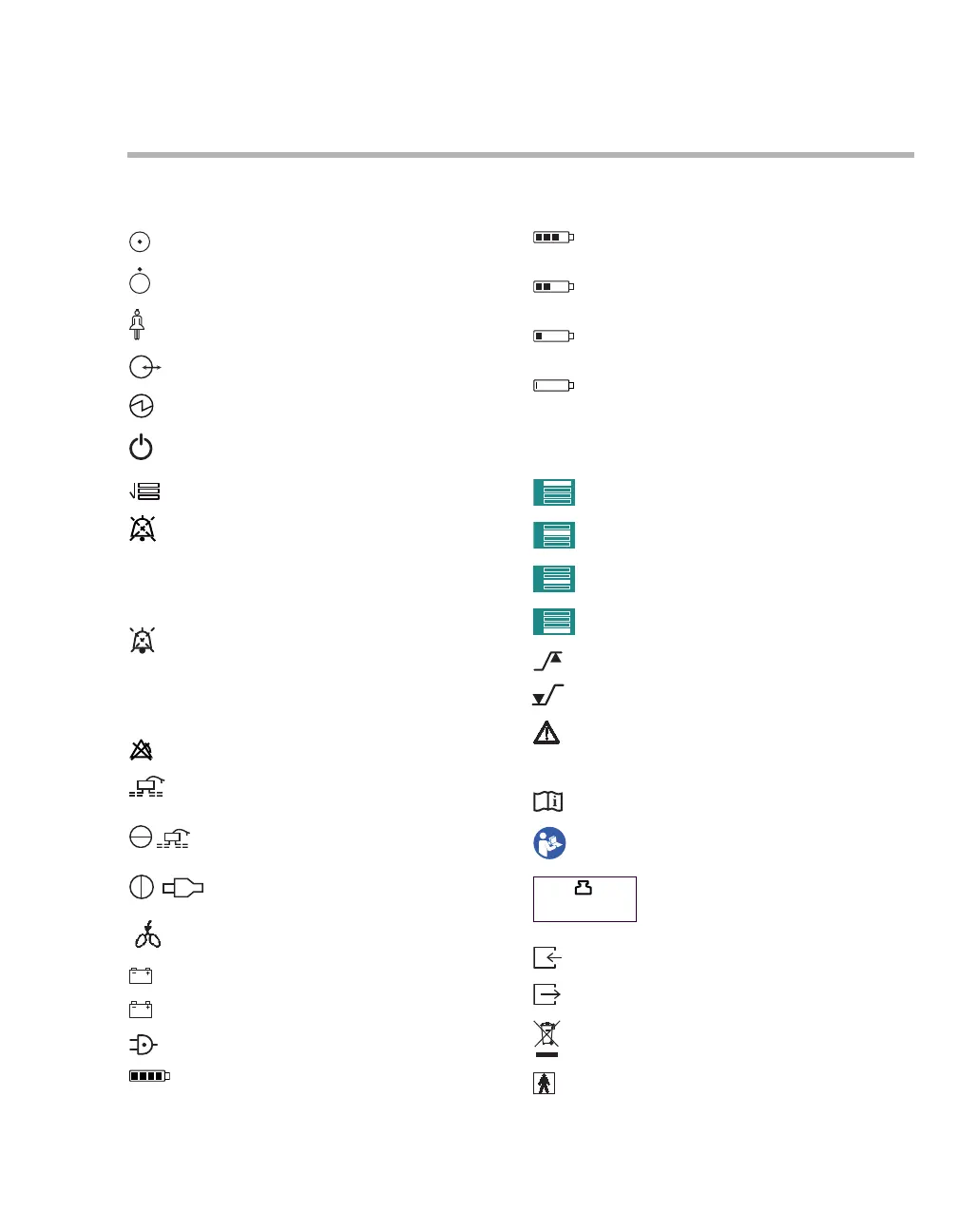

Symbols
Symbol Explanation
Device switched on
Device switched off
Nurse call
Data interface (RS232 COM port)
Power supply display
Start/Standby key
Standby mode on/off
Select Menu key
Audio paused 2 min. key
To suppress the acoustic alarm sig-
nal and alarm generation by the
nurse call for a maximum of
2 minutes
Indication of Audio paused 2 min.
Acoustic alarm signal and alarm
generation by the nurse call sup-
pressed for a maximum of
2 minutes
Alarm limit switched off
Connection for pilot line (for breath-
ing circuit with expiratory valve)
Breathing circuit with expiratory
valve
Breathing circuit with leakage valve
Inspiratory port (connection for
breathing hose)
Power supply – internal battery
Power supply – external battery
Mains power supply
Charge state of internal battery 90
to 100 %
int
ext
Charge state of internal battery 75
to 89 %
Charge state of internal battery 50
to 74 %
Charge state of internal battery 30
to 49 %
Charge state of internal battery 0 to
29 %
^
Spontaneous breathing activity by
the patient
Menu 1
Menu 2
Menu 3
Menu 4
Upper alarm limit
Lower alarm limit
Caution: Observe important safety
information and precautions in the
instructions for use.
Observe the instructions for use
Warning! Strictly follow these in-
structions for use
Nominal weight and maximum
weight (for information, see chapter
"Technical data")
Gas inlet (emergency air inlet)
Gas outlet (oxygen overflow)
Information on disposal
BF type application mode
Symbol Explanation
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
nom. 22 kg (48.5 lbs)
max. 63 kg (139 lbs)
