Dräger Carina

Instructions for use Carina SW 3.2n 53
Assembly and preparation
Using the MEDIBUS or MEDIBUS.X protocol
MEDIBUS and MEDIBUS.X are software protocols
for data transfer between Carina and other medical
devices (e.g., patient monitors) or other devices
(e.g., computers for data management systems).
Requirements for the combination of Carina and an
external device, see "Device combinations"
on page 9.
Observe software protocols
For MEDIBUS:
For MEDIBUS.X:

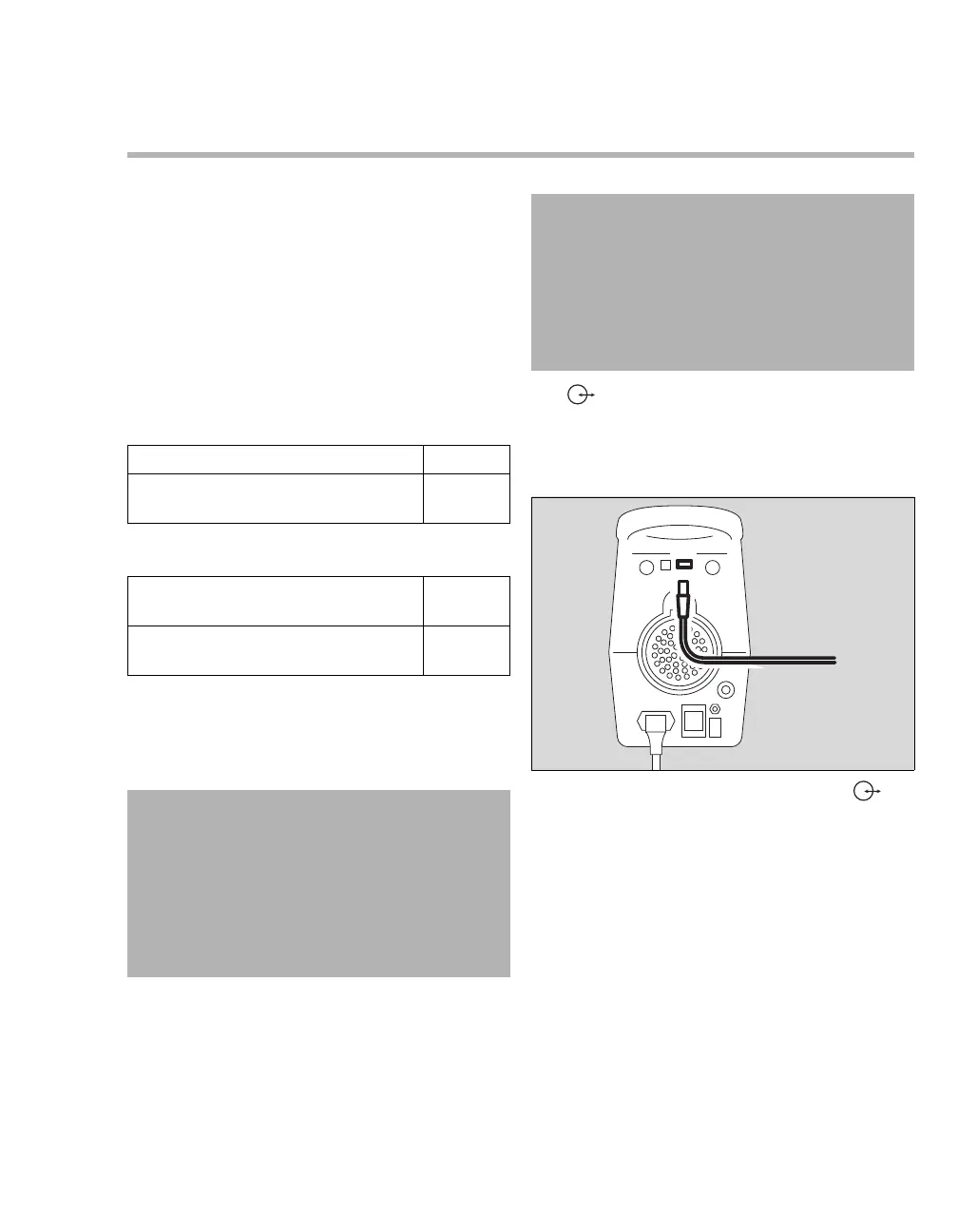

Connecting an external device for
MEDIBUS or MEDIBUS.X
The port (RS232 COM port) is intended exclu-
sively for connecting to devices with safety extra-
low voltage (SELV).
Use only "Babylink cable" 8306488 from Dräger.
 Connect the external device to the port (A).
MEDIBUS for Carina 9039037
Dräger RS 232 MEDIBUS, Protocol
Definition
9028258
MEDIBUS.X, Rules and Standards for
Implementation
9052607
MEDIBUS.X, Profile Definition for
Data Communication V1.0
9052608
WARNING
Risk of patient injury
Data transmitted over the RS232 COM port are
to be used only for information and are not in-
tended as the sole basis for diagnostic or ther-
apeutic decisions. The RS232 COM port is not
intended for use with a distributed alarm sys-
tem conforming to IEC60601-1-8.
WARNING
Risk of electric shock
If the connectors of the interface and the pa-
tient are touched simultaneously, there is a
risk of electric shock.
Do not simultaneously touch the connectors
of the interface and the patient.
020
A
