Assembly and preparation
38 Instructions for use Carina SW 3.2n

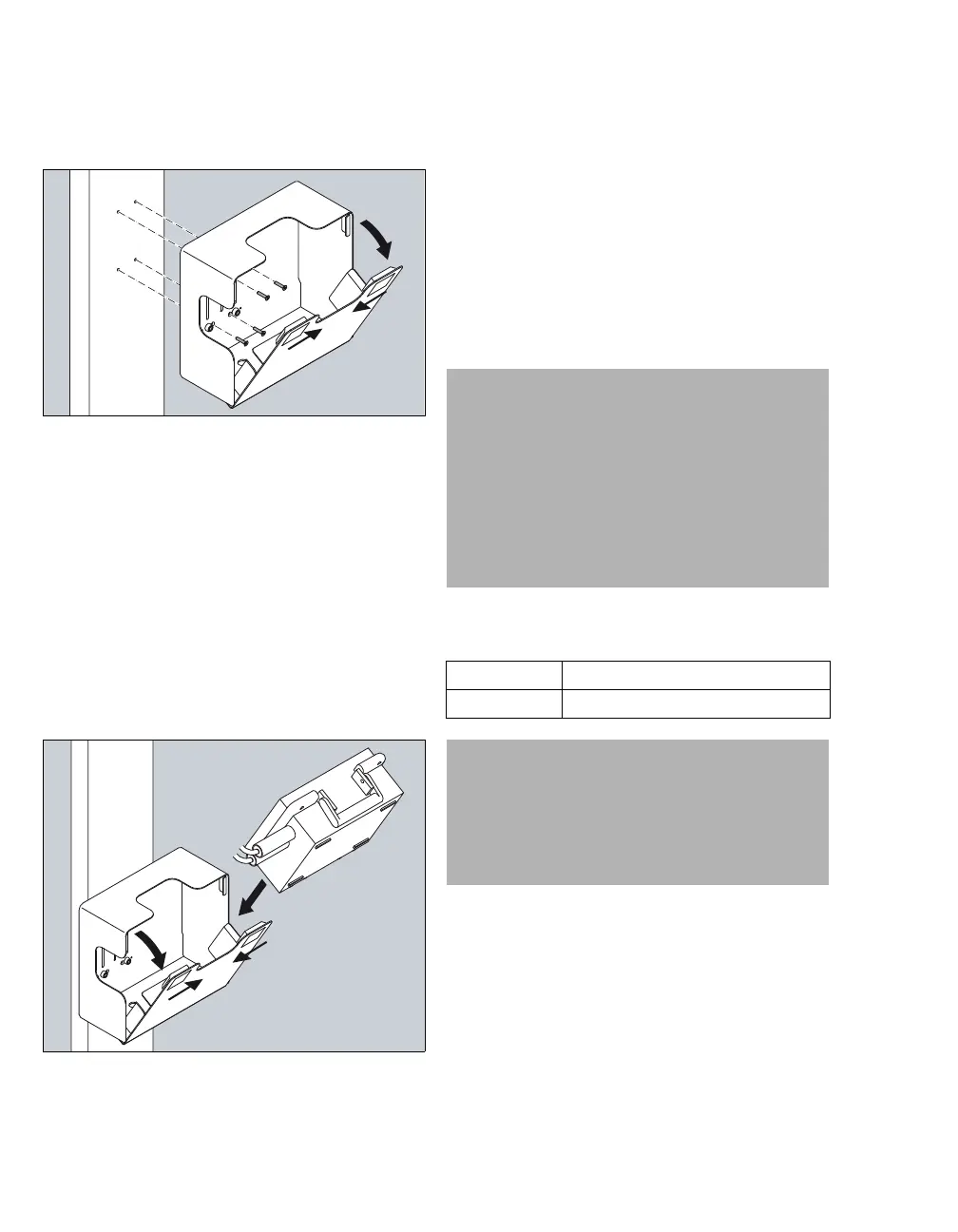

Attaching the battery holder
1 Press the locks (A) together and open the flap
(B).
2 Hold the battery holder to the holes (C) in the
trolley column. Screw the battery holder in place
with the 4 included screws.
3 Tighten all 4 screws. Use the included Allen key
for this.
4 Make sure that the battery holder is tightly fas-
tened.
Inserting the external battery
1 Press the locks (A) together and open the flap
(B).
2 Insert the external battery (C) into the battery
holder.
3 Close the flap (B).
Preparing the gas cylinder holder
Available only with the gas cylinder holder option.
Gas cylinders of the following sizes can be at-
tached:
089090
WARNING
Risk of damage to device or personal injury
If the Velcro fasteners holding the gas cylin-
ders are too short, the gas cylinders may fall
down.
The length of the Velcro fasteners must match
the circumference of the gas cylinders. If nec-
essary, have the correct Velcro fastener in-
stalled by service personnel.
Diameter 80 to 160 mm (3.15 to 6.3 in)
Length 420 to 870 mm (16.54 to 34.25 in)
WARNING
Risk of damage to gas cylinders during trans-
port
Install gas cylinders so the pressure reducers
are clear and do not project from the side of
the trolley.
