Operating concept
28 Instructions for use Carina SW 3.2n

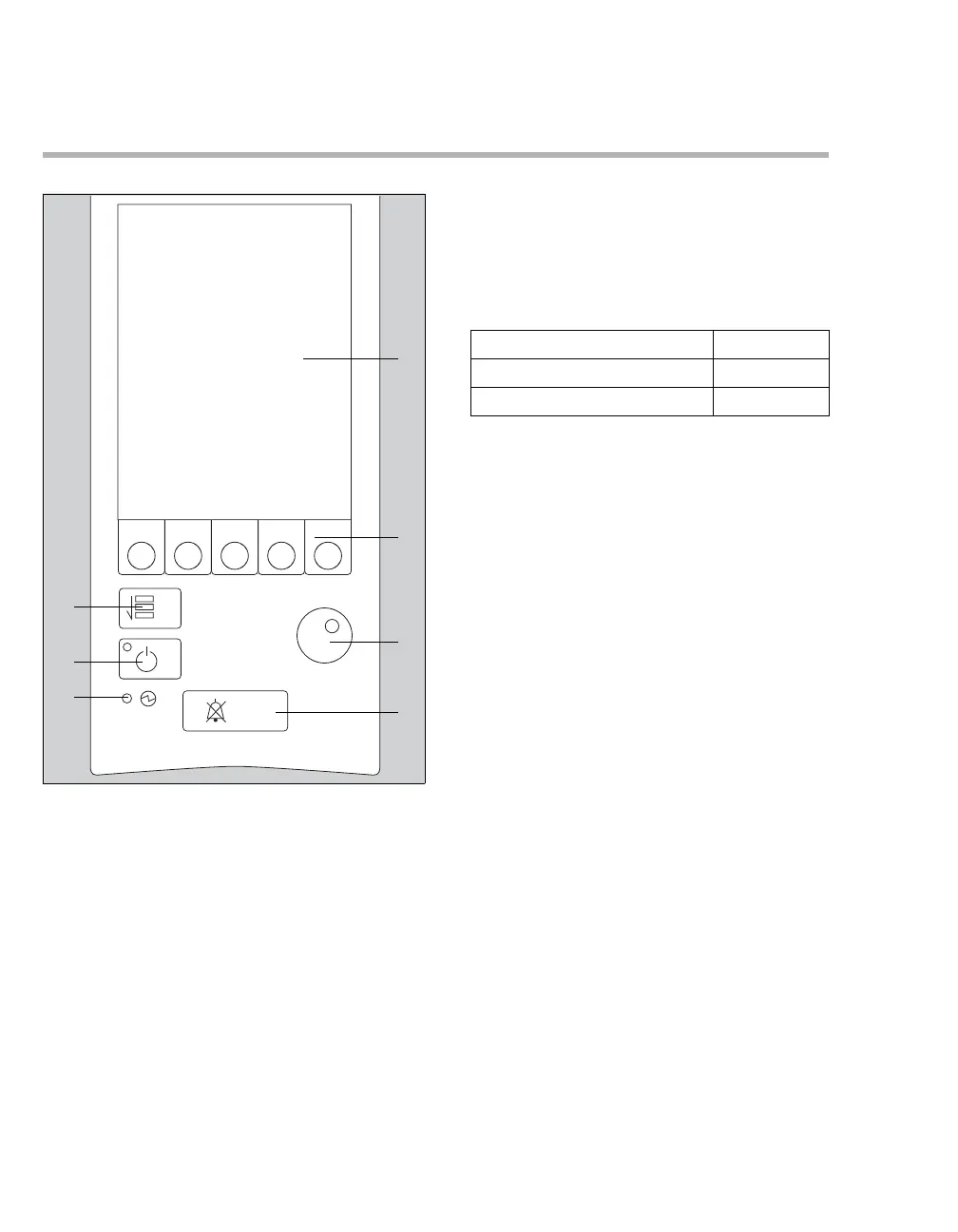

Operating and display unit
A Screen for displaying application-specific infor-
mation for ventilation
B Keys for selecting functions and ventilation pa-
rameters
Press key to open the associated function or
the associated ventilation parameter on the
screen.
C Rotary knob for setting and confirming functions
and parameters
Set: Turn the rotary knob.
Confirm: Push the rotary knob.
D Audio paused 2 min. key
To suppress the acoustic alarm signal for a
maximum of 2 minutes
To suppress alarm generation by the nurse
call for a maximum of 2 minutes
To indicate the alarm priority (alarm LED)
E LED for displaying the power supply
F Start/Standby key for switching between
standby and ventilation
The key contains a green LED, which flashes in
standby mode and remains steady while venti-
lation is active.
G Select Menu key for opening the menus:
Ventilation settings
Alarms
Measured values
Configuration
Locking
Hold time without input
If a modified setting or selection is left for more than
30 seconds without the rotary knob being pressed,
the previous status becomes active again.
076
A
B
C
D
E
F
G
Alarm LED flashes red Warning
Alarm LED flashes yellow Caution
Alarm LED lights yellow Note
