Assembly and preparation
44 Instructions for use Carina SW 3.2n
Attaching the breathing gas humidifier
Prepare the breathing gas humidifier in accordance
with the corresponding instructions for use. For the
part numbers for the breathing gas humidifier see
the separate list of accessories.

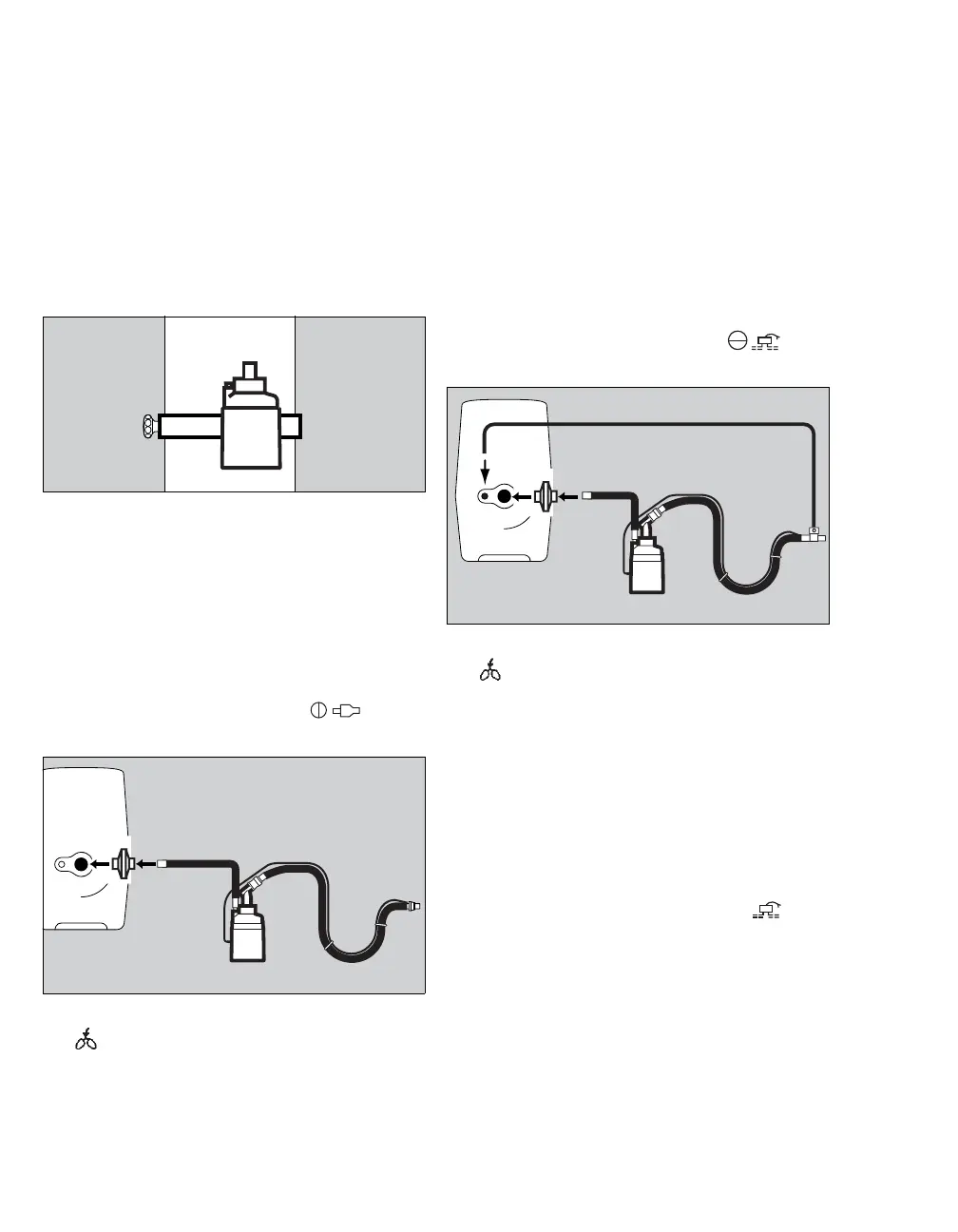

The breathing gas humidifier can be attached to the
universal holder with standard rail.
 Clamp the breathing gas humidifier to the
standard rail (A) and screw firmly into place.
Breathing gas humidifier with inspira-
tory hose heater
For breathing circuits with leakage valve
1 Set the switch to leakage valve ,
seepage42.
2 Fit the bacterial filter (A) to the inspiratory port
(B).
3 Connect the breathing hose (C) to the bacterial
filter and the breathing gas humidifier (D).
4 Connect the breathing hose (E) to the breathing
gas humidifier (D).
5 If necessary, connect the thermometer (F). Ob-
serve the instructions for use of the humidifier.
6 Connect the leakage valve (G). Observe the di-
rection.
For breathing circuits with expiratory valve
1 Set the switch to expiratory valve ,
see page 42.
2 Fit the bacterial filter (A) to the inspiratory port
(B).
3 Connect the breathing hose (C) to the bacterial
filter and the breathing gas humidifier (D).
4 Connect the breathing hose (E) to the breathing
gas humidifier (D).
5 If necessary, connect the thermometer (F). Ob-
serve the instructions for use of the humidifier.
6 Connect the expiratory valve (G). Observe the
direction.
7 Connect the pilot line (H) to the plug (I).
