Dräger Fabius Tiro User Manual

Instructions for use Fabius Tiro SW 3.n 21
Overview

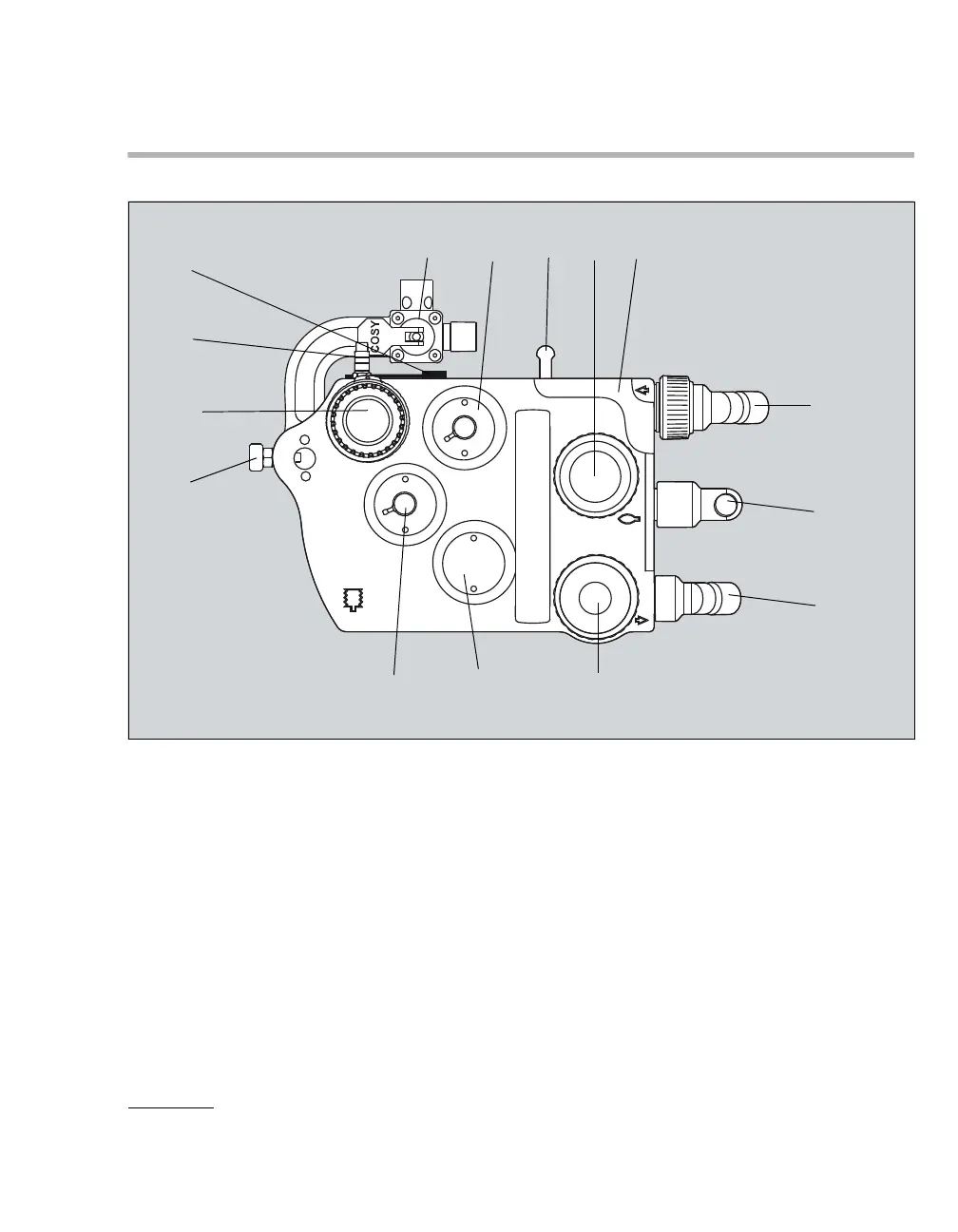

Compact breathing system COSY (top view)
A External fresh-gas outlet
*
B Connection for PEEP/PMAX valve
C Breathing bag holder
D Expiratory valve
E Flow-sensor guard or COSY guard (not
illustrated)
F Expiratory port
G Connection for breathing bag
H Inspiratory port
I Inspiratory valve
J Fresh gas decoupling valve
K Connection for APL bypass valve
L Mount with locking pin
M APL valve with selection for manual ventilation
(Man) and spontaneous breathing (Spont)
N Connection for sample line
O Holder for sample line (optional)
20983
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
*optional
