Instructions for use Fabius Tiro SW 3.n 45
Operating concept
Screen display

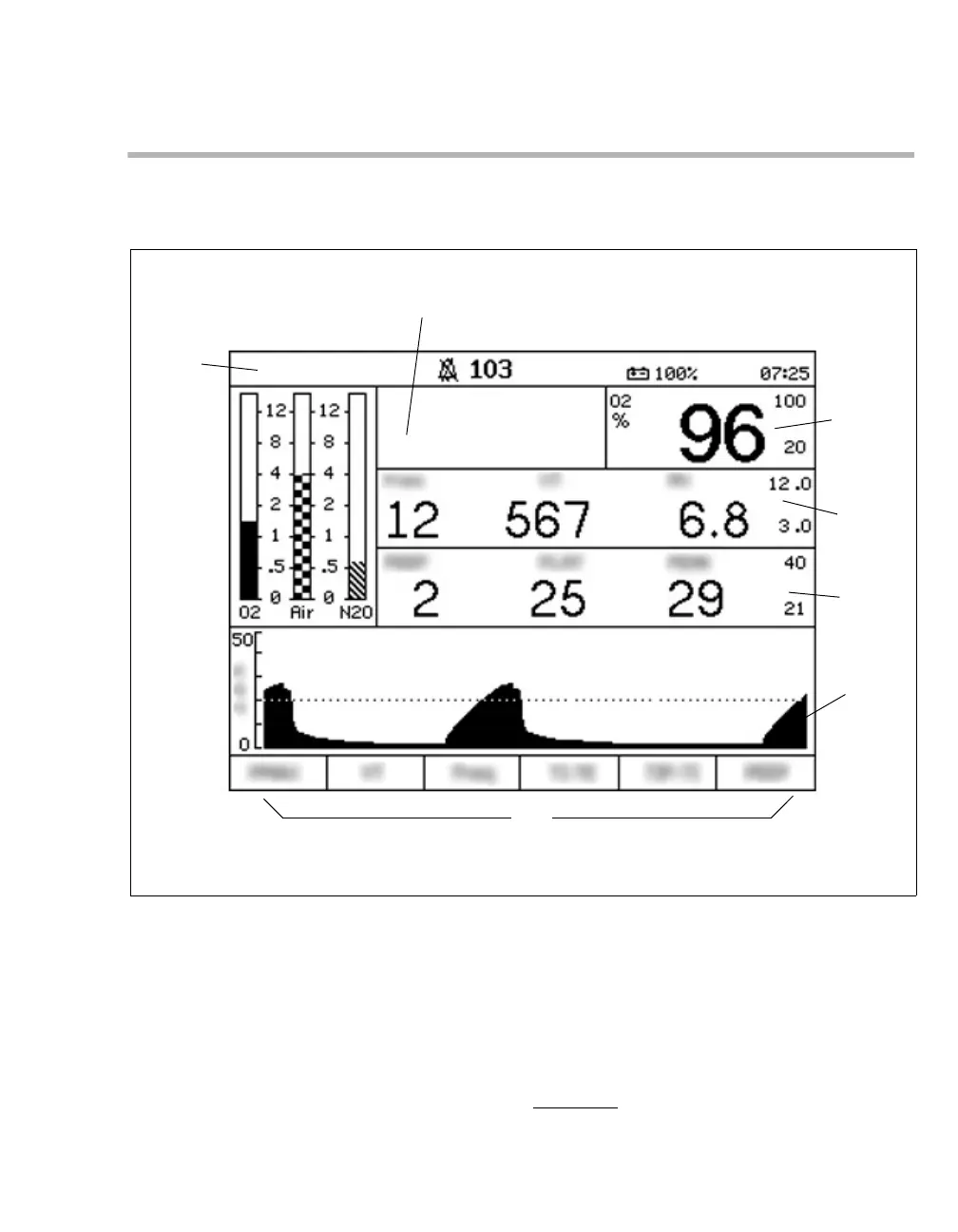

The main screen displays the most important
information regarding anesthesia and ventilation.
A Status bar
The following information is displayed in the status
bar:
– Current ventilation mode
– Remaining time of alarm tone suppression
– Status of the desflurane compensation
– Remaining battery charge
– Current time
B Alarm message field
Display of maximum 4 alarm messages
*
with
highest priority
C O
2 monitoring
Display of the inspiratory oxygen concentration in
percent (%) as well as the upper and lower alarm
limits
21572
A
B
C
D
E
F
G
H
* for Japan and China maximum 3 alarm messages
