Dräger Fabius Tiro User Manual

Overview
24 Instructions for use Fabius Tiro SW 3.n

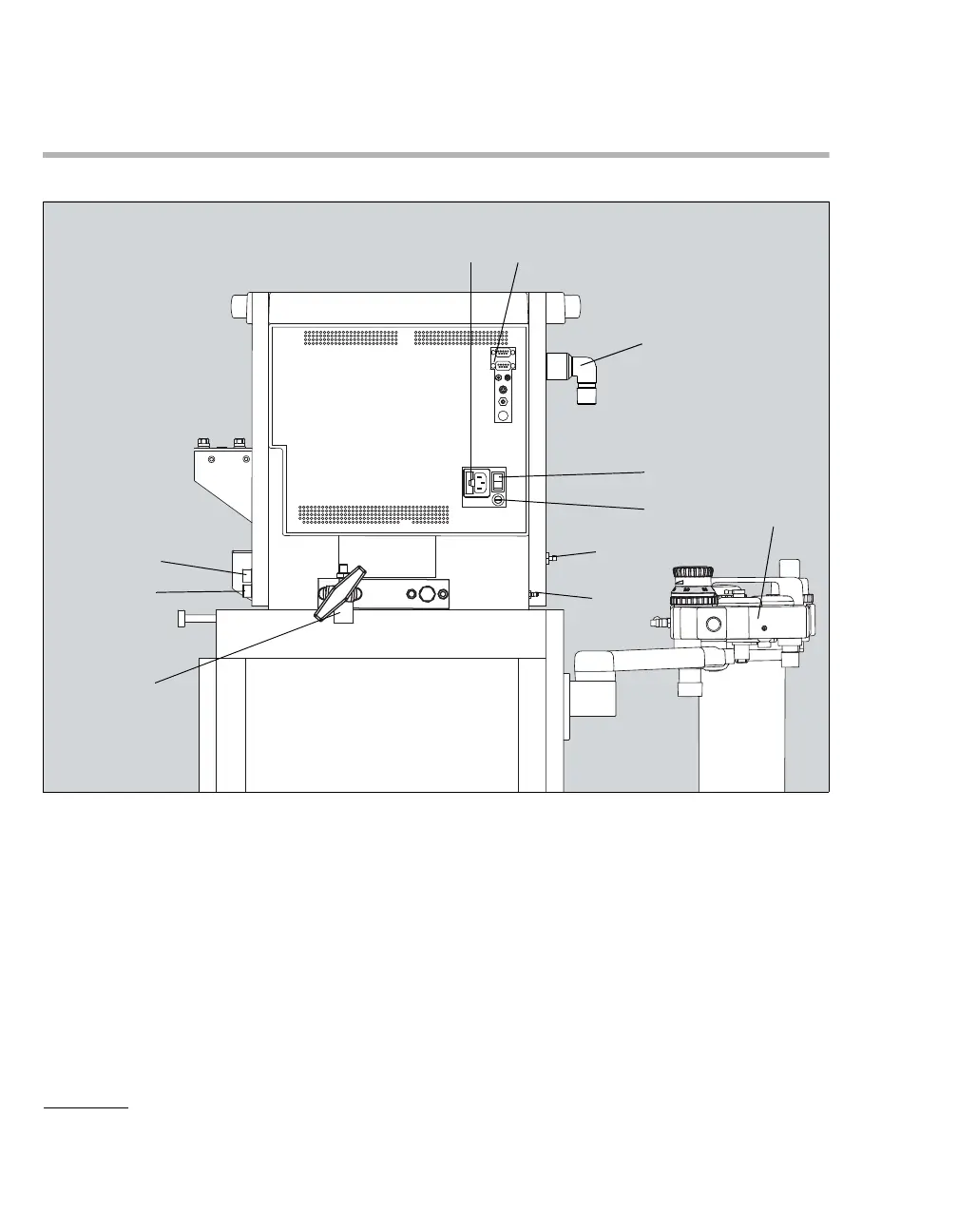

Rear view (pin-index connection)
A Power inlet
B Interface panel
C Connection for ventilator hose
D On/Off switch
E Fuse
F Fresh-gas outlet
G Potential equalization pin
H Compact breathing system (COSY)
I Pin-index connection
*
J Connection for compressed gas hoses of the
gas cylinders
K 2 open connections for central supply hoses, 1
sealed connection without function
20985
AB
C
D
E
F
G
H
I
J
K
*optional
