Dräger Fabius Tiro - Interface Panel

Overview
26 Instructions for use Fabius Tiro SW 3.n

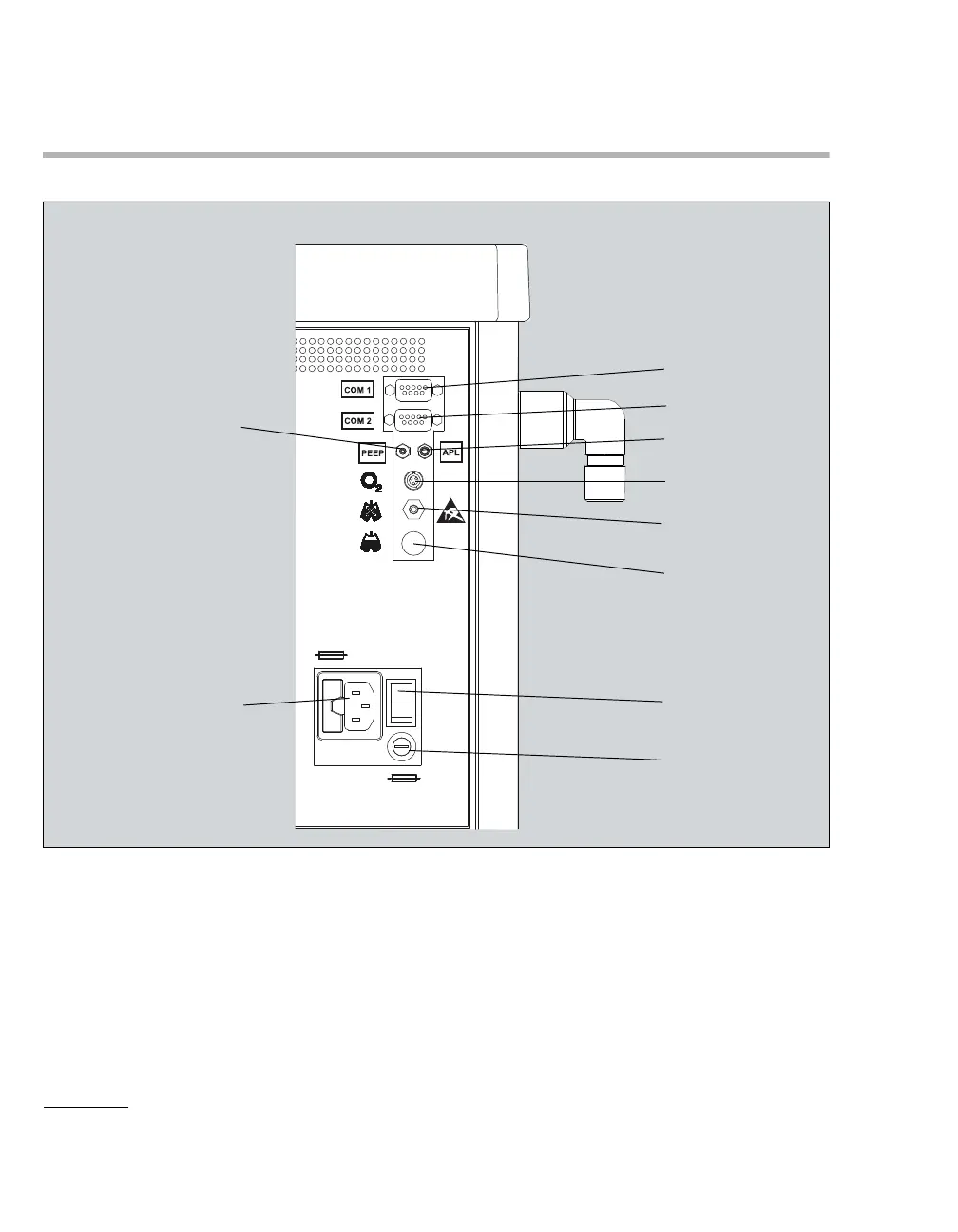

Interface panel
A COM 1 port
B COM 2 port
*
C Connection for APL hose
D Socket for O
2 sensor
E Socket for airway pressure sensor
F Socket for flow sensor
G On/Off switch
H Fuse
I Power inlet
J Connection for PEEP hose
20991
A
B
C
D
E
F
G
H
I
J
*optional
