Assembly and preparation
78 Instructions for use Fabius Tiro SW 3.n

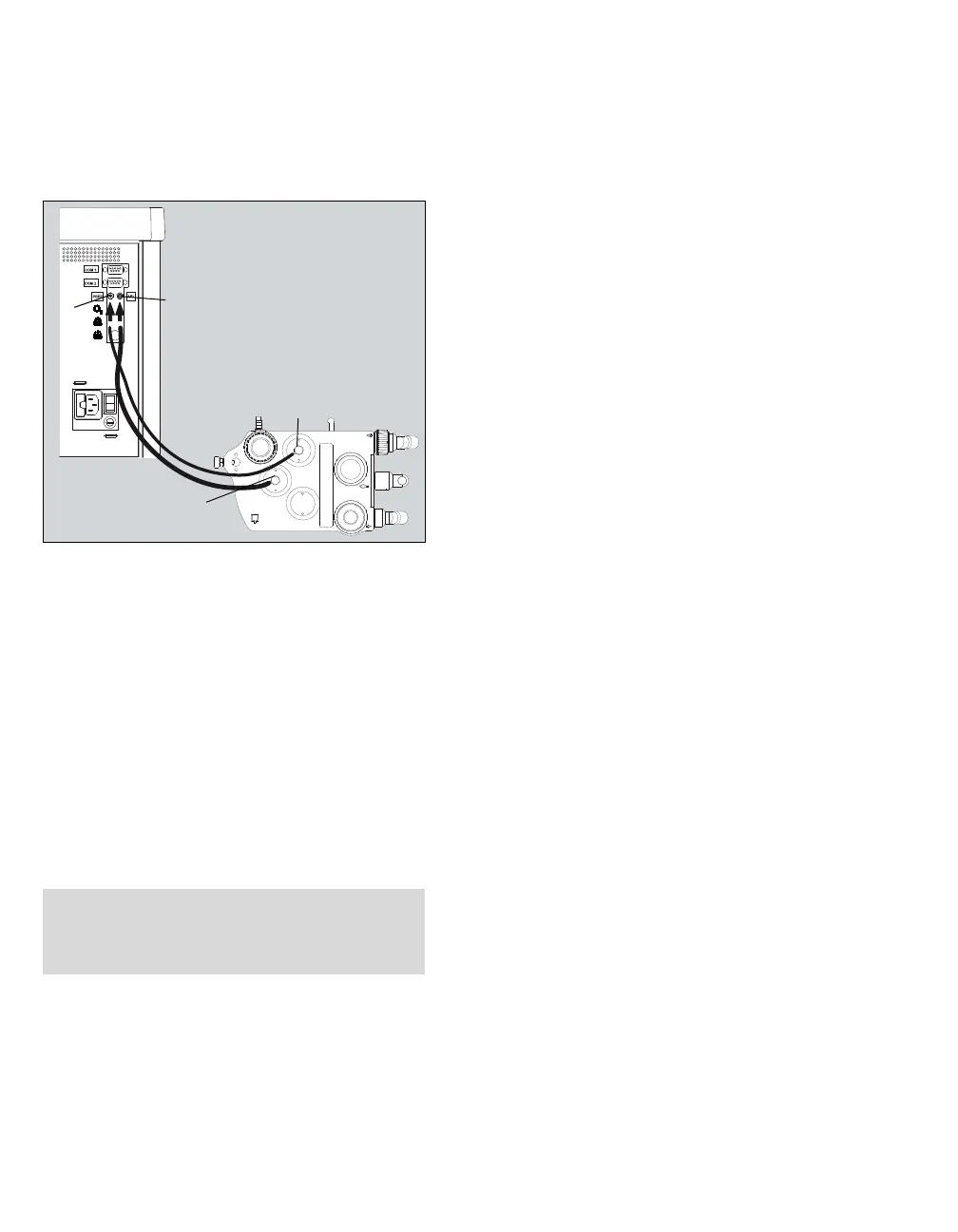

Connecting the APL bypass hose and
PEEP/P
MAX hose
1 Connect the APL bypass hose to the
corresponding connection port of the APL
bypass valve (A) on the compact breathing
system.
2 Connect the other end of the hose to the
connection marked with APL (C) on the rear of
the device.
3 Connect the PEEP/P
MAX hose to the
corresponding connection port of the
PEEP/P
MAX valve (D) on the compact
breathing system.
4 Connect the other end of the hose on the
connection marked with PEEP (B) to the rear of
the device.
20986
NOTE
The APL bypass hose is thicker than the
PEEP/P
MAX hose.
A
B
C
D
