Dräger Fabius Tiro User Manual

Instructions for use Fabius Tiro SW 3.n 61
Assembly and preparation
Ensuring the gas supply
Connecting the anesthetic gas receiving
system (optional)
The anesthetic gas receiving system, in
combination with Dräger anesthesia workstations
and their modules, meets the requirements of
general safety standards.
The anesthetic gas receiving system does not
work as a stand-alone system, but is used as one
of 3 components of an anesthetic gas scavenging
system (AGSS).

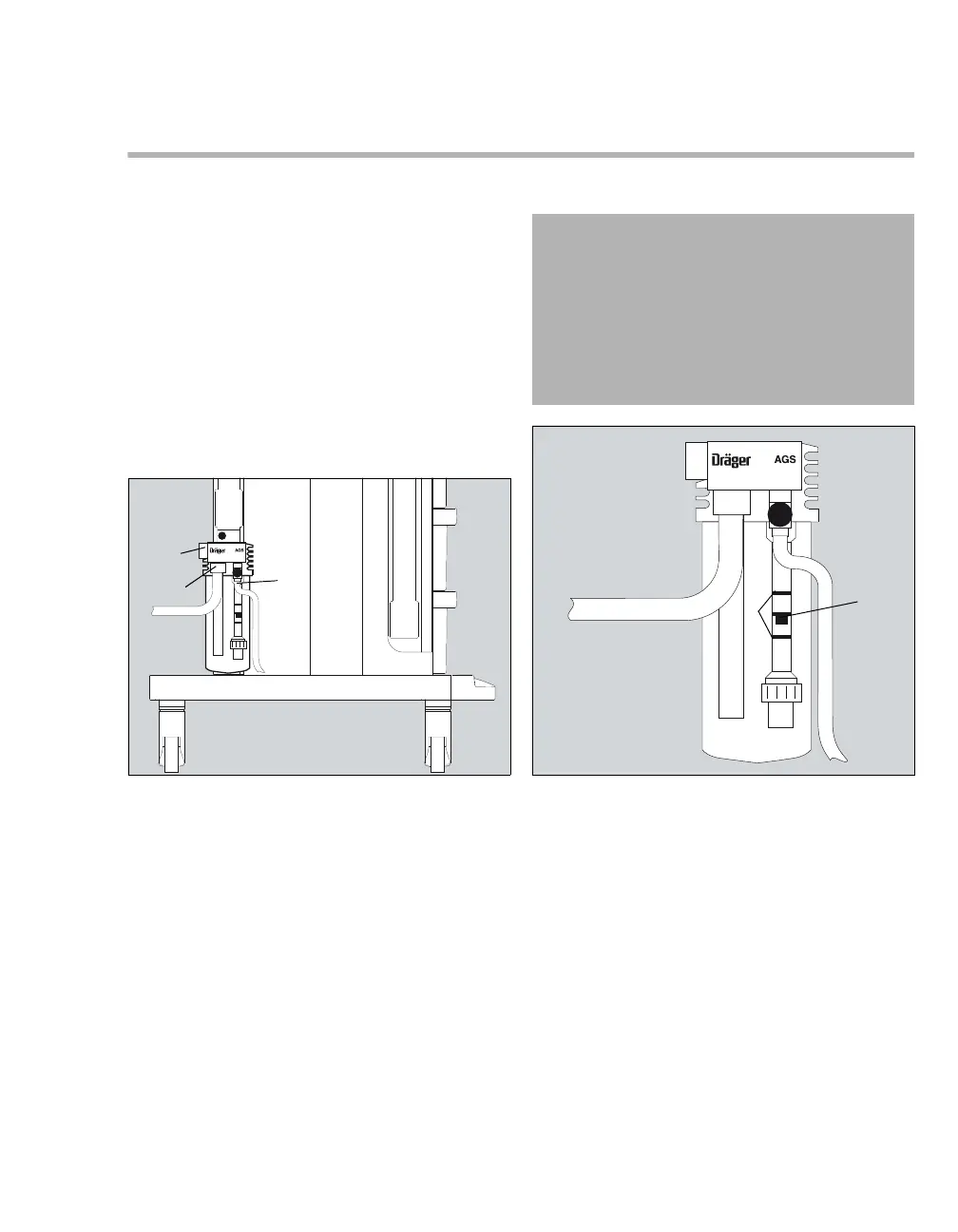

1 Fit the receiving system, with the slots resting
on the corresponding pegs, on Fabius and
slide down.
2 Use the screw plug (A) to seal the connection
not in use.
3 Slide the transfer hose (B) to the provided port.
4 Connect the other end of the transfer hose to
the exhaust port on the bottom of the COSY.
5 Connect the scavenging hose (C) to the
corresponding port of the receiving system.
6 Connect the probe of the scavenging hose (C)
to the terminal unit of the anesthetic gas
scavenging system. Observe the associated
instructions for use of the AGSS terminal unit.
The top edge of the float (D) in the flow tube must
move between the two marks (E).
More information can be found in the instructions
for use (9038579) of the anesthetic gas receiving
system.
20981
A
B
C
WARNING
Risk of patient injury
If the side openings of the anesthetic gas
receiving system are blocked, this can lead to
a lack of fresh gas in the breathing system.
Make sure that the side openings of the
receiving system are not blocked.
20974
D
E
