Assembly and preparation
80 Instructions for use Fabius Tiro SW 3.n

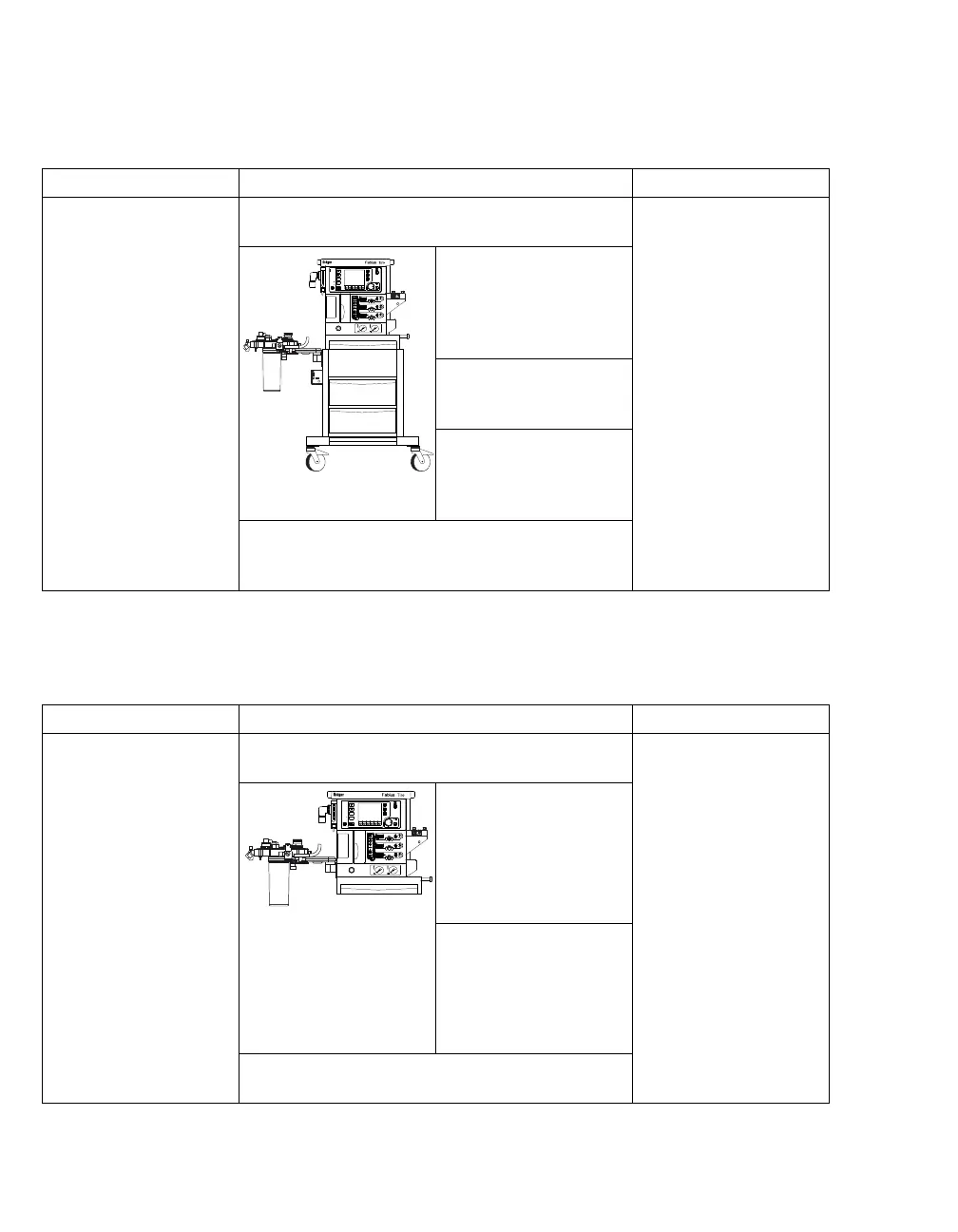

Trolley version
Wall-mounted version and ceiling-
mounted version
Left side Top of device Right side
– Maximum permissi-
ble weight of the
accessories is 15 kg
(33 lbs).
– A max. of 10 kg
(22 lbs) may be
attached in the rear
top GCX rail at a dis-
tance of max. 40 cm
(16") at the top posi-
tion.
– The remaining
weight must be
attached with a dis-
tance of max. 10 cm
(4").
Maximum permissible weight of the accessories on
the Fabius monitor housing is 18 kg (40 lbs).
– Maximum permissi-
ble weight of the
accessories is 15 kg
(33 lbs).
– A max. of 10 kg
(22 lbs) may be
attached in the rear
top GCX rail at a dis-
tance of max. 40 cm
(16") at the top posi-
tion.
– The remaining
weight must be
attached with a dis-
tance of max. 10 cm
(4").
A maximum of 10 kg (22
lbs) can be set on the
optionally available
Fabius pull-out writing
tray.
The standard rail may be
loaded with max. 5 kg
(11 lbs)
The individual drawers in
the trolley may be loaded
with maximum 6.8 kg (15
lbs).
On the rear of the device, a maximum of 35 kg
(77 lbs) (gas cylinders, including holder and acces-
sories) can be attached.
Left side Top of device Right side
– Maximum permissi-
ble weight of the
accessories is 15 kg
(33 lbs).
– A max. of 10 kg
(22 lbs) may be
attached in the rear
top GCX rail at a dis-
tance of max. 40 cm
(16") at the top posi-
tion.
– The remaining
weight must be
attached with a dis-
tance of max. 10 cm
(4").
Maximum permissible weight of the accessories on
the Fabius monitor housing is 10 kg (22 lbs).
– Maximum permissi-
ble weight of the
accessories is 15 kg
(33 lbs).
– A max. of 10 kg
(22 lbs) may be
attached in the rear
top GCX rail at a dis-
tance of max. 40 cm
(16") at the top posi-
tion.
– The remaining
weight must be
attached with a dis-
tance of max. 10 cm
(4").
A maximum of 10 kg (22
lbs) can be set on the
optionally available
Fabius pull-out writing
tray.
The standard rail may be
loaded with max. 5 kg
(11 lbs)
Other accessory parts must be fastened on wall
rails if necessary.
