4.3 Setting the ejection equipment
The ejection equipment can be moved horizontally and vertically.
12

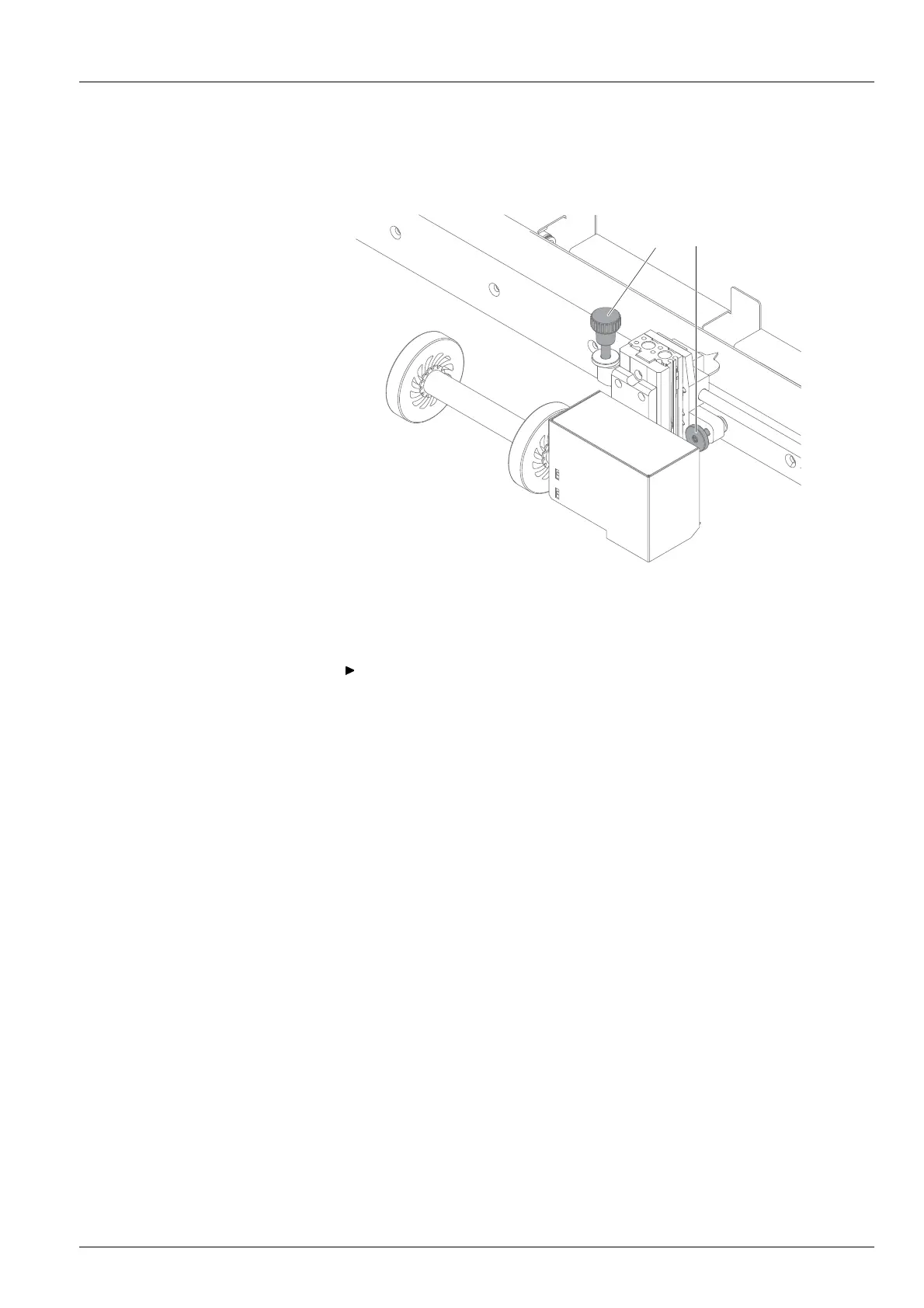

Fig. 23 Setting the ejection equipment
The horizontal position is fixed with fixing sc
rew (2), the vertical position with
fixing screw (1).
Carry out the following steps to set the ejection equipment:
– Loosen the corresponding fixing screw.
– Move the ejector equipment to the desired position.
– Tighten the fixing screw.
