Durst Rho 1012 - Adjusting the Straight Impacter; Adjusting the Limiting Plates

Rho 1012/1030 EOperation

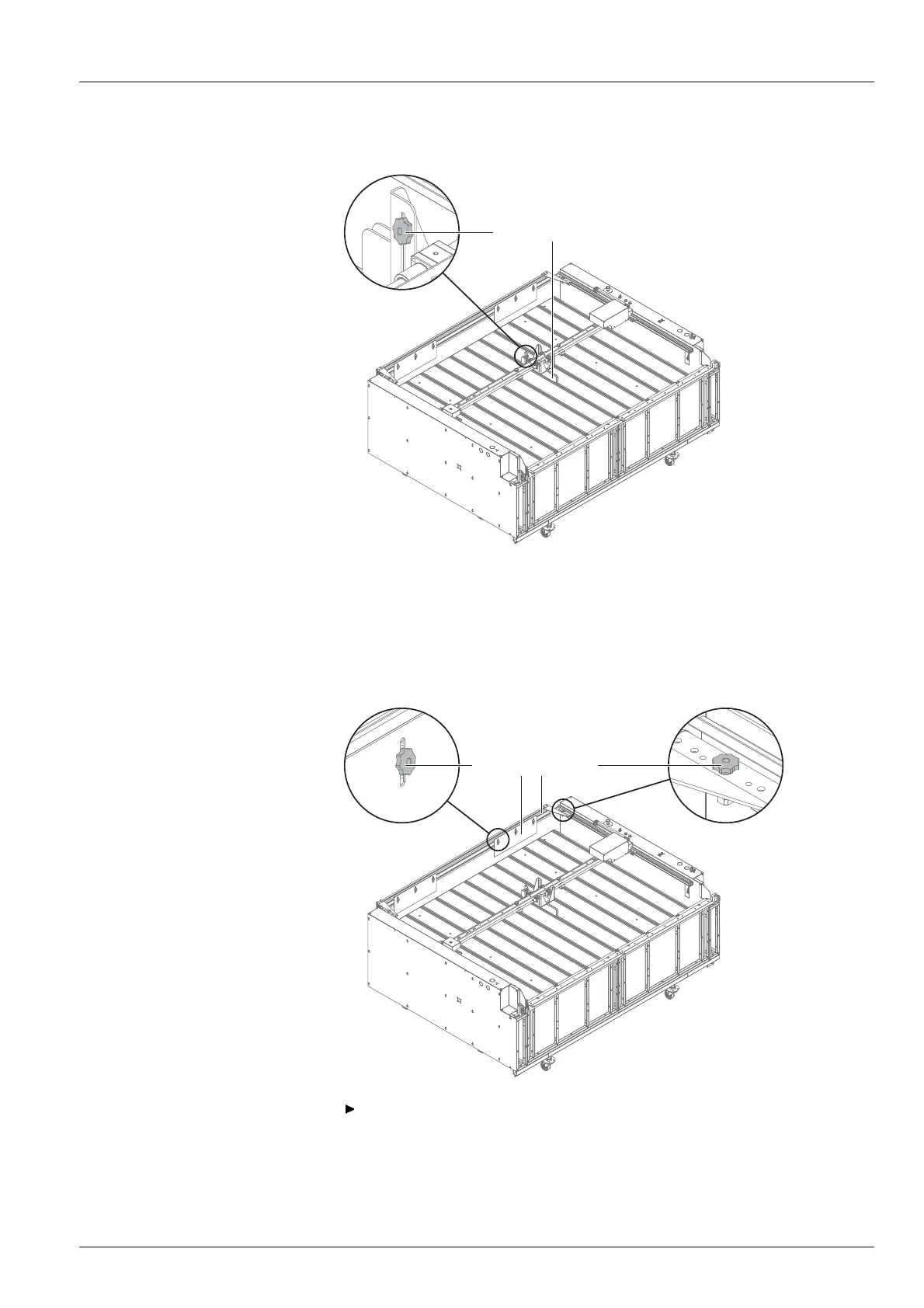

9.3 Adjusting the straight impacter
1 2
1. Loosen the fixing sc rew (1).
2. Adjust the desired position of the straight impacter (2) on the axis.
3. Tighten the fixing screw.
9.4 Adjusting the limiting plates
1 2 3 4
Adjust the horizontal position as follows:
– Loosen the fix ing screw (4).
– Adjust the position of the bar (3) to the length of the plate media.
– Tighten the fixing screw.
