Rho 1012/1030 EOperation
8.2 Docking the XY Cutter
High weight of the XY Cutter!
Danger of crushing during docking
Only dock the XY Cutter with two persons.
Do not reach into the area of the printer guide while pushing.
1. Set the key switch at the printer to 2 (device-change position).

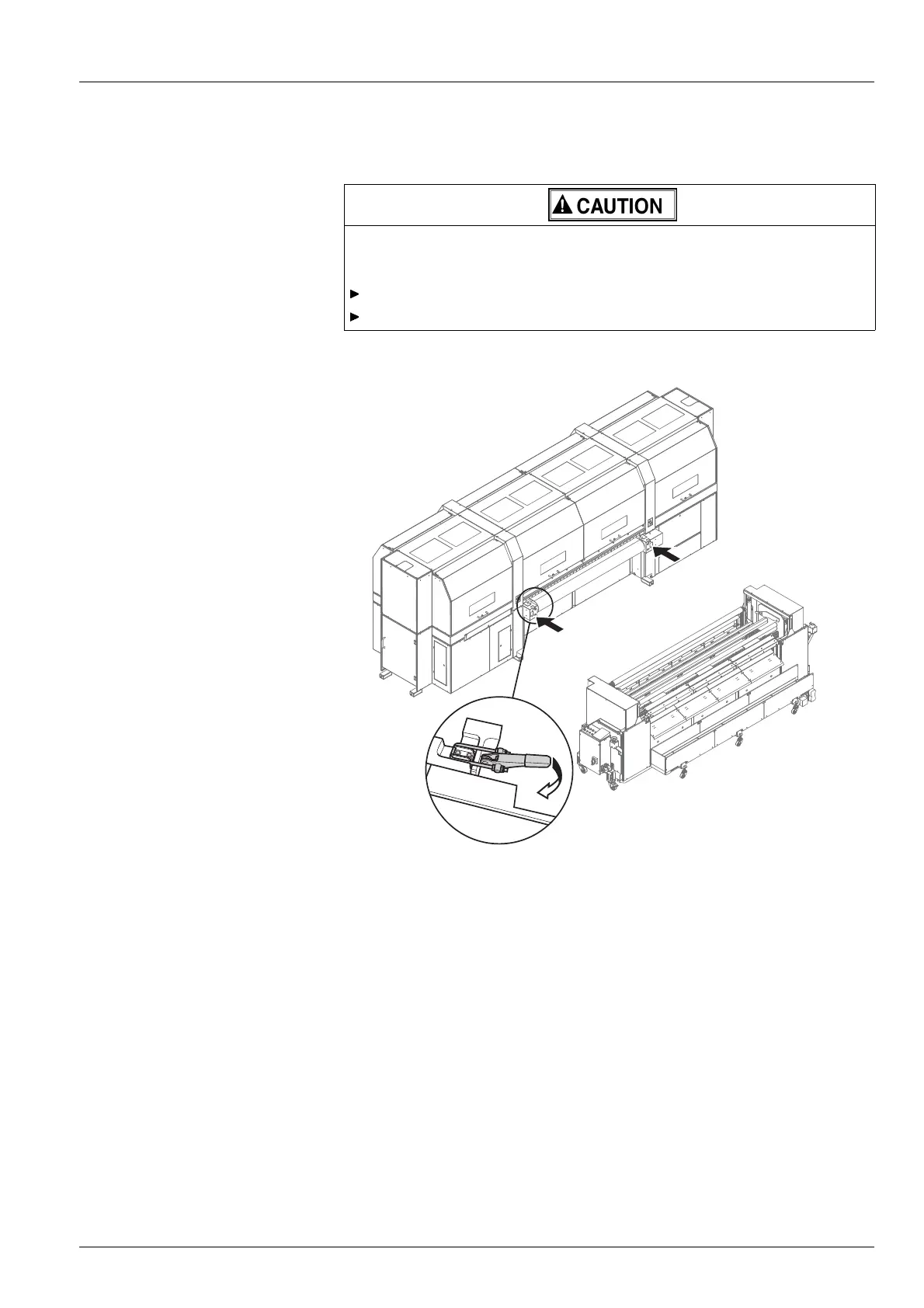

Fig. 32 Docking the XY Cutter
2. Slide the XY Cutter into the guide of the printer.
3. C l ose clamping lock.
4. C onnect t he power and control cables.
5. Connect the compressed-air hose.
6. Set the key switch at the printer to 1 (normal mode).
2004 – 2013 © Durst Phototechnik AG – www.durst-online.com , Rho 1012/10 30 , Issued 07/2013 63 / 147
