Example RPM Setup
Assume this sensor was mapped on the Sensor Input Mapping Wizard as:
PIN #
FUNCTION
SENSOR
NAME
C37 P32/34
RPM
RPM
RPM
Now, we want to configure its alert and graphical properties. Go to the Sensor Setup Menu and
open the RPM RPM Page (SETUP MENU > EMS SETUP > SENSOR SETUP > RPM RPM).
Configure RPM RPM with the following properties:
 ALARM: OFF
 MAXIMUM GRAPHICAL DISPLAY: 3000 RPM
 MINIMUM GRAPHICAL DISPLAY: 0 RPM
 RANGE 1
o ENABLE YES
o COLOR GREEN
o TOP 2000 RPM
o BOTTOM 0 RPM
 RANGE 2
o ENABLE YES
o COLOR YELLOW
o TOP 2250 RPM
o BOTTOM 2000 RPM
 RANGE 3
o ENABLE YES
o COLOR GREEN
o TOP 2700 RPM
o BOTTOM 2250 RPM
 RANGE 4
o ENABLE YES
o COLOR YELLOW
o TOP 2750 RPM
o BOTTOM 2700 RPM
 RANGE 5
o ENABLE YES
o COLOR RED
o TOP 3000 RPM
o BOTTOM 2750 RPM

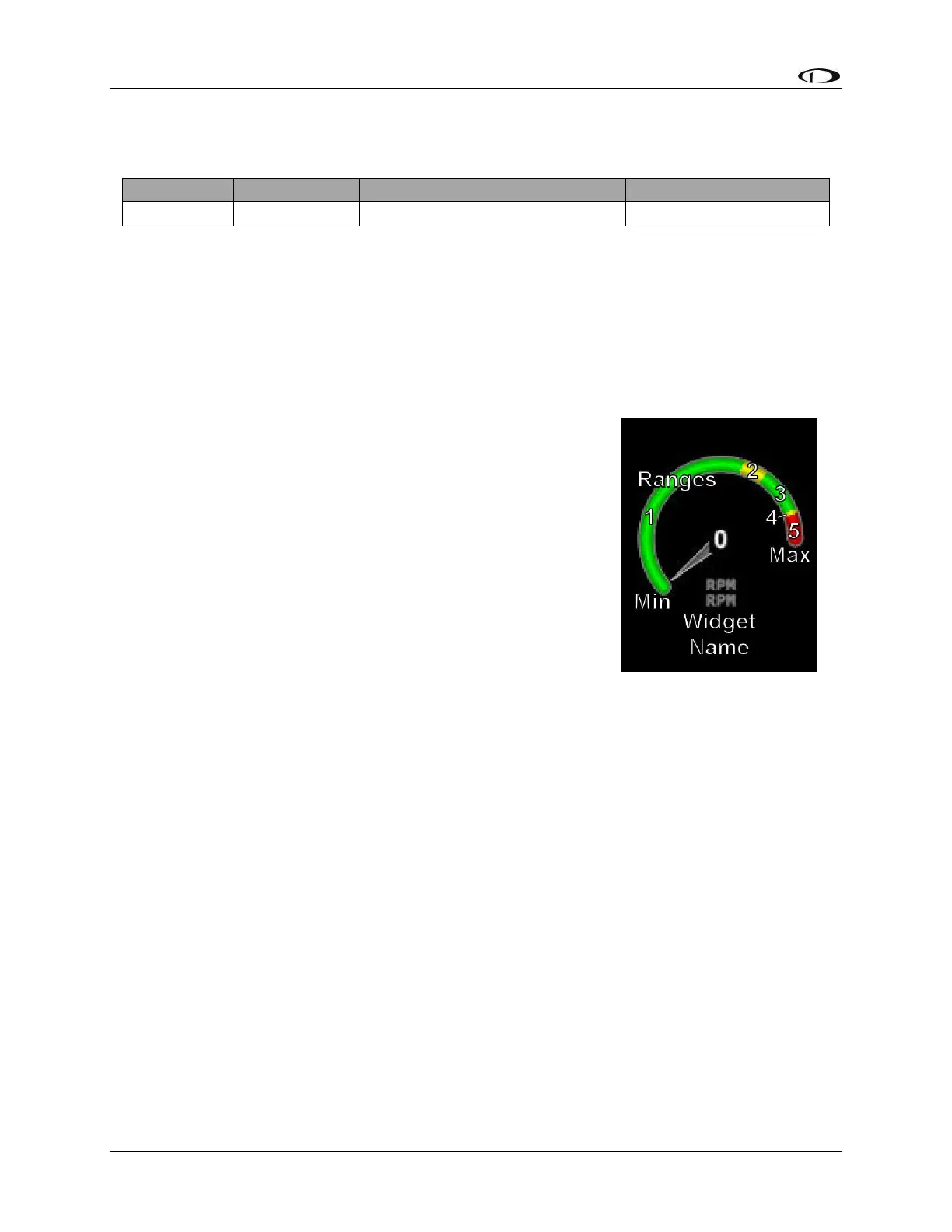

Figure 42–Anatomy of a
Widget: RPM
