SV-ARINC-429 Installation and Configuration
12-6 SkyView System Installation Guide - Revision K

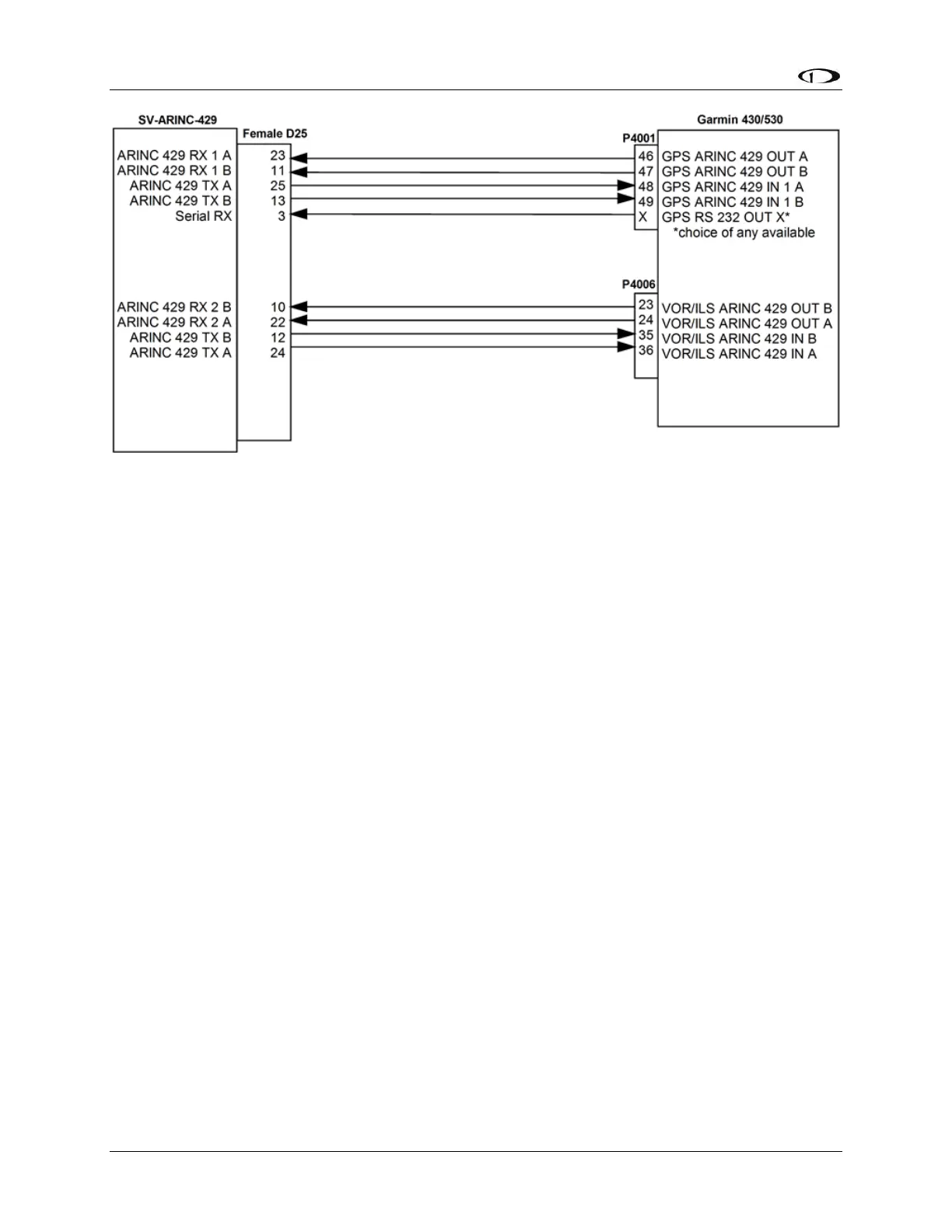

Figure 75 - Garmin 430/530 SV-ARINC-429 Connections
Additional Garmin 430/530 Configuration Information
The following are the typical Garmin and SkyView configuration settings when this combination
of products is used:
Garmin Settings
"Main AIRNC 429 Config" page
In 1 : High | EFIS / Airdata
In 2 : Unused by SkyView, configure as needed for other equipment
Out : High | GAMA 429
SDI : Common
VNAV : Enable Labels
"VOR / LOC / GS AIRNC 429 Config" Page
TX: High
RX: High
SDI: Common
DME: Unused by SkyView
“Main RS232 Config” Page
Chan X (where X is the physically connected port) Output: Aviation
SkyView Settings
SETUP MENU -> ARINC-429:
INPUT SPEED: HIGH
INPUT 1: GPS X
INPUT 2: NAV X
OUTPUT SPEED: HIGH
