SV-ARINC-429 Installation and Configuration
SkyView System Installation Guide - Revision K 12-7

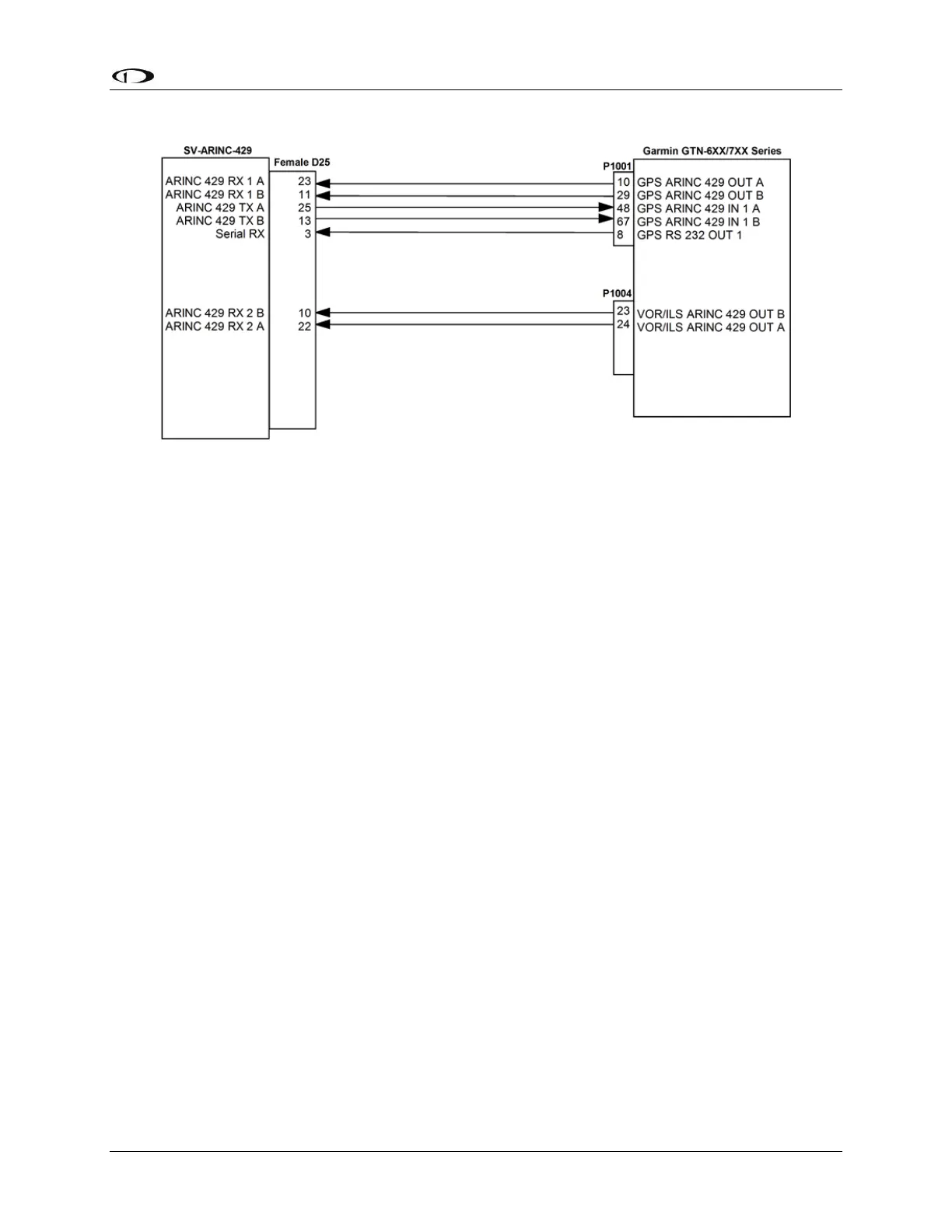

Figure 76 - Garmin GTN Series SV-ARINC-429 Connections
Additional Garmin GTN Series Configuration Information
The following are the typical Garmin and SkyView configuration settings when this combination
of products is used:
Garmin Settings
"ARINC 429 Configuration" page
In 1 : High | EFIS Format 2
In 2 : Unused by SkyView, configure as needed for other equipment
Out : High | GAMA Format 2
SDI : Common
"VOR/LOC/GS Configuration Page
Nav Radio: Enabled
ARINC 429 Configuration:
Tx Speed: High
SDI: Common
Other Settings: Unused by SkyView
“RS-232 Configuration” Page
RS232 1 Output: Aviation Output 1
SkyView Settings
SETUP MENU -> ARINC-429:
INPUT SPEED: HIGH
INPUT 1: GPS X
INPUT 2: NAV X
OUTPUT SPEED: HIGH
