Heater Controller Module Physical Installation

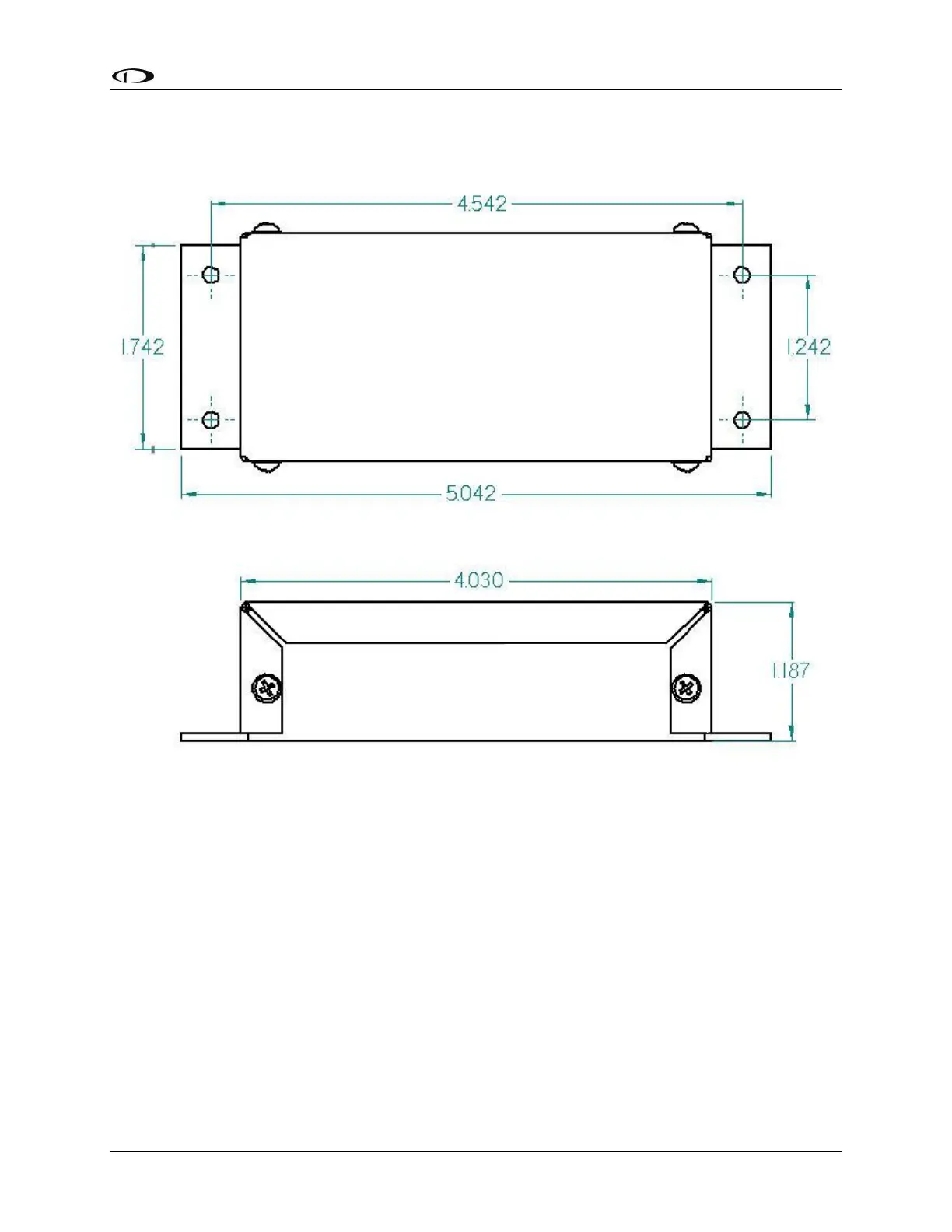

Figure 80 shows the dimensions of the heater controller module.
Figure 80–Heater Controller Module Dimensions
The heater controller module requires #6 mounting hardware and should ideally be mounted
close to the AOA/Pitot Probe. When mounting the controller close to the probe, ensure that it
is close enough for its wires to mate with the probe’s wires, with room for strain-relief. If you
find it difficult to mount the controller in the wing, or simply wish for the controller to be
mounted closer to the battery, you must extend the lines using the correct wire gauge as
described in Appendix C: Wiring and Electrical Connections.
