Appendix C: Wiring and Electrical Connections
17-4 SkyView System Installation Guide - Revision K

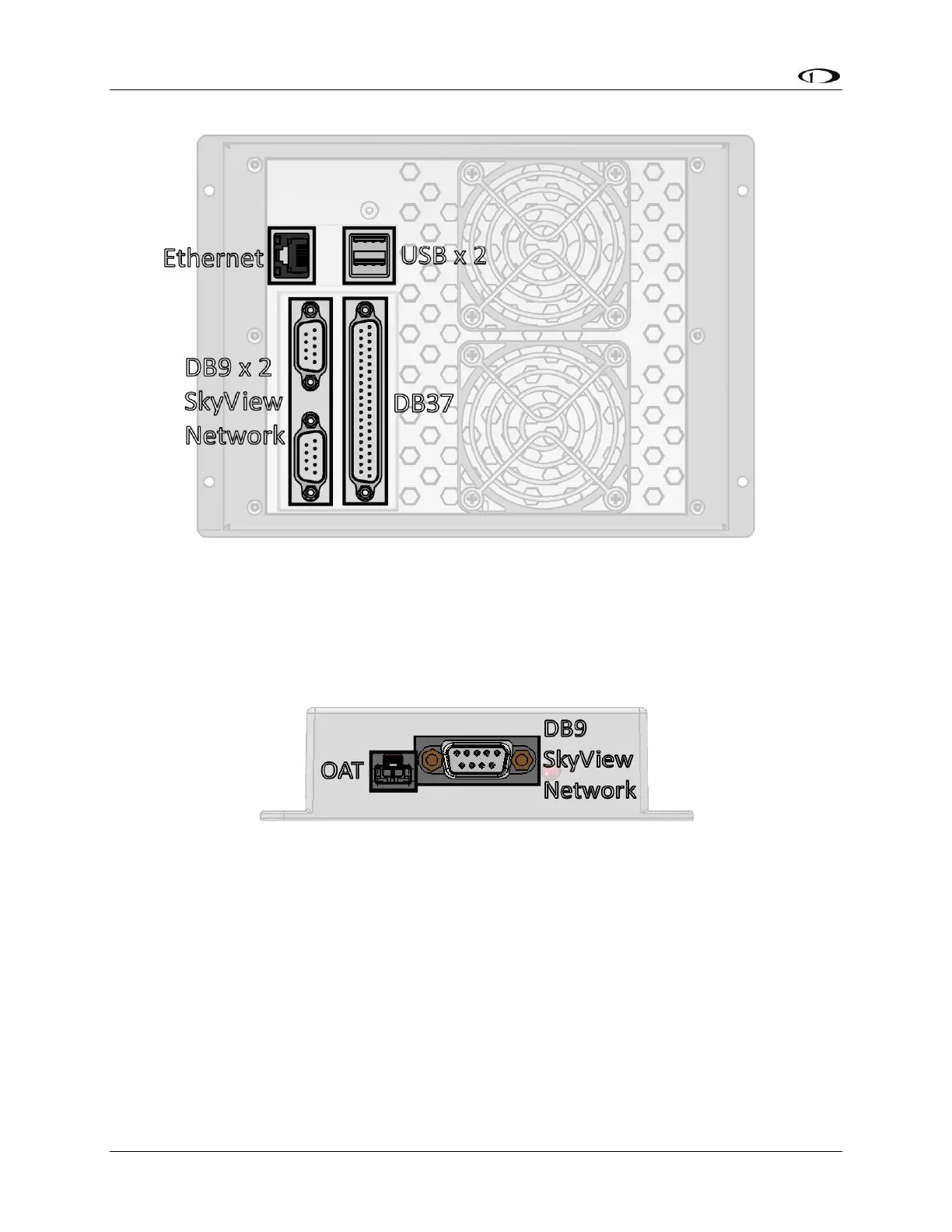

Figure 86–SV-D700 and SV-D1000 Connectors
A SkyView ADAHRS module (SV-ADAHRS-20X) has two connectors as illustrated in Figure 87:
One male D9 SkyView network connector
One 2-pin OAT probe connector (only compatible with the SV-OAT-340)
Figure 87–SV-ADAHRS-20X Connectors
The SkyView EMS Module (SV-EMS-220) has three connectors as illustrated in Figure 88:
One male D9 SkyView network connector
One male D37 for various transducer connections
One female D25 for thermocouple connections
