DESCRIPTION AND INSTALLATION
2-26 25364 Issue 8 March 2018

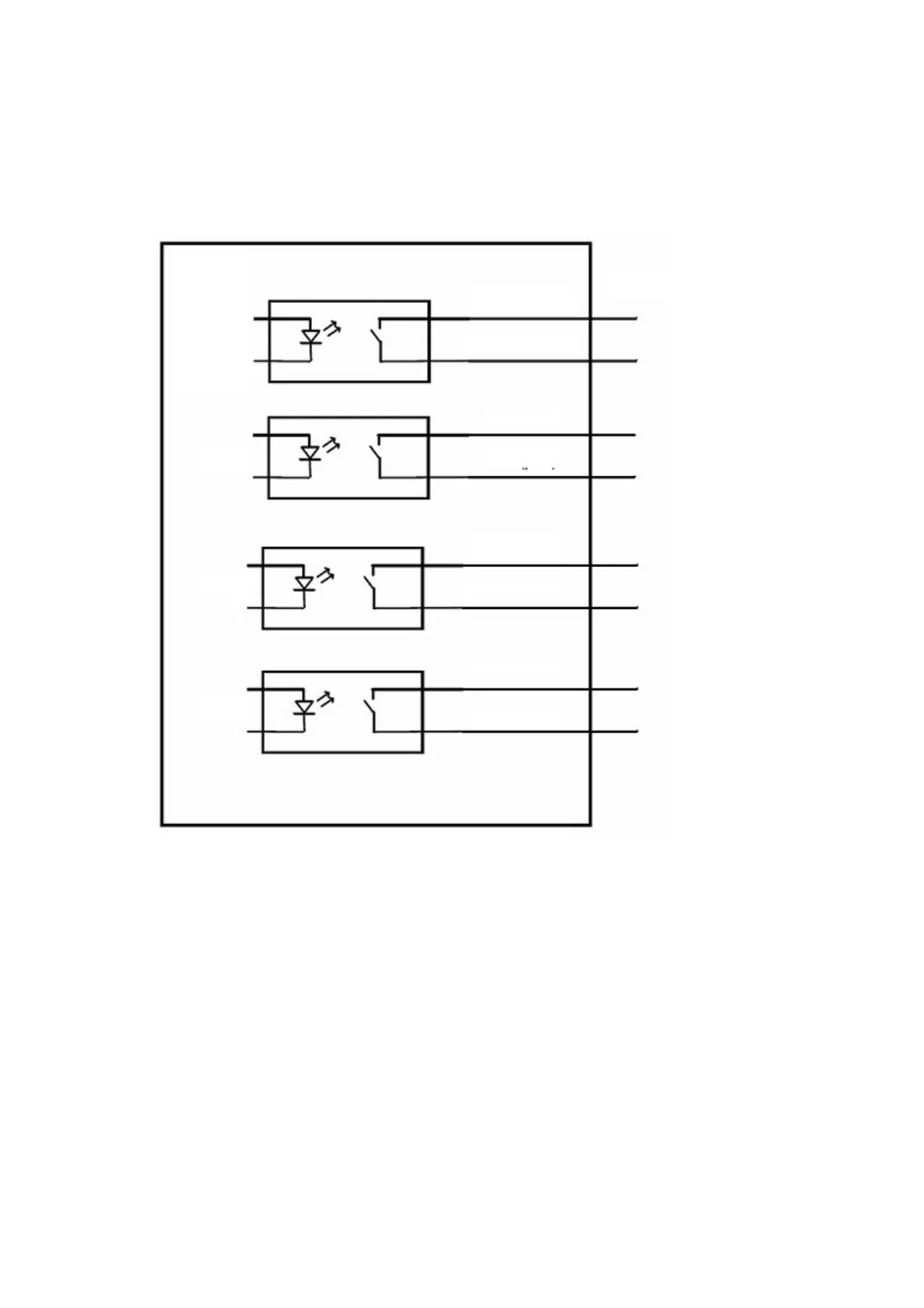

Output Connections - Compact 32d, 32c and 53c
Outputs 1, 2 and 3 are volt-free contacts with a maximum loading of 30V
100mA. Output 4 is a powered contact, Pin 9 is supplied with 24V by
default. See the pin allocation table on page 2-20.
Pin 12 (Light Green)
Pin 10 (White)
Pin 4 (Orange)
Pin 2 (Brown)
Pin 11 (Pink)
Pin 3 (Red)
Printer
Output 1
Output 2
Output 3
I/O Connector
15-pin D-Type
Output 4
Pin 9 (Grey)
Pin 1 (Black)
To Next Page
