EASYPRINT Compact 32D - Encoder Connection

DESCRIPTION AND INSTALLATION
25364 Issue 8 March 2018 2-41
Encoder Connection
The Shaft Encoder connection, when the printer is used in CM, is shown.

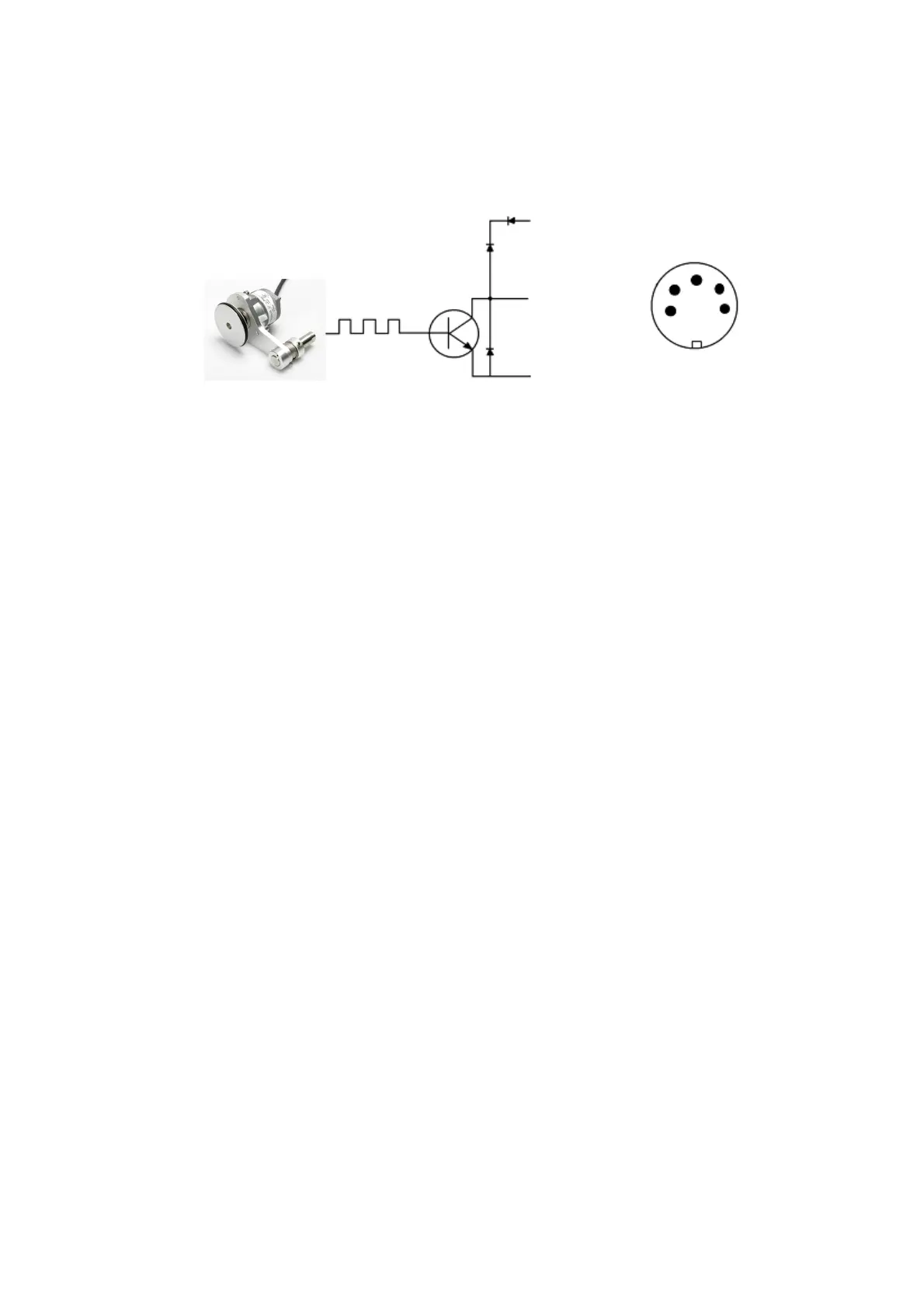

Shaft Encoder Connections to the Printer
NPN
1. RED +5V
2. WHITE
SIGNAL
3. BLUE 0V
3
5
2
4
1
ENCODER
CONNECTION
