OPERATION
3-52 25364 Issue 8 March 2018
Inputs/Outputs
Assignment

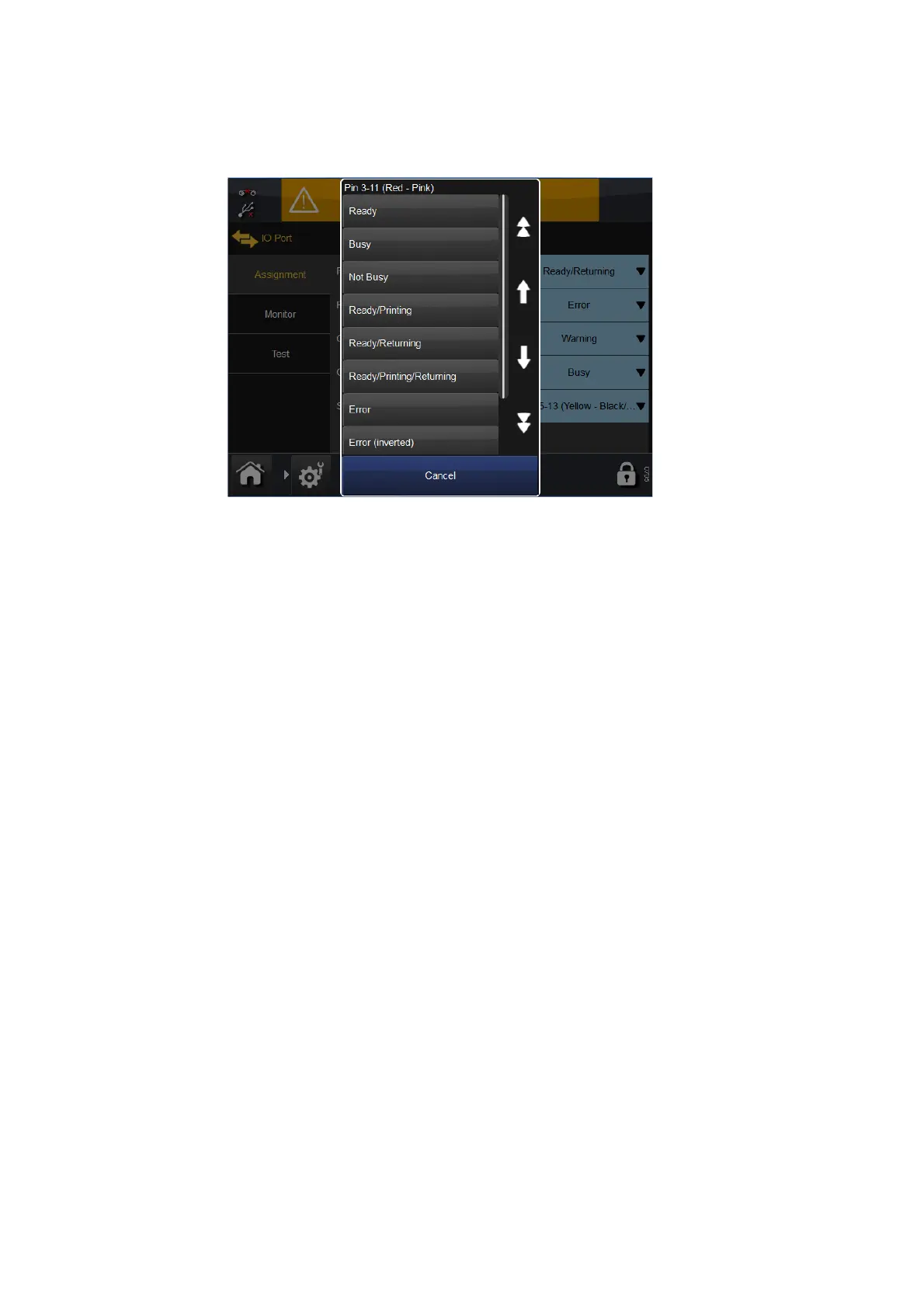

This tab shows the pin, input and output assignments. Pull-down menus
accompany each assignment.
For a detailed pin allocation table, see page 2-20 and page 2-21.
For a table of functions / behaviours for each output, see page 2-28.
Monitor
This tab allows the user to monitor inputs, outputs, interrupts, sensors and
items such as ribbon speed. See “Procedure” on page 4-32.
Test
See “IO Test” on page 4-37.
