MAINTENANCE, SERVICE AND FAULT FINDING
4-22 25364 Issue 8 March 2018
CHANGING THE DRIVE BELT - COMPACT
32d, 32c AND 53c
Notes: (1) Photographs show a Compact 32d.
(2) Tools required: 2.5mm Allen key.

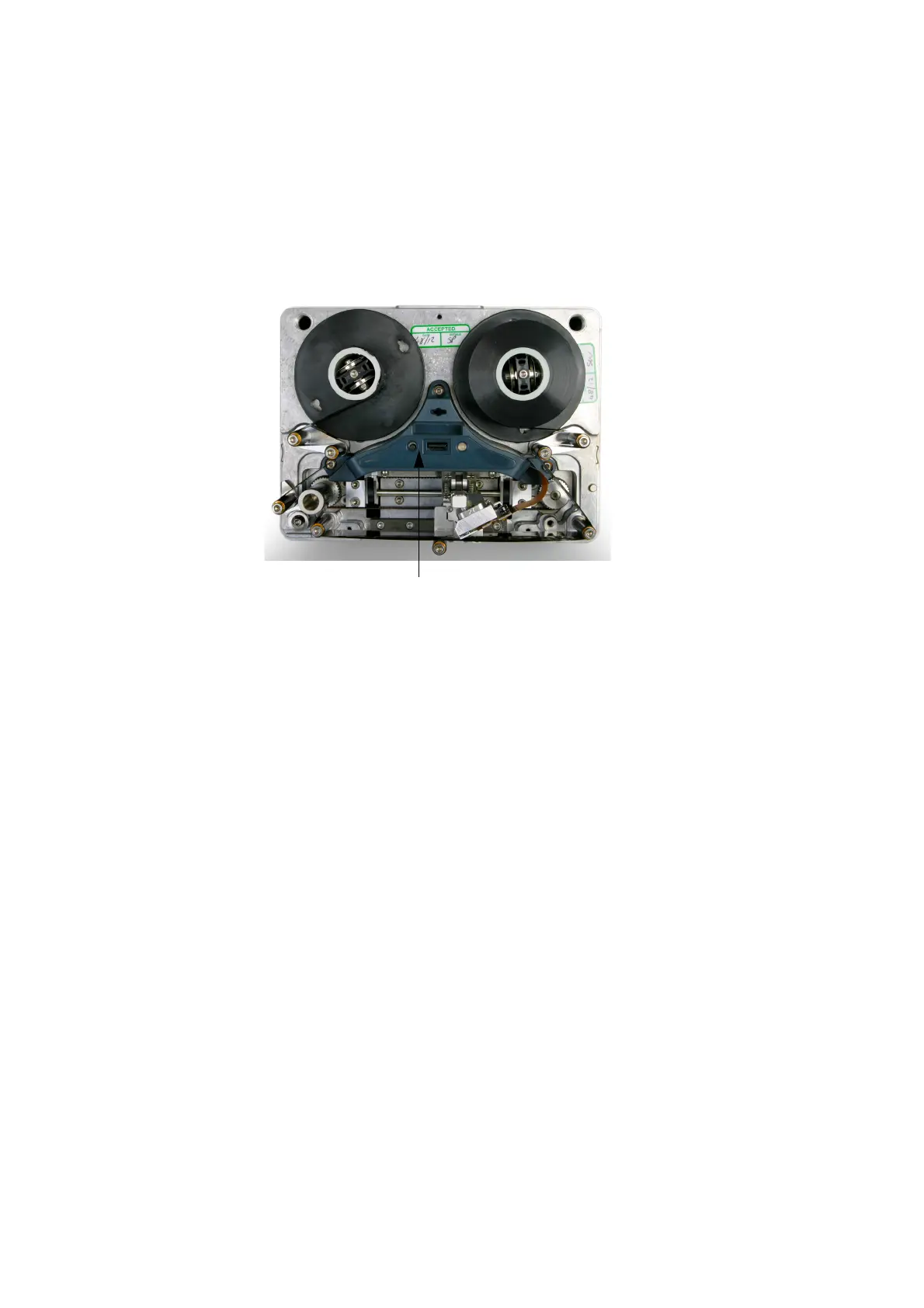

(1) Remove the bridge cover.
(2) Remove the actuator assembly, as described in “Replacing the Print
Head Actuator” on page 4-13.
