EDAN Acclarix LX9 Series User Manual

- 20 -
Acclarix LX9 Series Diagnostic Ultrasound System User Manual
Getting Started

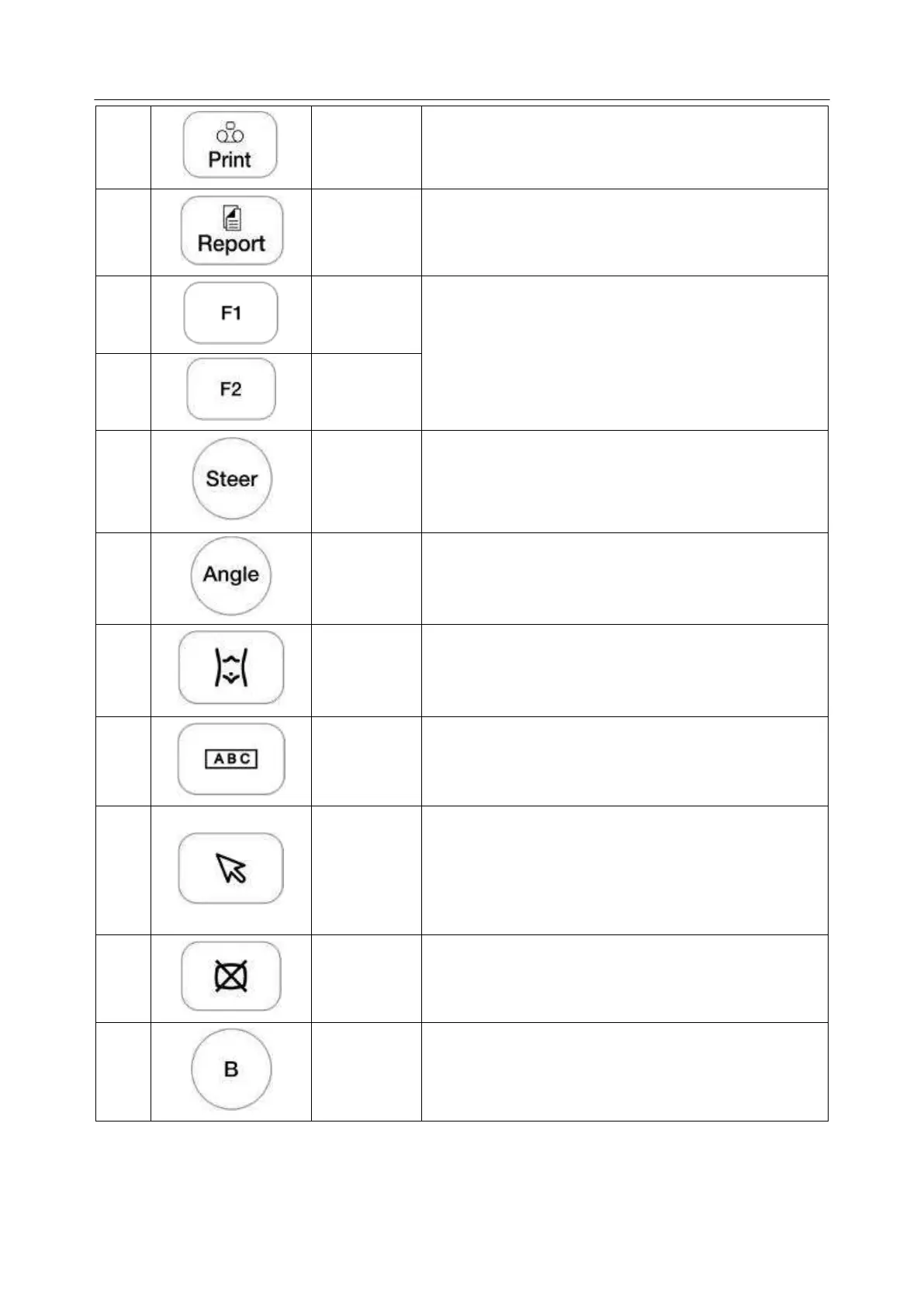

5.
Print
Press to print images via the connected USB video
printer.
6.
Report
Press to display the report page.
7.
F1
User-defined button. See section 10.1.2 for configuring
the user-defined button.
8.
F2
9.
Steer
The Steer knob control is only available for linear
transducers. It can steer B-mode image, Color ROI,
PW sample line, etc. Specific operations thereof are
described throughout the user manual.
10.
Angle
Adjusts the angle of comment, body marks, needle,
etc. Specific operations thereof are described
throughout the user manual.
11.
Body Mark
Enters or exits the Body Mark function.
12.
Comment
Enters or exits the Comment function.
13.
Cursor
Press to hide or display the mouse cursor.
When pressing Cursor while using the Comments
function, the system will display a green cursor in the
image field that can be used to point to anatomical
structures.
14.
Clear
Press to clear all the measurements, calculations,
comments, and body marks displayed on the current
image.
15.
B
Press to return to B-mode imaging from any other
imaging mode and rotate to adjust the gain in B Mode.
