Acclarix LX9 Series Diagnostic Ultrasound System User Manual
Imaging

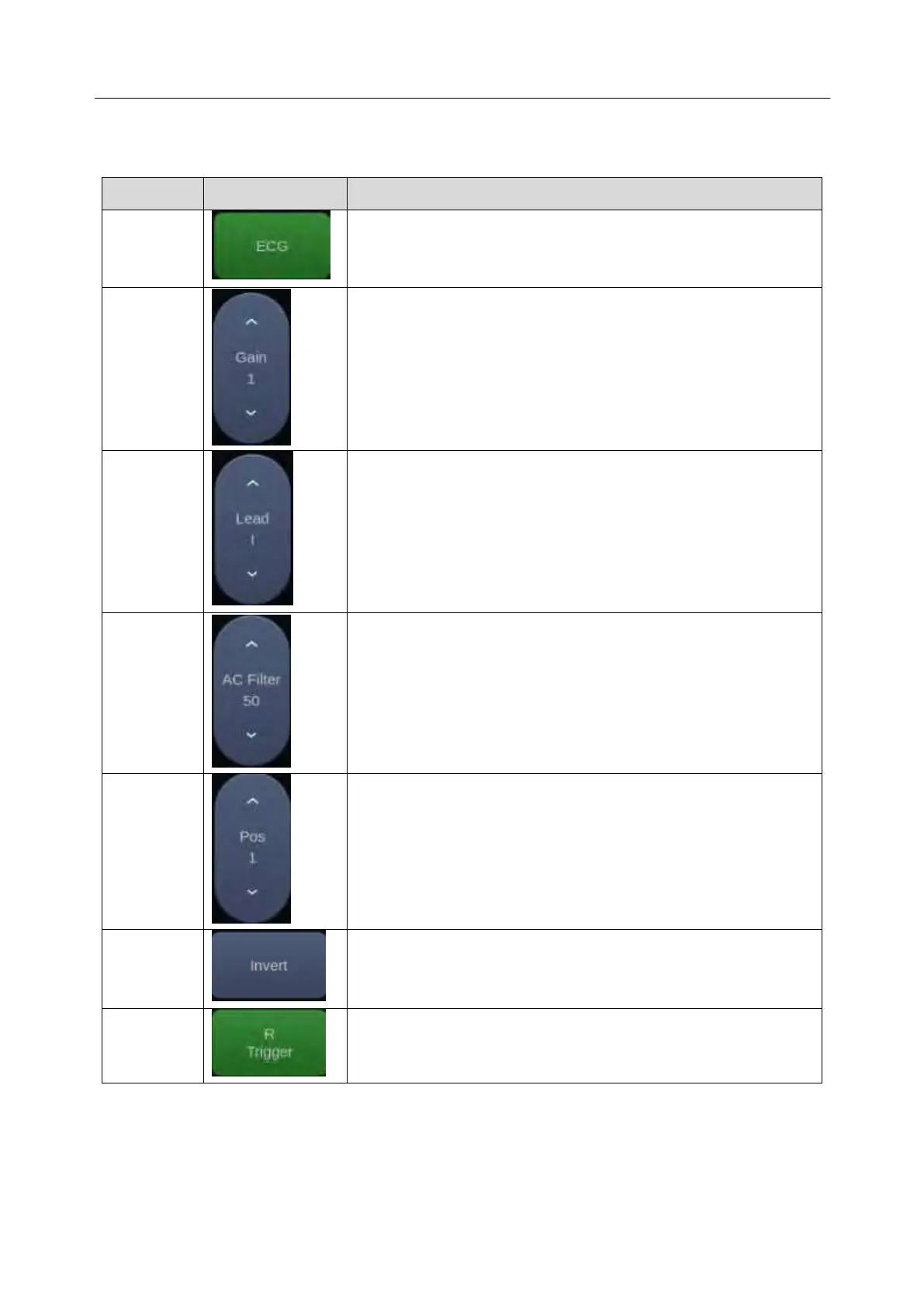

5.12.1. ECG Touch Screen Controls
The following touchscreen controls impact the ECG function:
Name
Control
Description
ECG
Displays or hides ECG waveforms and heart rate value on the
main screen.
Gain
Adjusts the gain of ECG waveform.
ECG Lead
Selects the ECG lead from I, II and III lead as the ECG
waveform source.
AC Filter
Selects the AC filter frequency according to the AC power you
use. 50 Hz and 60 Hz are available. This could filter the
interference from AC power supply.
Position
Moves the position of ECG waveform vertically in the image
area.
Invert
Inverts the display of ECG waveform upside down for better
viewing of the cardiac image.
R Trigger
Triggers the image scanning when the R waveform of ECG
signal is detected.
