Acclarix LX9 Series Diagnostic Ultrasound System User Manual
Measurements and Reports
8.2.8. Pediatric Measurements
No.
Measurement
Group
Measurement Item
Description
Section 1: B-mode Measurements
1.1
Neo-Head
LLV
Left lateral ventricle
2-point distance in
B-mode generic
measurements
RLV
Right lateral ventricle
LT Tri
Left trigone
RT Tri
Right trigone
1.2
HIP
HIP Angle
Hip joint angle
Hip Joint Angle
Measurement(See
section 8.2.8.1);
eHIP(See section
8.2.8.2)
HIP d/D
Hip joint d/D ratio
Femoral Head-L
Femoral Head Length
Femoral Head-W
Femoral Head Width
PFD
Pubo-femoral distance
8.2.8.1. Hip Joint Measurement
Hip Joint Angle Measurement:
Hip Joint Angle Measurement is intended to evaluate the development of acetabular roof and the
subluxation of femoral head for pediatrics. This measurement is performed by adding three straight

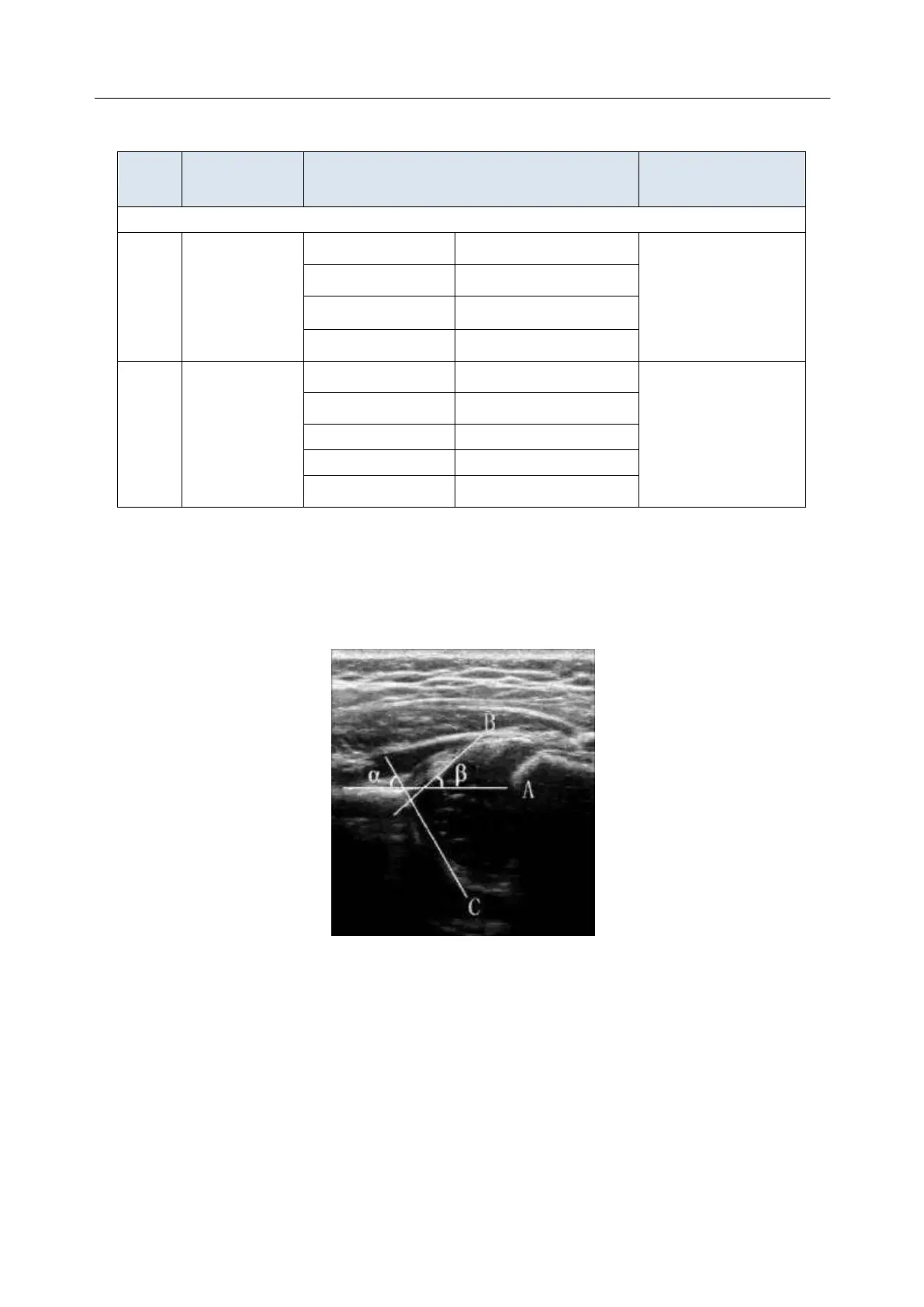

lines on the anatomic image, thereby calculating two angles. See the illustration below.
 Line A (Baseline) connects the osseous acetabular convexity to the point where the joint capsule
and the perichondrium unite with the iliac bone;
 Line B(Inclination Line) connects the osseous acetabular convexity to the labrum acetabulare;
 Line C(Roof Line) connects the lower edge of the iliac bone to the osseous acetabular convexity.
 α is the angle between baseline and roof line.
 β is the angle between baseline and inclination line.
To use Hip Joint Angle measurement:
1. Invoke the B-mode application measurement function.
2. Select HIP-> HIP Angle on the touch screen and then select Left or Right on touch screen. A
horizontal straight line will be displayed on the image field.
