Exam Data Management
- 176
-
 Unfreeze the image
NOTE:
1. If the image is frozen or a non-image screen is displayed, a static image is always stored
when pressing a store key.
2. In panorama mode, a static image is always stored when pressing a store key.
9.2 Reviewing Images
If Static or Clip images have been stored for the current exam then they can be reviewed by pressing
the <Review> hard key on the console. The review touch screen is shown as the figure below.
NOTE: If nothing has been stored in the current exam then the <Review> hard key will invoke the
Patient Database function (see the next section).

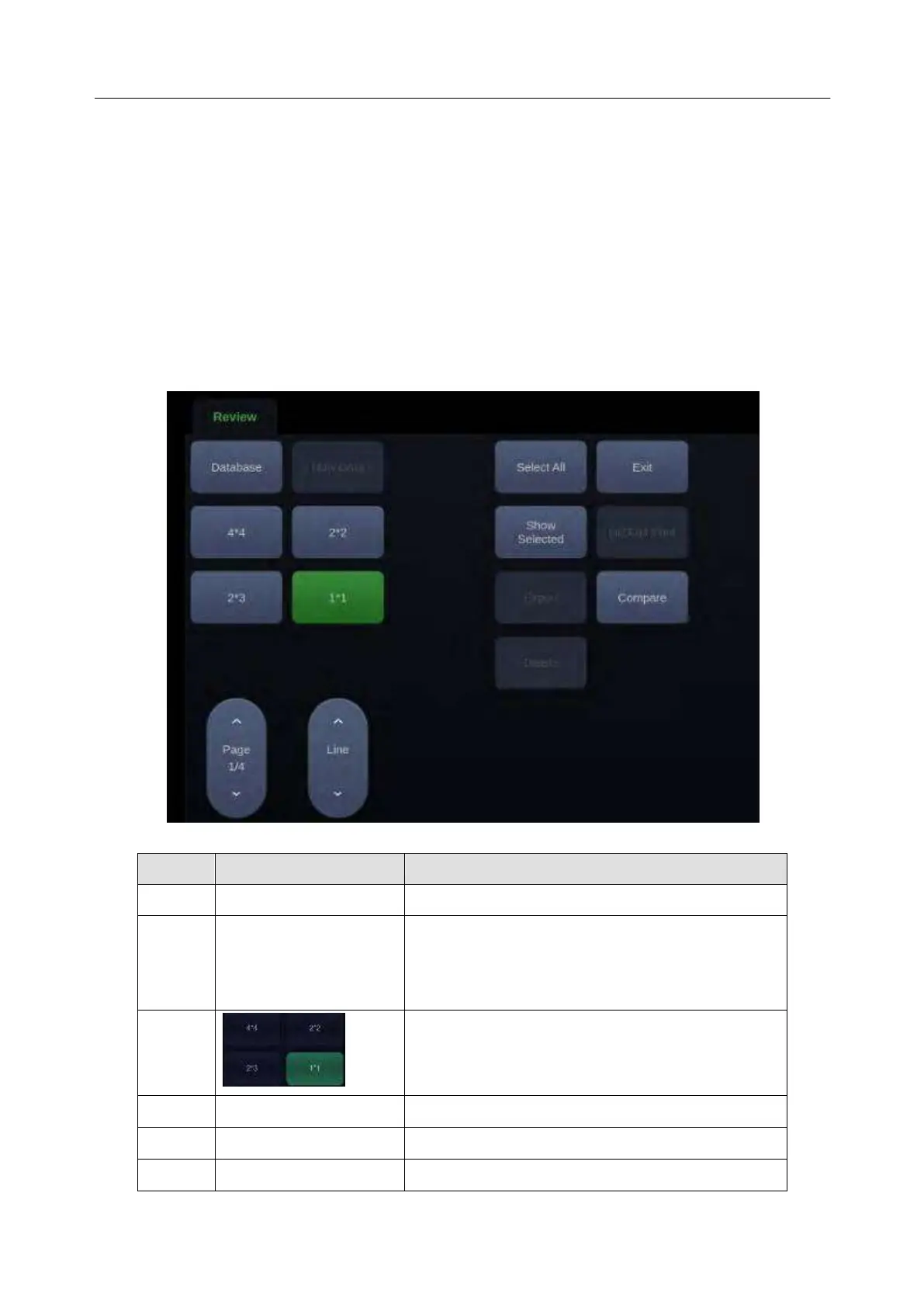

Figure 9-1 Review Touch Screen
No.
Name
Description
1.
Database
Press to enter Exam Database page
2.
Raw Data
Load the raw data of the selected image or clip for
post-processing. Use controls on the console or on
the touch screen to do post-processing operations,
such as imaging optimization, annotation, etc.
3.
Change the displayed layout: 4*4, 2*2, 1*1, 2*3
4.
Select All
Select all the images in the current exam.
5.
Exit
Exit Review function
6.
Show Selected
Toggle between showing all images and only
