Acclarix LX9 Series Diagnostic Ultrasound System User Manual
4.5
Modality Worklist
Modality worklist provides a list of scheduled patients derived from a DICOM server. It is available only
when a DICOM server is configured and worklist is enabled.
The worklist is shown to the left of the Patient Information Page, as shown below.

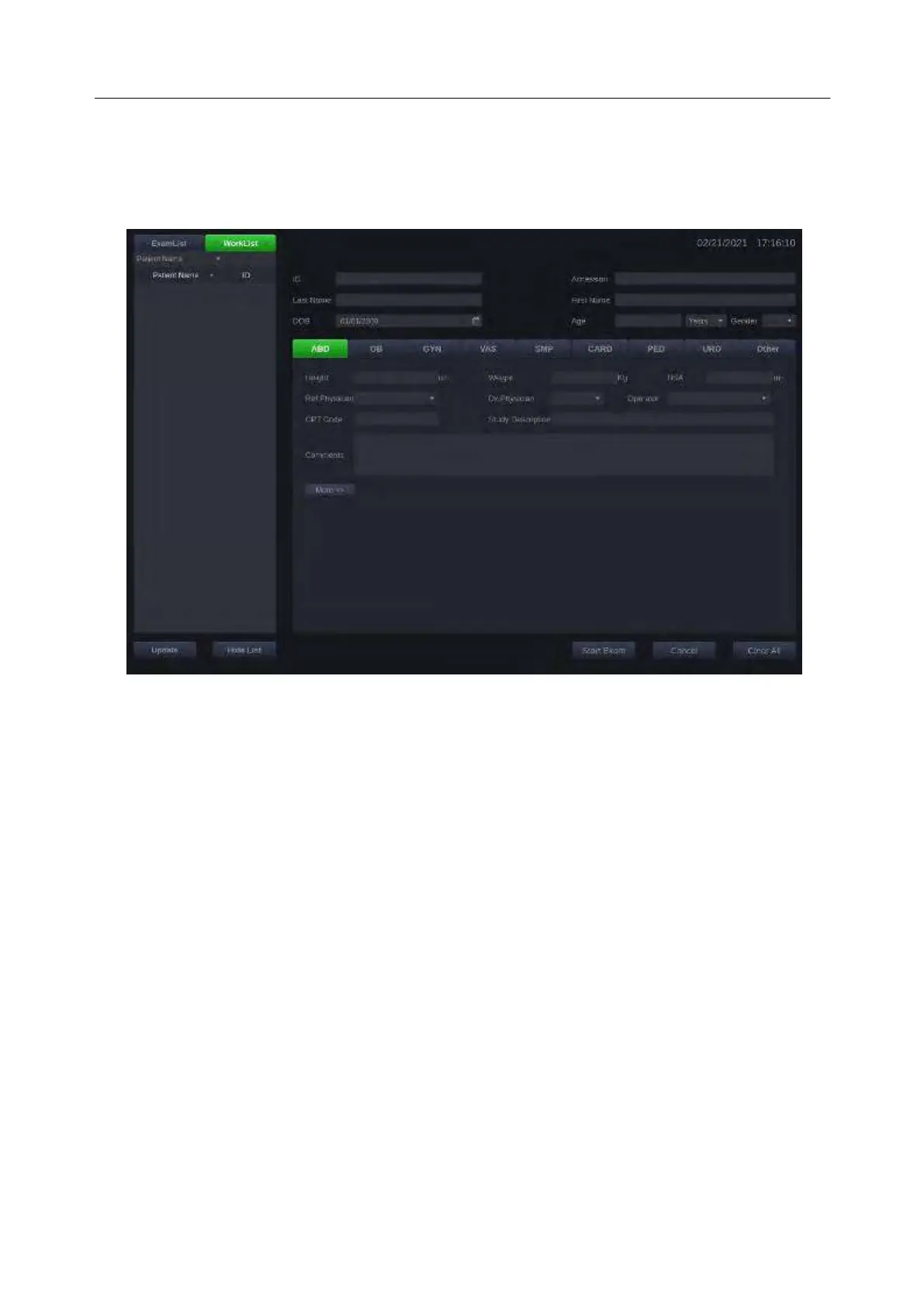

Figure 4-4 Modality Worklist Display
The worklist is displayed at the left side of the Patient Information Page in two columns labeled patient
name and patient ID. Clicking on the header of each column will sort the list for the corresponding
column. The worklist shows all scheduled ultrasound exams within the date-range specified in the
Connectivity Utility (See section 10.6.2).
After selecting the filter conditions (Patient Name, Patient ID, Accession Number, Request Procedure
ID, SPS Start Date) from the drop-down box, type the corresponding text in the input field to filter out
the appointment exams that contain the entered text.
Update: Press to query the patient data and update the list manually.
Hide List: Press to hide the list with only a Show List button displayed. Press the Show List button to
display the list and other buttons.
More: Press to display more scheduled exam information, including Scheduled Date Time,
Scheduled AE Title, Request Code Meaning, Request Procedure ID, Request Description.
Select one patient from the list and the detailed patient information is entered into the associated fields
on the patient information page, with the option to edit or complete. Then press Start Exam on the
touch screen to start an exam.
