Acclarix LX9 Series Diagnostic Ultrasound System User Manual

Features

7 Features

7.1

Comments

The Comments function allows you add annotation to an image. The Comment function is invoked by

pressing the <Comment> hard key on the console. Figure 7-1 shows an example touch screen for the

Comment function. The top portion of the screen shows comments that are pre-defined in pre-sets.

See section 10.3 for details on how to configure these. The bottom portion of the screen shows

controls available while the Comment function is active. Table 7-1 gives an overview of these controls.

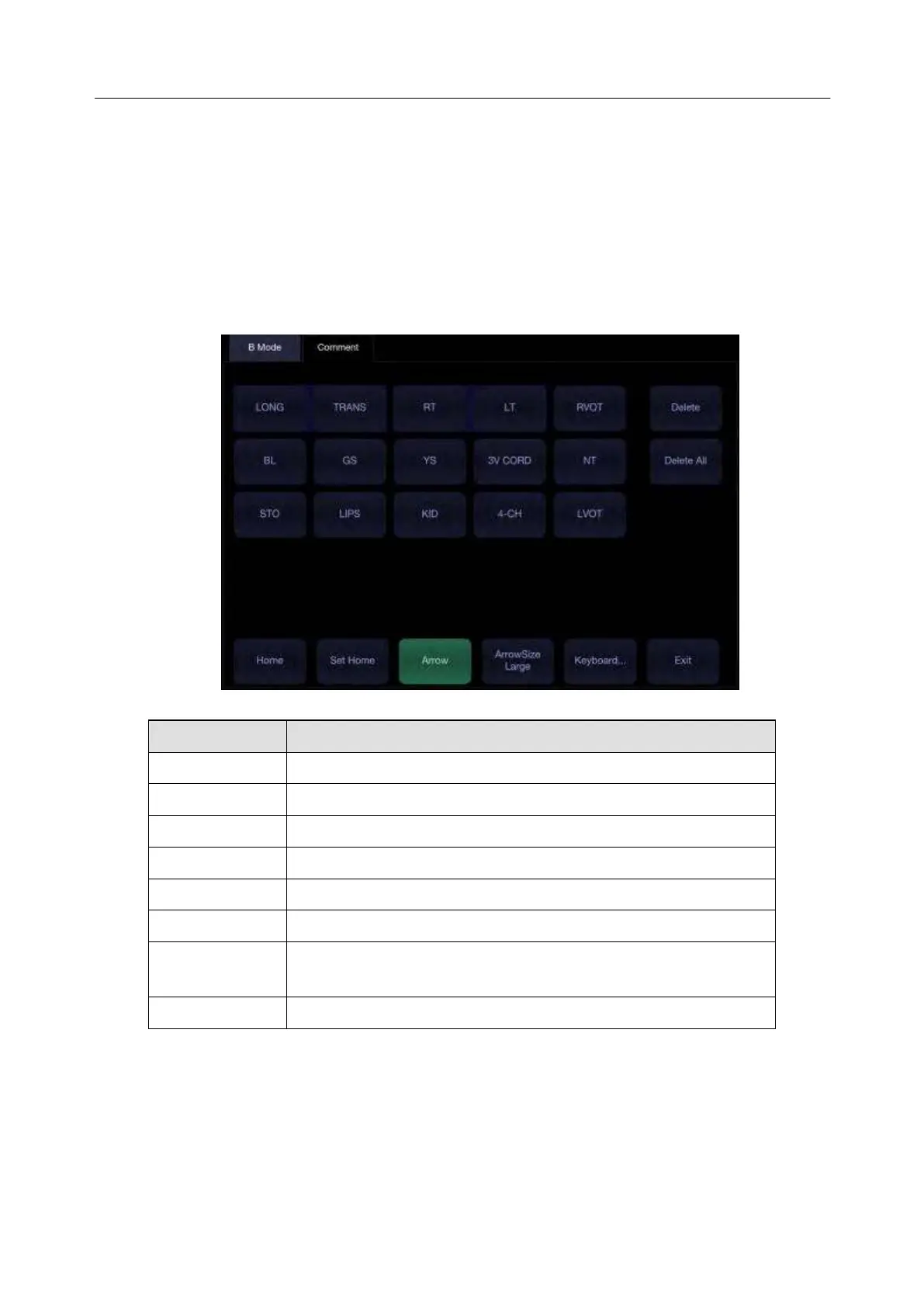

Figure 7-1 Comment Touch Screen

Button

Description

Home

Set the cursor in a pre-defined location.

Set Home

Set the current cursor location as the new Home location

Delete

Delete a whole text or an arrow

Delete All

Clear all comments on the image area

Arrow

Create a new arrow for annotating

ArrowSize

Adjust the arrow size among Large, Mid and Small.

Keyboard

Toggle between showing pre-defined comments(comment library)

or a touch screen keyboard.

Exit

Press to exit the comments function.

Table 7-1 Comment Touch Screen Description
