Acclarix LX9 Series Diagnostic Ultrasound System User Manual
Getting Started

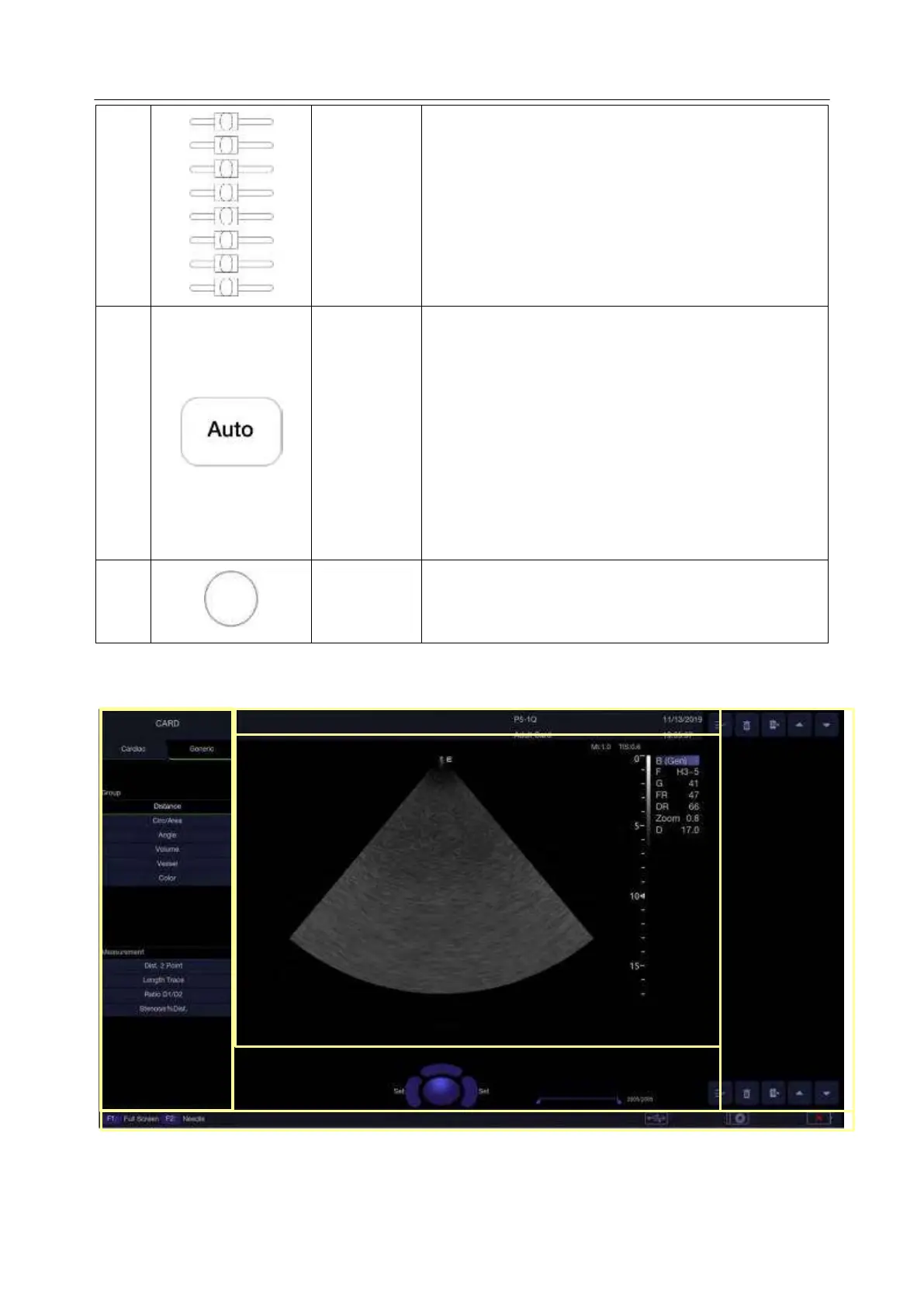

35.
TGC
The Time Gain Compensation control (TGC) adjusts
the gain of the image at different depths. Each slider
can be adjusted separately.
Glide the slide controls to adjust the TGC. Glide the
upper segments to adjust the near field gain, and the
lower segments to adjust the far field gain; glide
rightward to increase TGC, and glide leftward to
decrease.
36.
Auto
In B mode, the Auto push button automatically updates
the Overall Gain and TGC.
In PW mode, the Auto push button automatically
updates the PW gain, DR, baseline and scale.
In Color mode, this Auto push button automatically
updates the gain and scale.
Each single press of the button renews the automatic
optimization. Whether Gain, DR or Scale/Baseline is
optimized when pressing Auto button in PW mode can
be configured in Set-up. See section 10.2.1 for detail.
37.
Touch screen
paddle
Knob(Six)
Each of these six knobs adjusts the setting value of
one corresponding paddle control above it on the touch
screen.
3.2.3. Screen Layout
Table 3-6 Buttons on Control Panel
Figure 3-7 Main Screen Display
⑥
⑤
②
④
①
③
