Acclarix LX9 Series Diagnostic Ultrasound System User Manual
Getting Started

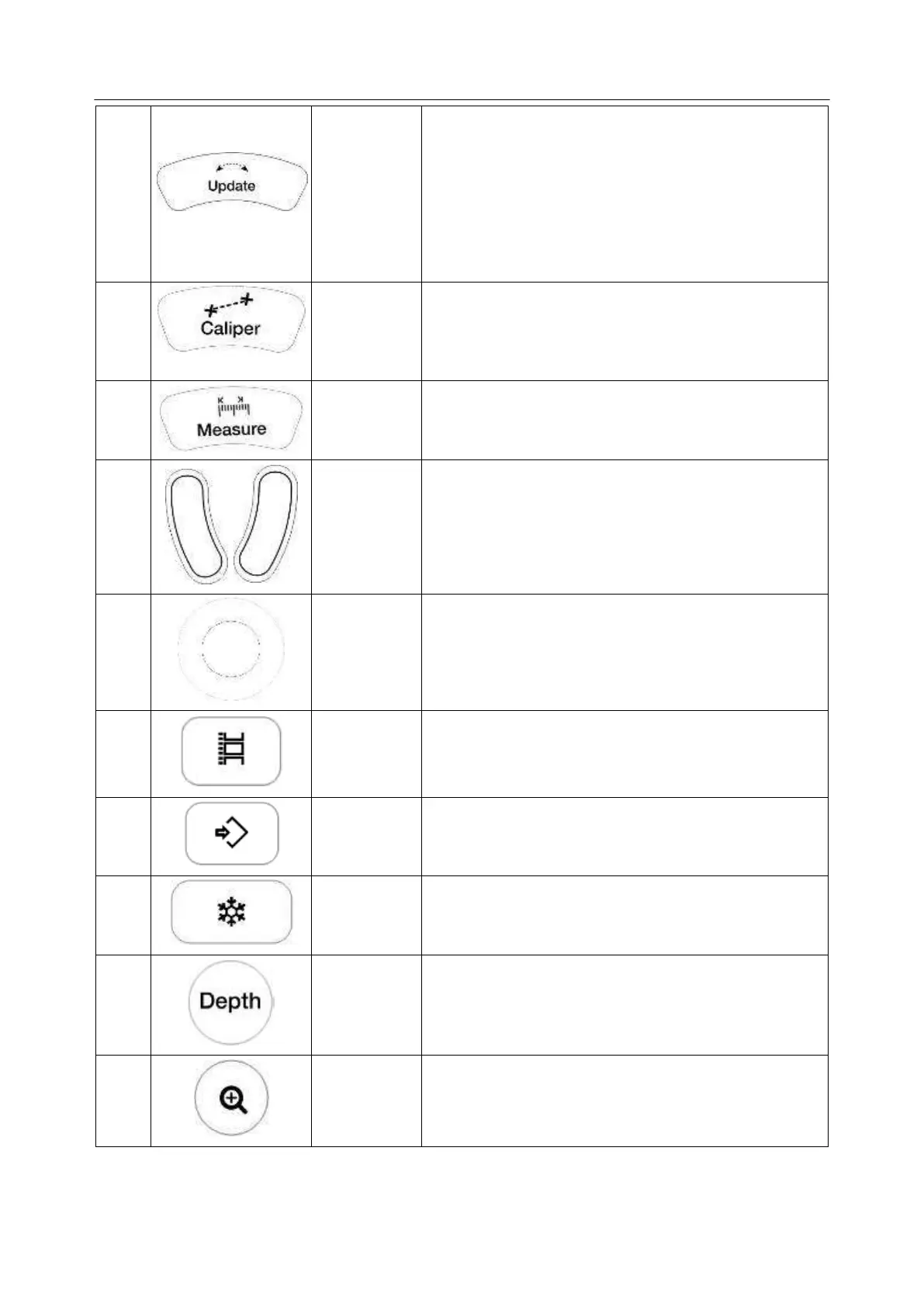

25.
Update
In measurement, pressing <Update> switches the
active side of calipers. See section 8.1 for details.
In Pre-Doppler mode, pressing <Update> invokes
Spectral Doppler mode. When Spectral Doppler strip is
displayed, pressing <Update> allows switching
between live acquisition of the Doppler strip or the
reference image.
26.
Caliper
Invokes generic measurements. See section 8.1 for
details.
27.
Measure
Invokes application measurements. See section 8.2 for
details.
28.
Trackball
Keys
Two trackball keys provide a wide variety of functions
depending on the system state (e.g., selects a start or
end point of a measurement, selects menu items on
the screen, etc). For the convenience of introduction,
we call them <Set> throughout this user manual.
29.
Trackball
Move the trackball to change the cursor position, adjust
M mark position in M mode, adjust sample line position
in PW mode, etc.
30.
Store Clip
Press to store clips.
31.
Store Image
Press to store static images.
32.
Freeze
Press to switch between the frozen and real-time
states. The button is highlighted when the image is
frozen.
33.
Depth
Rotate to adjust the depth of the image displayed.
Rotate counterclockwise to decrease the depth and
rotate clockwise to increase.
34.
Zoom
Rotate to use Pan Zoom function, and press to use
Spot Zoom function. See section 7.4 for details.
