Acclarix LX9 Series Diagnostic Ultrasound System User Manual
10.2.2. Exam Preset

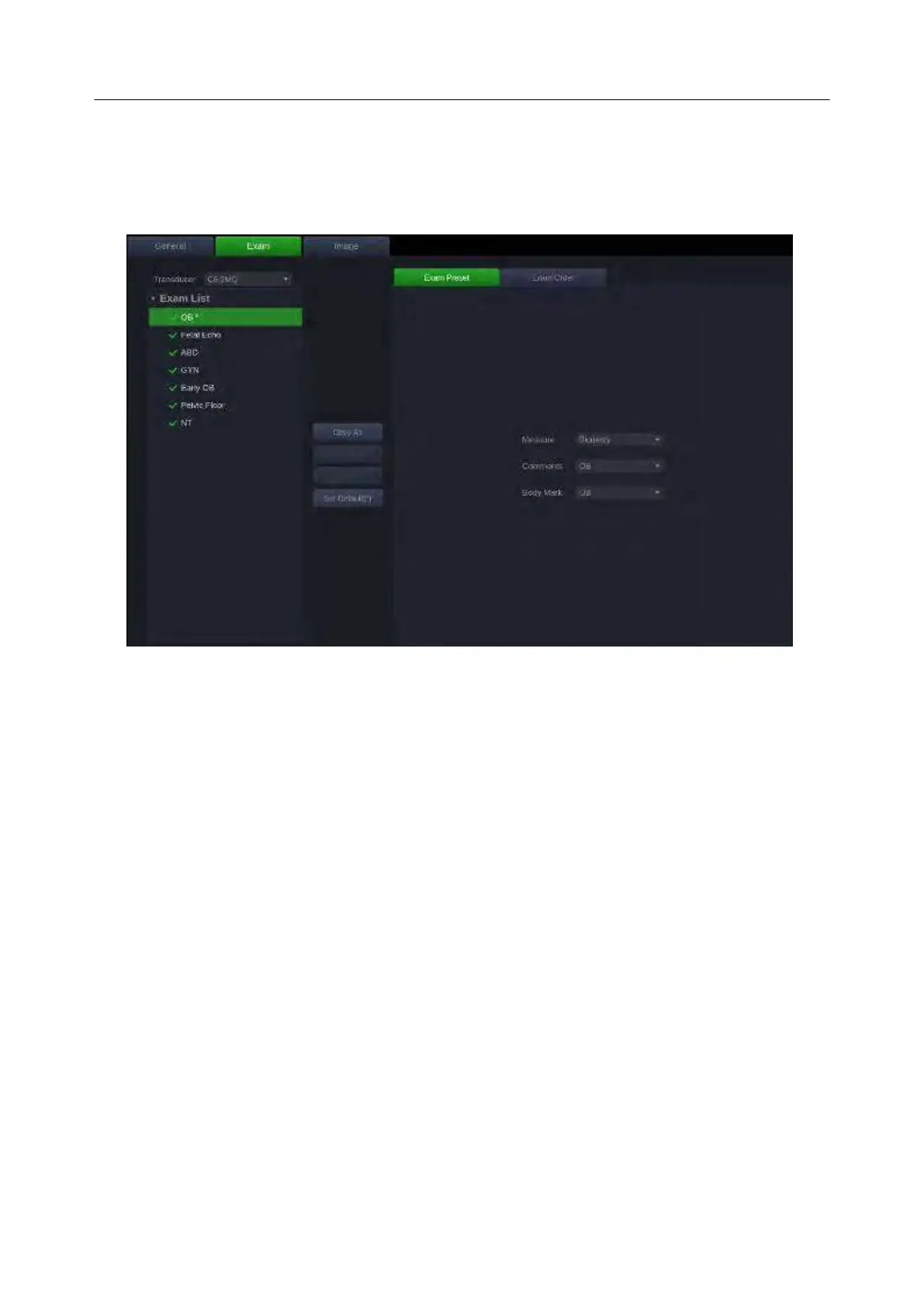

The figure below shows an example of the exam preset page where you can configure which
Comment, Measure or Body Mark presets are associated with each transducer‟s exam preset, or
adjust the display order of exam presets of each transducer.
Exam Preset:
Transducer: Select one transducer from the list to configure its exam presets.
Preset List: Select one exam preset to configure its Comment, Measure, or Body Mark settings.
Measure: Select one of the pre-defined application measurement packages to be the default
measure preset for the selected exam preset.
Comments: Select one of the pre-defined comment presets to be the default comment preset for
the selected exam preset.
Body Mark: Select one of the pre-defined body mark presets to be the default body mark preset
for the selected exam preset.
Set Default: Set the selected exam preset as the default exam preset of the transducer. The
default exam preset will be marked with "*".
Copy As and Rename: Copy the selected exam preset as a new preset and then rename it.
Delete: Delete the copied exam preset.
Adjust the display order of exam presets:
The display order of exam presets of each transducer can be adjusted on the Preset Order page, as
shown below. The left part shows the transducer selection and the list of supported exam presets of
the selected transducer. The touchscreen Layout on the right part shows the display order of exam
presets, which is consistent with the display order on the Transducer touch screen.
