Acclarix LX9 Series Diagnostic Ultrasound System User Manual
9.3
Exam Database
The Exam Database provides a list of recently performed studies. It can be accessed by pressing the
<Review> hard key on the console when there is no active exam.

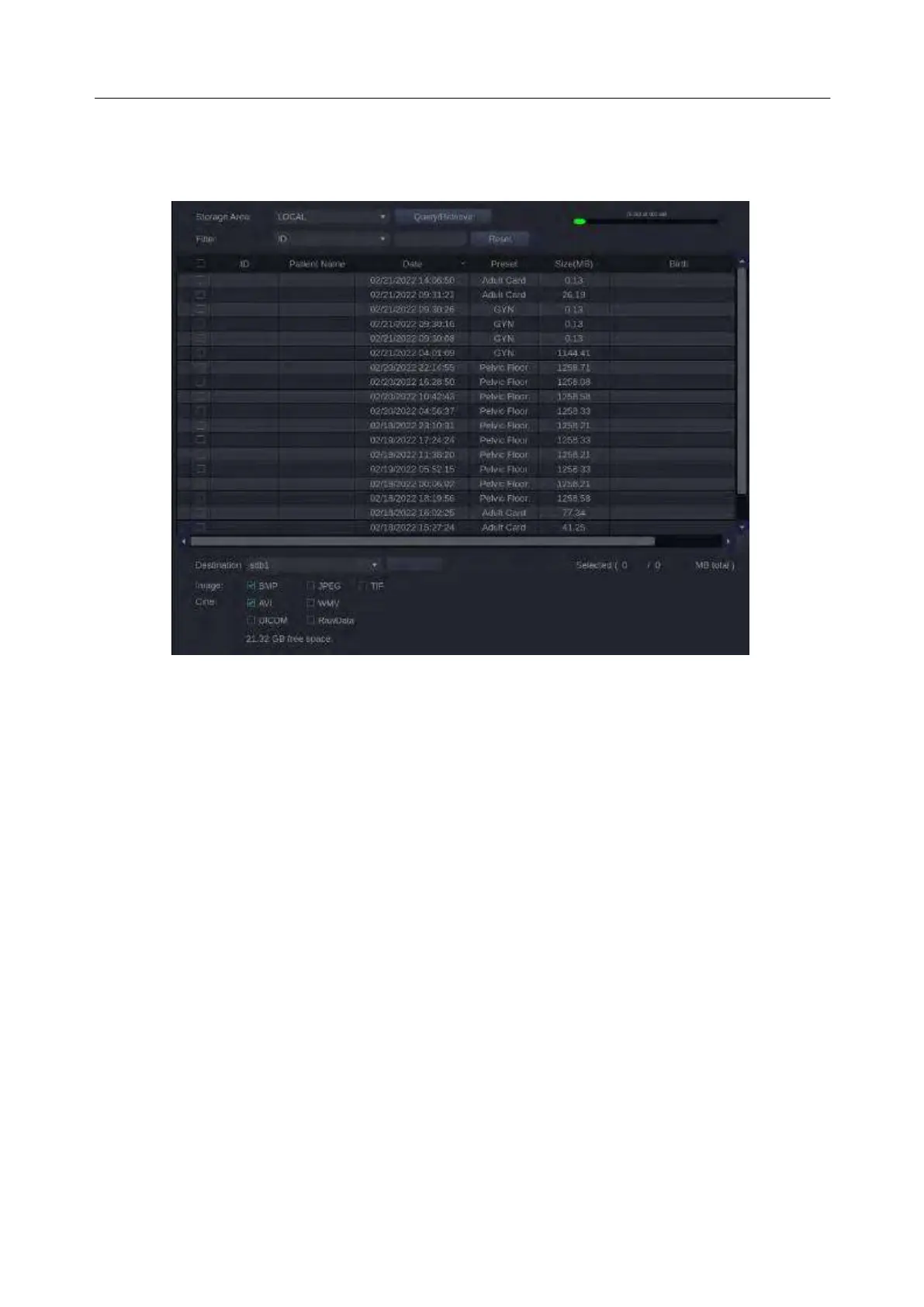

Figure 9-2 Exam Database Main Screen
The main part of the display shows a list of studies. Clicking on the header of a field will sort the list by
that field. Fields can be displayed or hidden. If Password Protection is enabled, admin can view and
operate all the studies, operators can only view and operate the studies they created.
Filter: The database filter field at the top of the screen provides a powerful tool to find the study of interest.
The user can click the Filter drop-down box and select a category based on the information to be entered,
including ID, Patient Name, Preset, Date and Birth. After entering corresponding information, the system
will filter out relevant exams. You can also press the Reset key to clear the filter criteria, and all the exams
will be displayed in the exam list.
Storage Area: There is a database storage area field at the top-right of the screen. User can select to
review the studies in local or USB storage, and also can send the studies from local to USB or from
USB to local. Select the required studies and click Send to complete. When sending the studies from
USB to local, only images in RawData format can be sent.
Storage Size: There is a box displaying current disk usage. It contains text with the current usage
and is filled with a solid color to the extent that the current capacity is used. The text shows “<current
usage> of <total capacity>”. The units are “Mb” for values less than 1 Gb, and “Gb” for anything larger.
The solid color fill is green when usage is less than 75% of capacity, yellow for usage between 75%
and 95%, and red when disk usage is above 95%.
Destination: The location where the highlighted exam(s) shall be exported, including:
Available DICOM server location(s).
Available FTP server location(s).
Any inserted USB disk or DVD drive.
