Delete: Deletes the imported images.
10.7.5. Transducer Element Check
Proper performance of the transducer is the prerequisites for acquiring images or signals that
provide the intended information for the users. To ensure the proper performance of a transducer, it
is suggested to implement the transducer element check each time a transducer is activated for use
or at regular transducer performance check.
To perform transducer element check:
1. Activate a transducer from the Transducer touch screen.
2. Open the Version screen.
3. Press the Probe Check button to open the window for transducer element check.
4. Ensure the transducer is unloaded in the still air and the residual coupling gel has been
removed. Press Start to initiate the process of element check.
5. Wait until the test report is displayed.

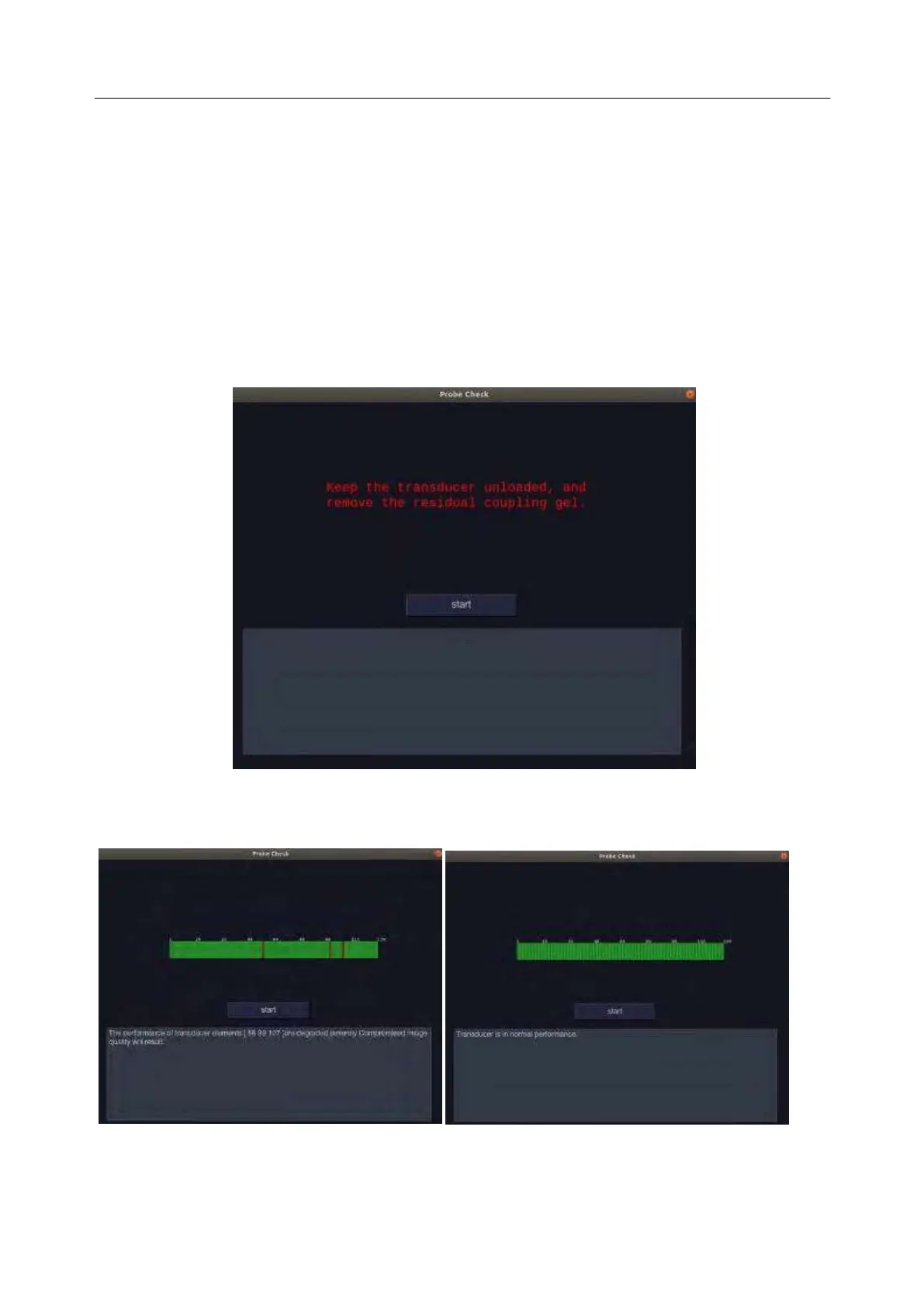

The test report includes two parts:
a.
Elements graphic, showing element number and element performance. Red color
indicates the performance of the elements have been compromised. Green color indicates
To Next Page
