5.6 Anatomic M Mode
Anatomic M mode allows you to manipulate the position and angle of M sample line and displays
real-time M strip image. Only phased array transducer supports Anatomic M mode.
The Anatomic M mode supported on this system includes Linear Anatomic M mode and Curved
Anatomic M mode.
5.6.1. Linear Anatomic M Mode
Using Linear Anatomic M mode:
1. Press Anatomic button on the M-mode touch screen to invoke Anatomic M mode.
2. Press Show one, Show two or Show three button on the touch screen to display single or
multiple M sample lines.
3. Use trackball to adjust the position of M sample line.
4. Press Angle button on the touch screen or rotate <Angle> knob on the console to adjust the
angle of M sample line.
If multiple M sample lines are displayed pressing <Set> key can switch between the M sample
lines.
5. Adjust image parameters to optimize M strip.
Optimizing Anatomic M Image:
For touch screen controls consistent with those in M mode, please refer to section 5.5.2 M-mode
Image Optimization. This section only introduces special touch screen controls in Anatomic M mode.
Adjusts the angle of M sample line.
Displays only one M sample line.
Displays two M sample lines.
Displays three M sample lines.

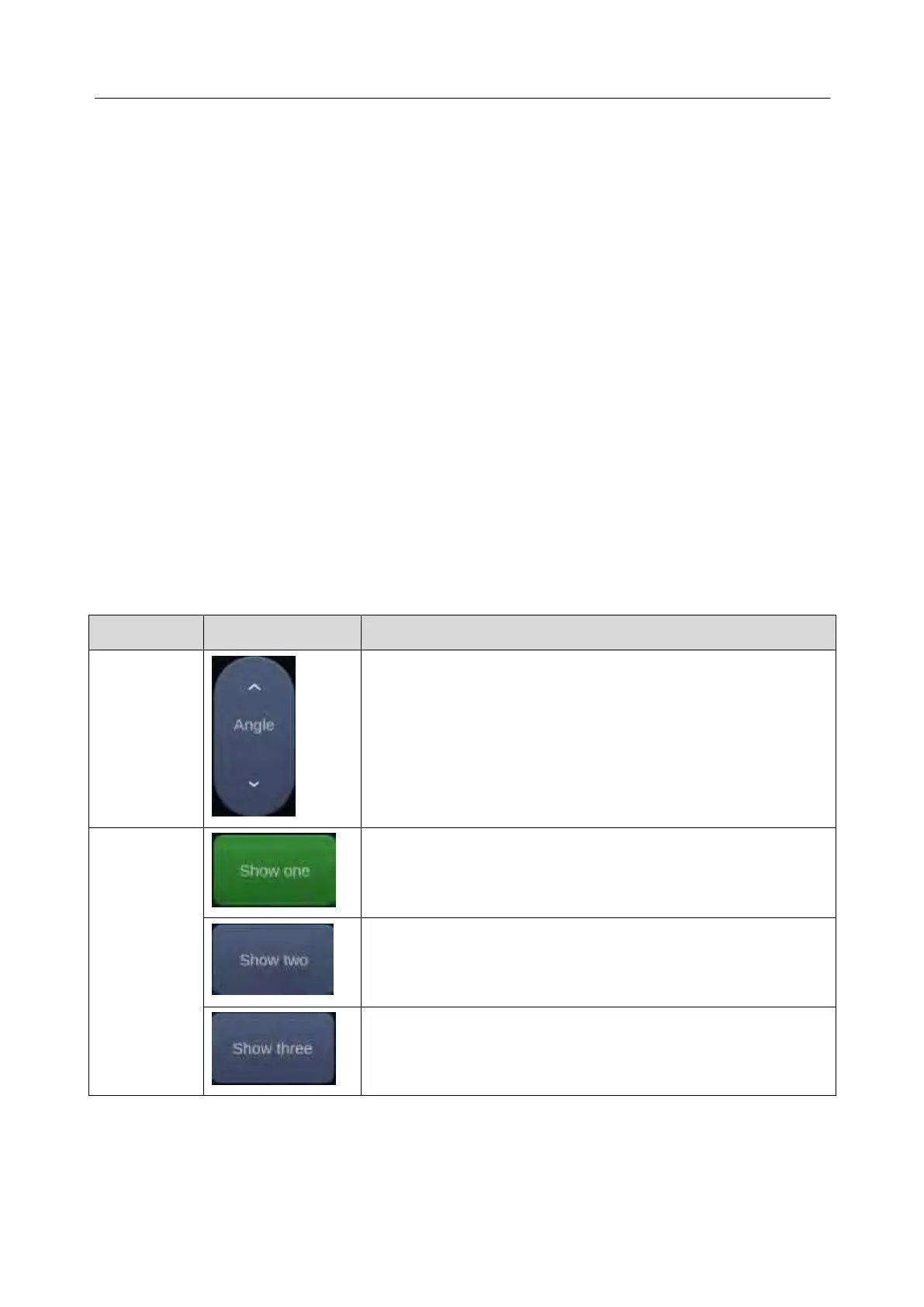

Table 5-6 Anatomic M Mode Touch Screen Controls
