Acclarix LX9 Series Diagnostic Ultrasound System User Manual

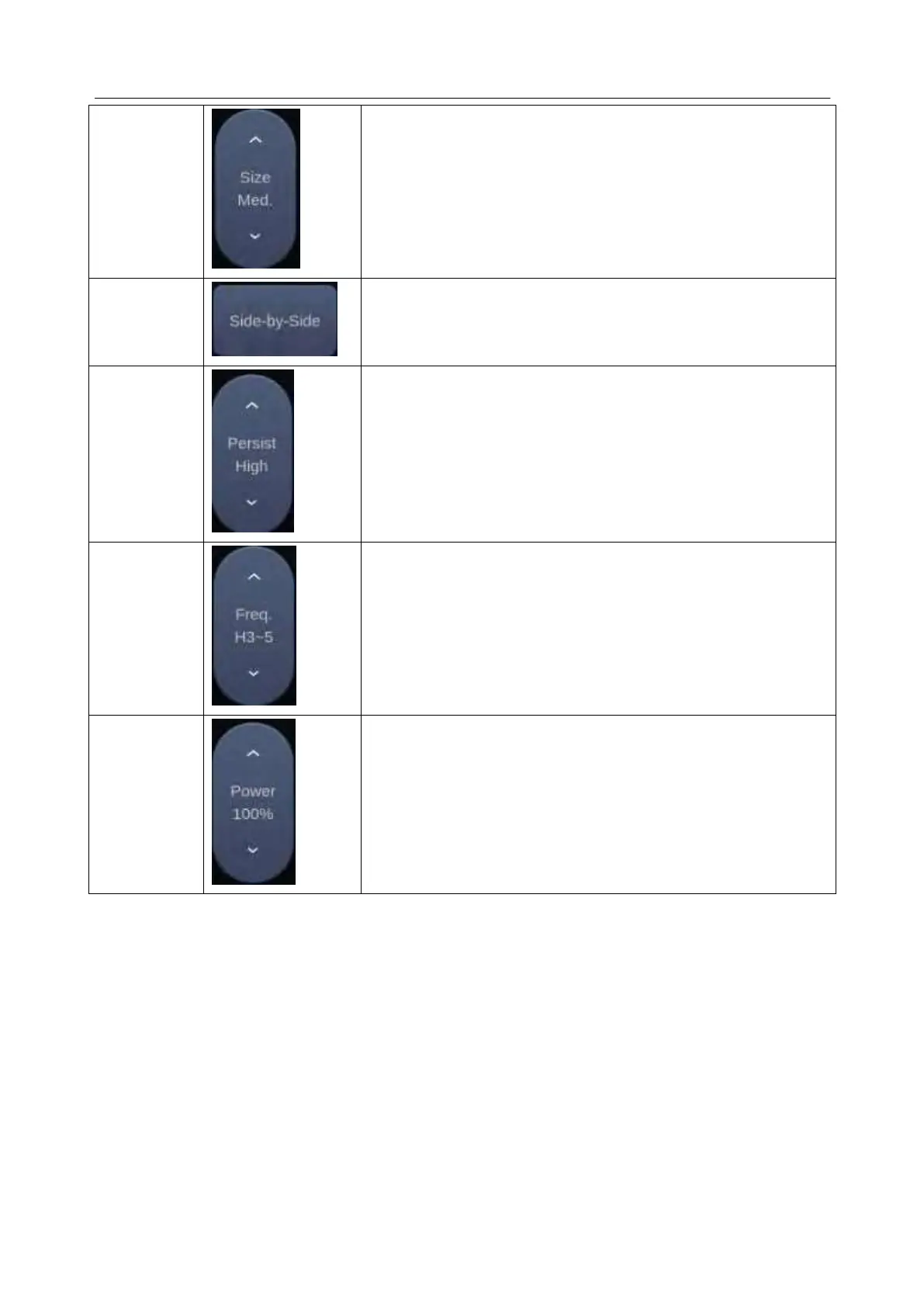

Changes the relative size of the M-mode strip compared to the
reference image. Full, Large, Med and Small are available.
This is an on/off control. When On, the M-Mode strip is
displayed side-by-side with the B-mode image. When Off, the
M-Mode strip is displayed below the B-mode image
The line Persistence determines how many M-mode lines are
averaged together for the display (similar to persistence in B-
Mode). Off, Low, Med and High settings are available.
Frequency determines the transmit frequency used by M-Mode.
Upward presses increase the frequency. Downward presses
decrease the frequency.
Adjusts the acoustic output power of the activated transducer. It
is only available in live imaging. Higher acoustic power numbers
correspond to increased sensitivity and penetration in the
image, but ALARA principle should be followed in actual
situations.
Table 5-5 M-Mode Touch Screen Controls
