Setting a Default Body Mark for a Preset:
Select a Body Mark graphic from pre-defined graphics area and press Set Default, the Body
Mark graphic is set as a default Body Mark to the selected preset.
The default Body Mark can not be deleted from a preset until another Body Mark is selected as a
default one.
Change Order
1. Move the cursor to a Body Mark graphic in the pre-defined graphics area and press the <Set>
key to select the Body Mark.
2. Press"↑", "↓","←" and "→" arrows to move the Body Mark and adjust its sequence. .
General Settings:
Auto-erase Body Mark when the image is unfrozen: If this option is enabled, the Body Mark
will be erased when the image is unfrozen, otherwise the Body Mark will only be erased on
demand or at the start of a new exam.
10.5 Measure Set-up
Entering Measure screen:

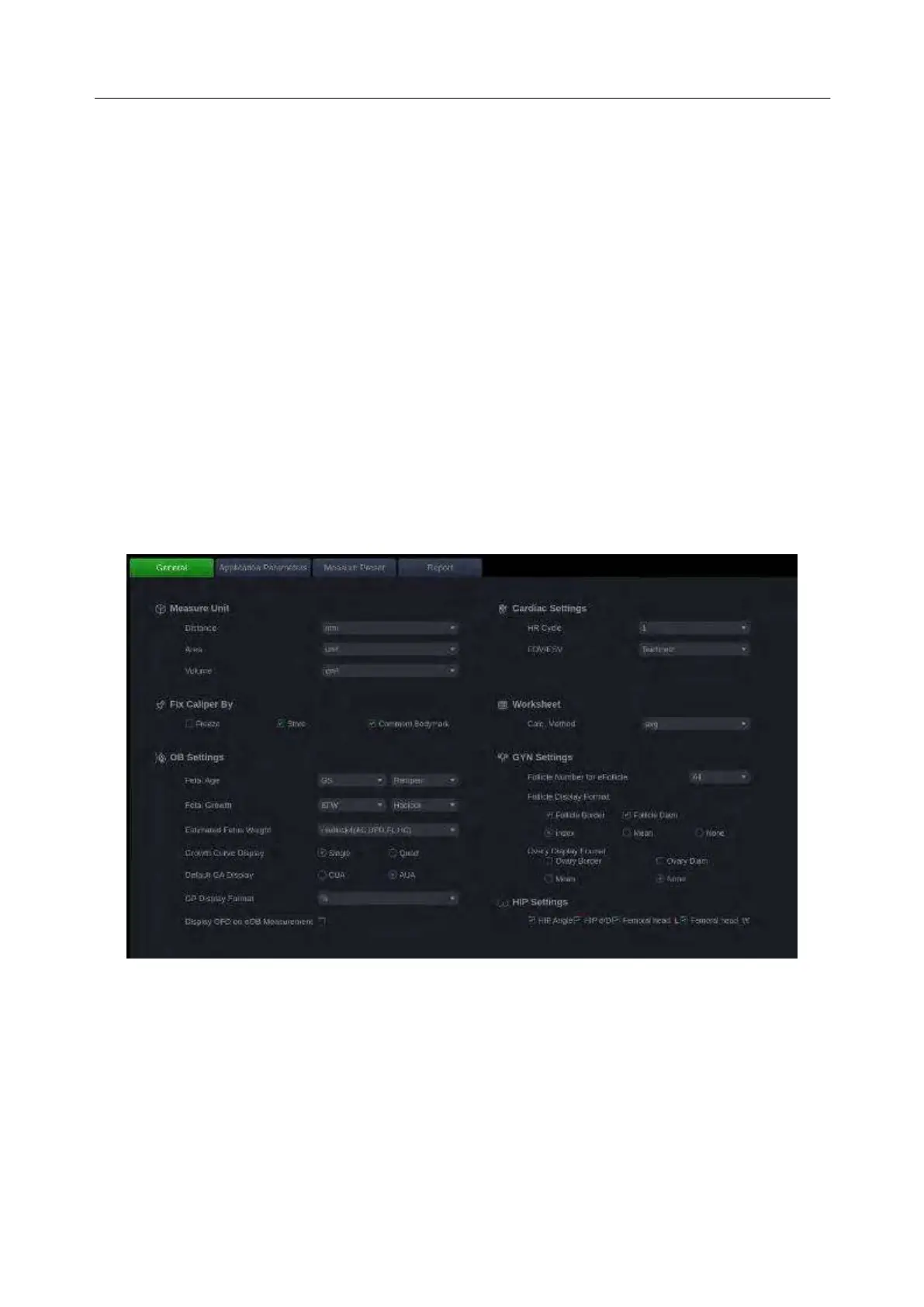

Press Utilities->Measure touchscreen buttons to access the Measure Set-up screen, as the
illustration figure shown below.
10.5.1. General Set-up
Measure Unit
The system supports following unit settings:
Distance: Set the default unit of distance measurement. "mm" and "cm" are available.
Area: Set the default unit of area measurement. "mm
2
" and "cm
2
" are available.
Volume: Set the default unit of volume measurement. "mm
3
" and "cm
3
" are available.
Cardiac Settings
The system supports following Cardiac measurement settings:
