5.9.4. 4D Volume Acquisition
In Pre-4D mode, select Skeleton or Surface first, adjust the VOI box and then press Start button on
the touch screen or the <Update> key to begin sweep.
5.9.5. 4D Live Volume
4D Live volume continuously sweeps and displays successive 3D volumes. As shown in figure below,
image in the left is A slice and image in the right is the live 3D volume rendering
5.9.6. 4D Cine

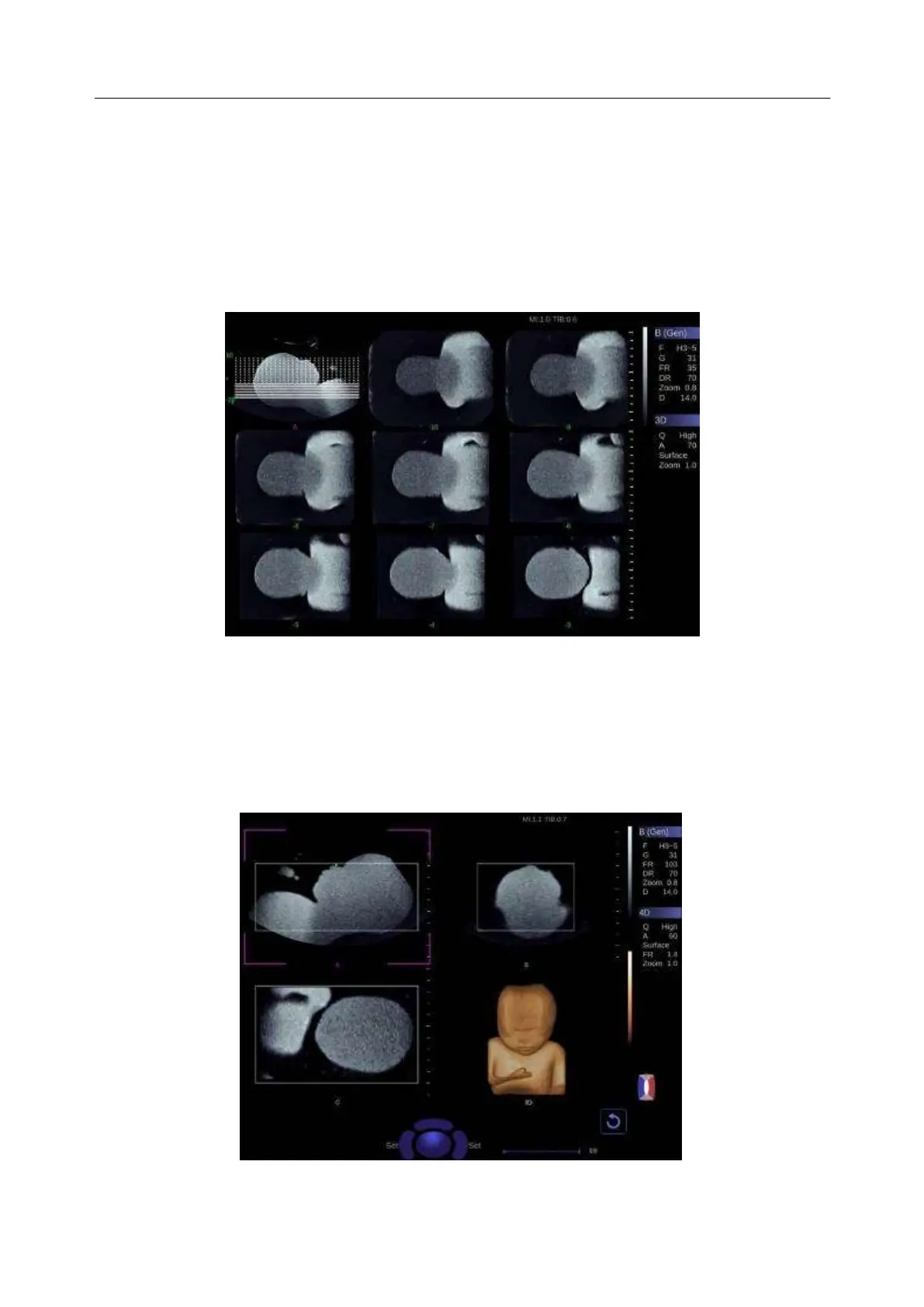

Figure 5-5 4D Volume Sweeping Image
During the process of 4D live volume imaging, press the <Freeze> button on the control panel to enter
the 4D cine mode. A cine replay scroll bar appears below the images. Use the buttons on the 4D cine
screen and roll the trackball to replay the images. For the selected frame, user can execute all
operations that are available in 3D review status. Press <Freeze> again to return to the live image.
Figure 5-6 4D Cine
