2.3 FLOW TREND
Click the device port on the panel port to view the port flow trends.

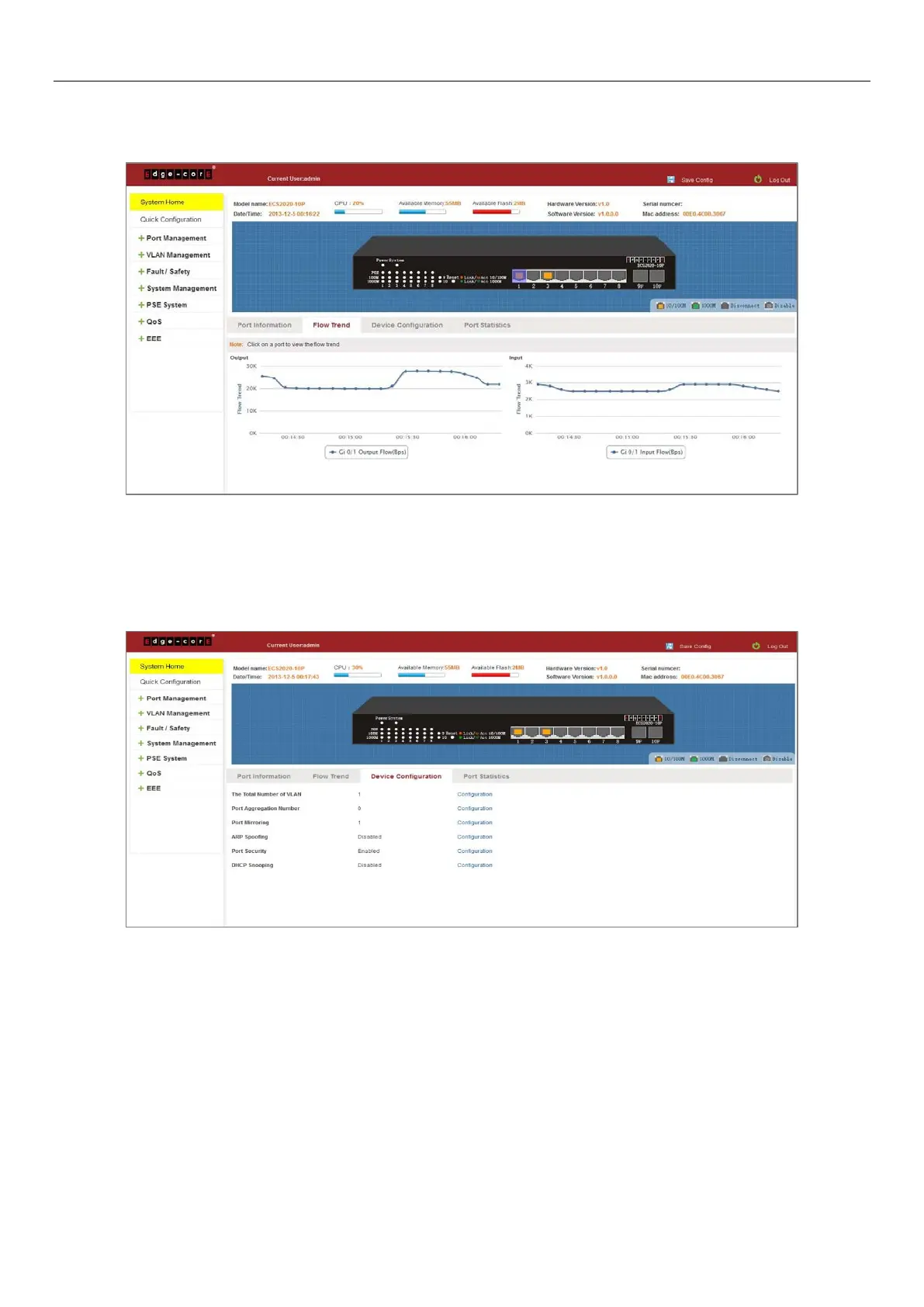

Figure 2-3: View the Flow Trend
2.4 DEVICE CONFIGURATION
Click "Device Configuration" to view and change the configuration of the device.
Figure 2-4: Device Configuration
Use "Device configuration" to configure the following modules:
1. Total number of VLANs
2. Port Aggregation Number
3. Port Mirroring
4. ARP Spoofing
5. Port Security
6. DHCP Snooping
