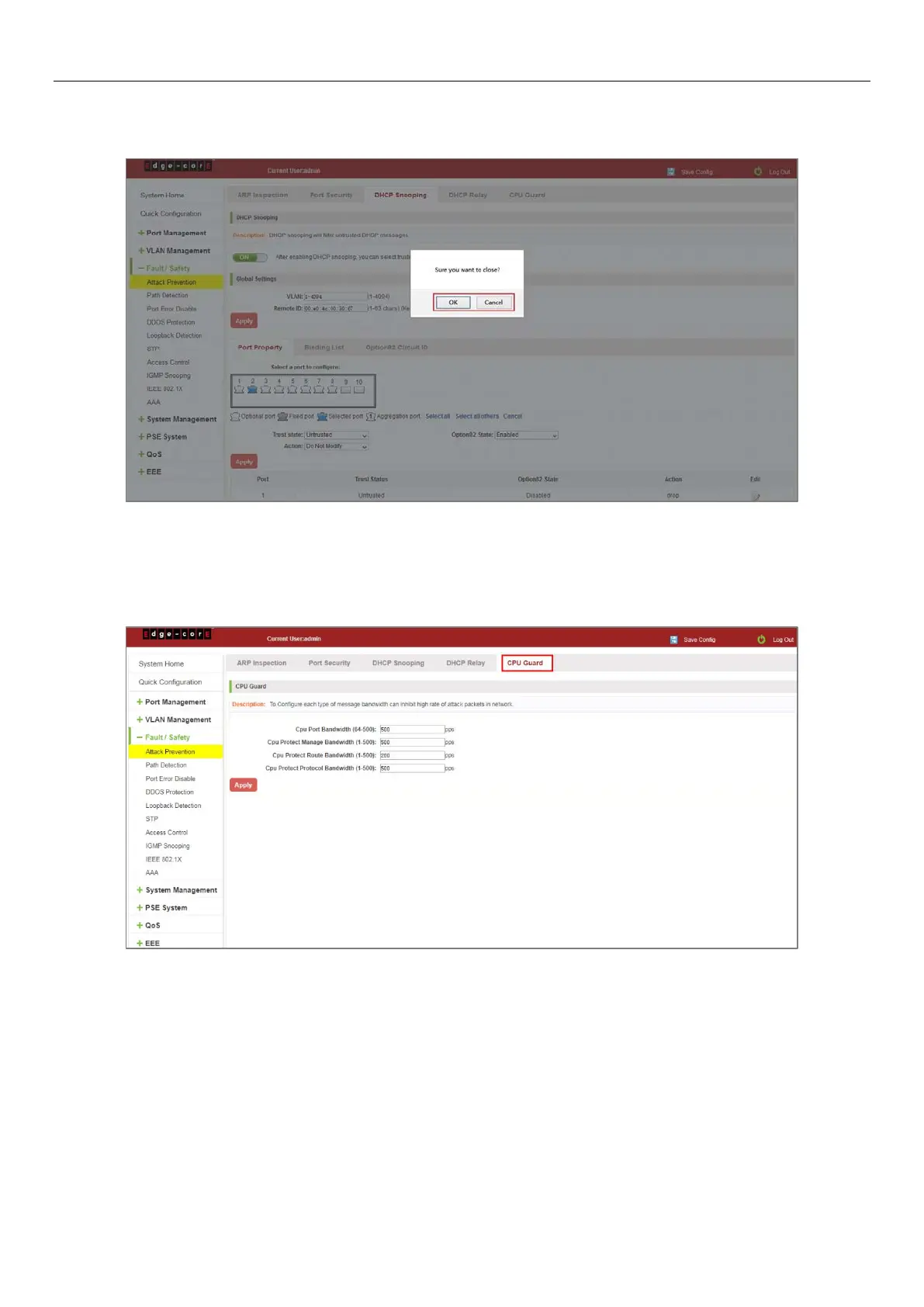

Click the "ON" button, will prevent the
DHCP attack function off:
Figure 6-
14
:
O
ff
DHCP Snooping Function
6.1.4
C
P
U
G
u
a
r
d
Click the "Fault/Safety" "Attack preventi
on
" "
CPU Guard
",
the configuration information show the
CPU guard.
Figure 6-15
:
CPU Guard Information
45
47
Table of Contents
Default Chapter
2
Web Management Guide
2
About this Guide
3
Table of Contents
4
1 Web Management Landing Page
8
Log in to the Switch Management
8
2 System Home
9
Device Panel
9
Port Information
9
Flow Trend
10
Device Configuration
10
Port Statistics
11
3 Quick Configuration
11
Basic Setting
11
Vlan Setting
12
Port Mode
12
Snmp Configuration
13
4 Port Management
14
Basic Settings
14
Check the Port Configuration
14
Configuring Port Properties
15
Storm Control
15
Check the Port Settings Storm
15
Flow Control
17
Configuring Flow Control
18
Port Aggregation
19
Viewing Port Aggregation Configuration
19
Add Port Aggregation
20
Modifying Port Aggregation
21
Port Mirroring
21
Port Mirroring Configuration
21
Add Port Mirroring Group
22
To Modify the Port Mirroring Group
23
Delete a Port Mirroring Group
24
Port Isolation
25
Port Isolation Configuration
25
Configuring Port Isolation
25
Modify the Port Isolation
26
Port Speed Limit
27
View Port Rate Limit
27
Configure Port Access Rate
27
Remove the Port Speed Limit
28
5 Vlan Management
29
Check VLAN Configuration Information
29
Adding a VLAN
30
Remove VLAN
30
Editing VLAN
31
View Port Mode
33
Change the Port Mode Is Trunk
33
Change the Port Mode Is Hybrid
34
Voice Vlan
35
View Voice VLAN Information
35
Configure Voice VLAN Global
35
Configure Voice VLAN Port
36
Configure Voice VLAN OUI
36
Voice Device Address
37
Surveillance Vlan
37
View Surveillance VLAN Information
37
Configure Surveillance VLAN
38
MAC Settings and Surveillance Device
38
MAC Settings and Surveillance Device
39
6 Fault/Safety
40
Attack Prevention
40
ARP Snooping
40
Port Security
42
DHCP Snooping
43
CPU Guard
46
Path Detection
47
Path/Tracert Detection
47
Cable Detection
48
Port Error Disable
49
Ddos Protection
50
Loop Detection
51
Enable Loopback Detection
51
Choose the Port to Configure
52
Stp
52
Enable STP Function
53
STP Port Settings
53
Access Control
54
ACL Access Control List
54
Application ACL
57
Igmp Snooping
59
Mld
61
Ieee 802.1X
63
Aaa
65
Radius
65
Tacacs
67
7 System Management
69
System Settings
69
Management VLAN
69
System Restart
71
User Management
71
System Log
72
Log Export
73
ARP Table
73
MAC Management
74
Dhcp Server
78
DHCP Server Info
78
Enable the DHCP Server
78
System Upgrade
79
System Information
79
Memory Information
79
CPU Information
80
Configuration Management
80
Restore Factory Settings
83
Dual Configuration
83
Backup and Restore the Current Configuration File
83
Configuration Copy
86
Snmp
86
Check the SNMP
86
Activate the SNMP
87
To Disable the SNMP
87
Activate the TRAP
88
Disable the TRAP
88
Change Community
89
Added the SNMP TRAP Service Host
89
Delete the SNMP TRAP Service Host
90
Rmon
90
View ROMN Configure Information
90
Configure ROMN Type
91
Change ROMN Type
91
Delete the Configured Rule
92
Lldp Settings
93
Enable LLDP Settings
94
Lldp Port Set
94
Neighbor Info
94
Administration
95
Telnet Info
95
Enable the Telnet
96
Https
97
Ssh
98
8 Pse System Management
101
Pse System Configuration
101
View the PSE System Configuration
101
Configure Power Supply Mode
102
Poe Port Configuration
104
Editing POE Port
105
Poe Timer Configuration
105
9 Qos
107
Priority Schedule
107
View the Priority Schedule
107
The Configuration Global Settings of SP
107
The Configuration Global Settings of DSCP
110
Editing the DSCP Values
112
10 Eee
114
AZ EEE Settings
114
Active the EEE
114
