Port mirroring configuration steps are as follows:
Step 1: Select "Source Port",
Step 2: Select "Destination Port",
Step 3: select mirroring group,
Step 4: Click "Apply".
Configuration instructions:
1. On the switch can be configured 7 mirroring group.
2. Aggregated port mirroring can not be configured are shown in gray in the panel.
3. Has been selected port mirroring port, displayed in the faceplate is gray.
4. Aggregated port mirroring can not be configured are shown in gray in the panel.
5. Has been selected port mirroring port, displayed in the faceplate is gray.
4.5.3 To modify the port mirroring group
Select the group to modify, click on the action bar " " button. Modify the corresponding mirroring group.

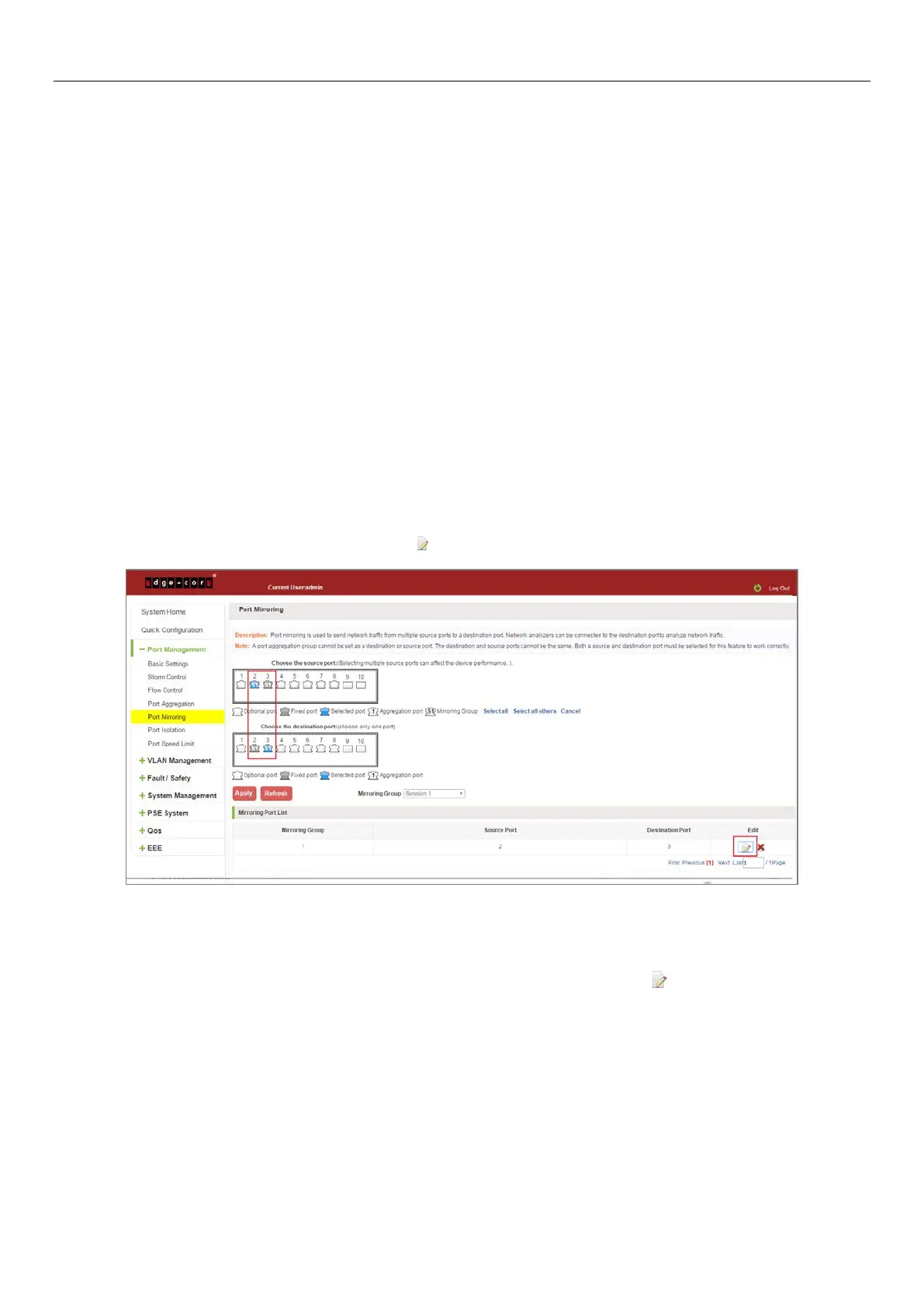

Figure 4-18: To Modify the Port Mirroring Group
Modify the port mirroring configuration steps are as follows:
Step 1: In the image you want to modify the operation of the group column, click on " ";
Step 2: Add or remove the corresponding port in the panel;
Step 3: Click "Apply".
