89
7.7.6 Change community
Click on the "System Management" "SNMP", in the community name text box input: public, permissions choice: read
and write, click the "OK" button, complete the configuration:

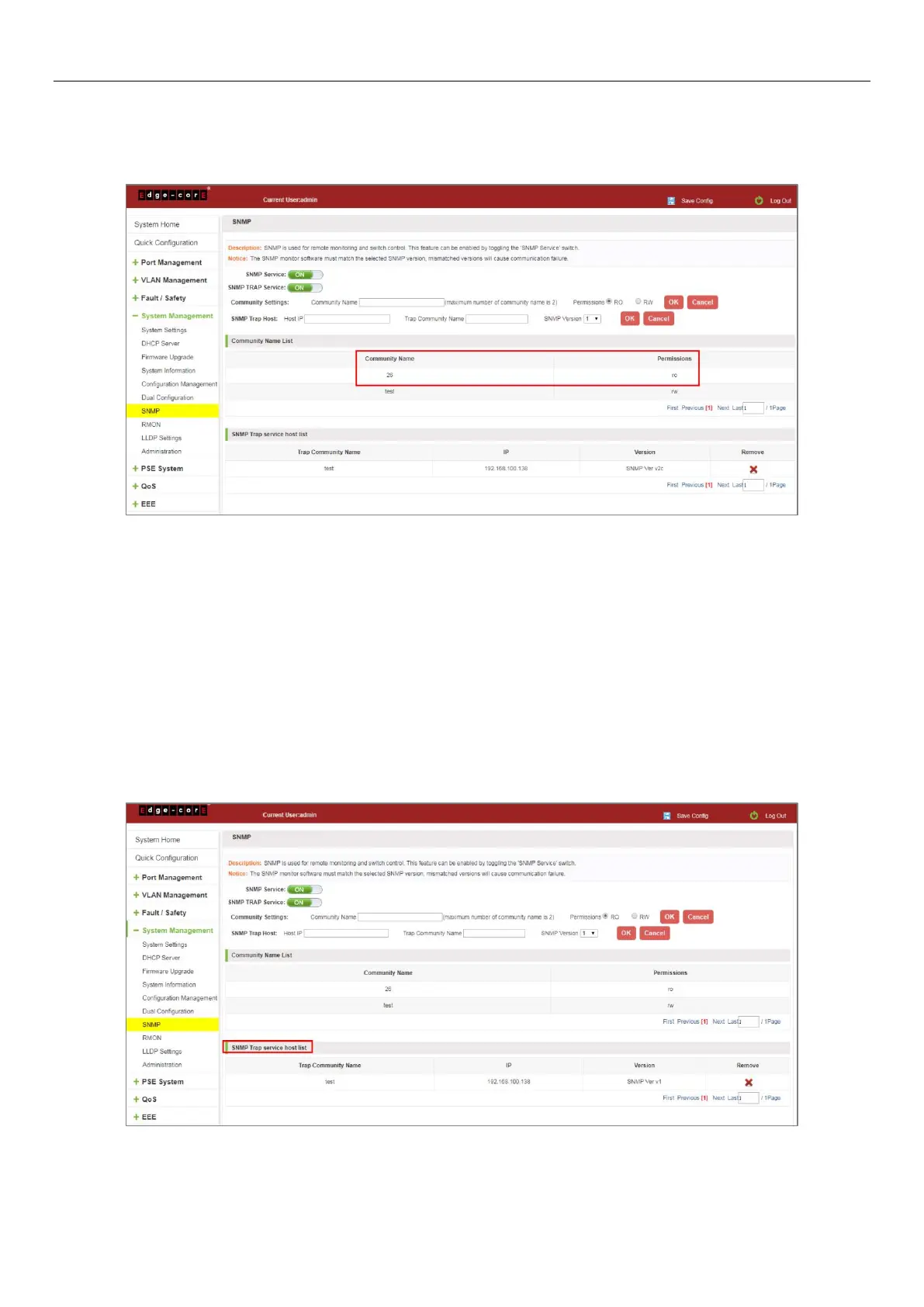

Figure 7-31: Change Community
Change community configuration steps are as follows:
Step 1: In the community name dialog box input: the pub;
Step 2: Select "RO" permissions;
Step 3: Click on "OK" button, complete the configuration.
7.7.7 Added the SNMP TRAP service host
Click on the "System Management" "SNMP", in the host IP text box input: 192.168.100.150, TRAP community name:
pub, SNMP version choice: 2C, click the "OK" button, complete the configuration:
Figure 7-32: Increases the SNMP TRAP Service Host
