Figure 4-15: Port Mirroring Configuration Information
In the Port Mirroring is a property list which shows the configuration of the current mirror switch:
Mirroring group: mirroring group ID, can be configured up to seven mirroring group;
Source Port: The port forwarding on the source data is mirrored to the destination port;
Destination port: mirror data sent to the destination port.
1. Port aggregation port can not be used as the destination port and source port;
2. Destination port and source port can not be the same;
3. Same group mirroring group can have only one destination port.
4.5.2 Add port mirroring group
On the panel, select "Source Port" and "Destination Port" add port mirroring group.

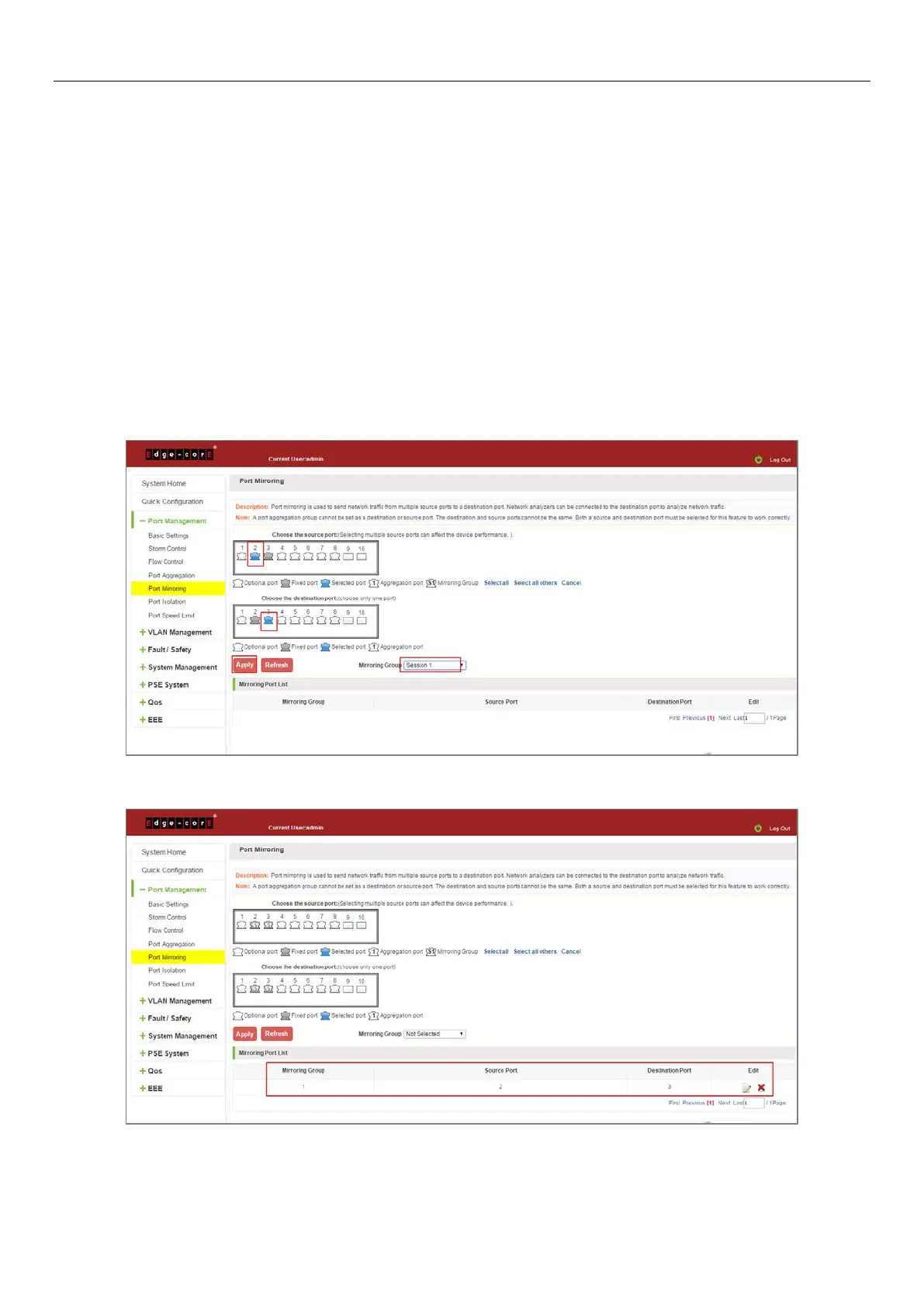

Figure 4-16: Add Port Mirroring Group
Figure 4-17: Add Port Mirroring Group Results
