104
Figure 8-4: Energy Saving Mode
To configure the switch PSE System steps as follows:
Step 1: In the power supply mode, choose energy saving mode;
Step 2: Click on "Apply Settings" button to complete the configuration
8.2 POE PORT CONFIGURATION
Click the "PSE System Management" "POE Port Configuration" to configure the POE port on the switch:

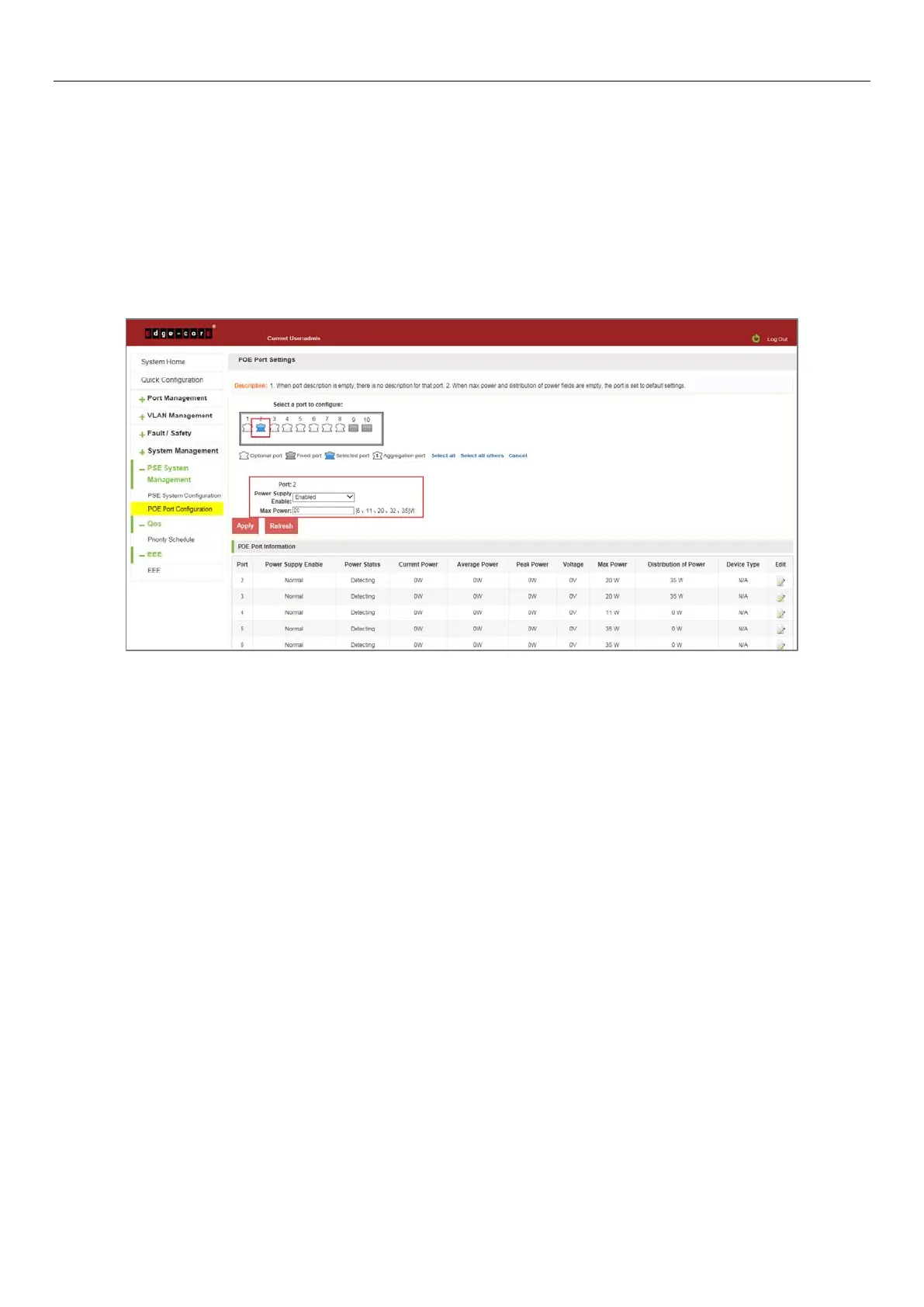

Figure 8-5: PoE Port Configuration
PoE Port configuration steps are as follows:
Step 1: Select a port to configure;
Step 2: In the power supply enable, choose enable.
Step 3: In the max power text, choose 20.
